No.120 MELT FLOW INDEX TESTERS
  (MFR, MFI, MVR, Flow Properties)

  • No.120-FWP MELT FLOW INDEX TESTER (MANUAL)
  • No.120-SAS MELT FLOW INDEX TESTER (SEMI-AUTOMATIC)
  • No.120-LABOT MELT FLOW INDEX TESTER (FULLY AUTOMATIC)

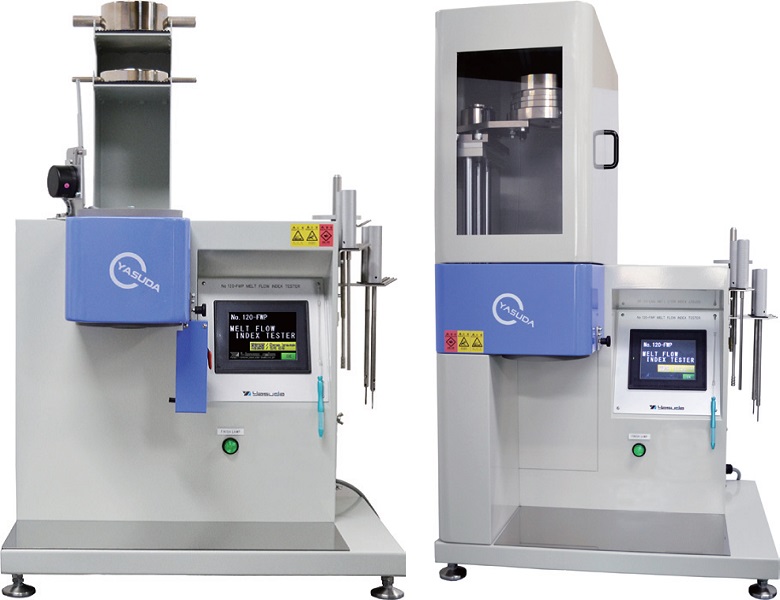

No.120-FWP MELT FLOW INDEX TESTER (MANUAL)

Related Test Standards: JIS K6719-1/2, K6921-2, K6922-2, K6923-1, K6924-1, K6926-2, K7210, ASTM D1238, ISO 1133

No.120-FWP MELT FLOW INDEX TESTER (MANUAL)
  • Manual Type, Selectable from FWP and FWP-W (Load Lifting/Lowering is Automatic)
  • ±0.3℃ Temp. Distribution from 10 to 70mm Above the Die as per ISO-1133-2
  • Accurate Reading in ±0.0018mm of the Piston Travel Distance.
  • Graph Display of the Temperature Transition in the Cylinder and MFR.
  • Sample Cut Off Timing is Guided Visually and Audibly (Method A).
  • MFR Value is Automatically Calculated and Displayed on the Touch Panel.
  • Rotary Encoder's Precision (Output Pulse) is Verifiable.
  • Easy Identification of Individual Tester by Setting Unit Number on the Software.

Specification

Model No.120-FWP MELT FLOW INDEX TESTER (MANUAL)
No.120-FWP-W MELT FLOW INDEX TESTER (Load Lifting/Lowering is Automatic)
Hanging 1 Hanging
Die φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm
Piston Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm
Cylinder Inner φ9.550 ± 0.007 mm, L160 mm
Temperature Range Max. 400 °C
Initial Weight 0.325 kgf
Additional Weight 1.20 〜 21.60 *Please refer to below
Test Method Method A: Manual (Option: Automatic Cutter)
Method B: Automatic
Data Processing Method A: Automatic (Measuring the weight of the cut off specimen is done by hand)
Method B: Automatic
Method B Measuring Rotary Encoder
Standard Specification SD Card Slot, LAN Port
Options Mini Printer, Method A Air Pressure Type Automatic Cutter, Manual Type Die Plug,
Safety Cover with Interlock Attached, Half Die,
Air Pressure Type Automatic Loader (No.120-FWP-W)
Additional Weight ( 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf.)
Accessories Cleaning Rod (Die & Cylinder), Injection Rod, Funnel, Die Gauge,
Method A Cutting Knife, Spirit Level, Gauze
Power Source AC 100 V, 1-Phase, 15 A, 50/60 Hz or
AC 200 V, 1-Phase, 10 A, 50/60 Hz
Air Source 0.5 MPa or More (For Method A Pneumatic Type Weight Loading Device Specification)
Dimensions / Weight
(approx.)
No.120FWP: W660 × D450 × H1,020 mm, 75 kg (W2.17 × D1.48 ×H3.35 ft, 165 lbs)
No.120FWP-W: W710 × D450 × H1,060 mm, 120 kg (W2.33 × D1.48 ×H3.48 ft, 265 lbs)

The specifications above are subject to change without notice.

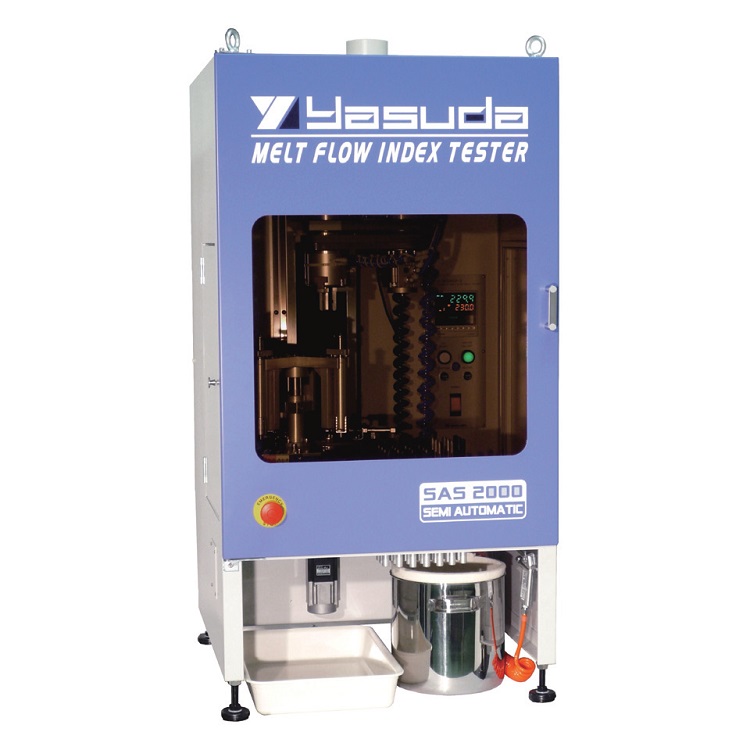

No.120-SAS MELT FLOW INDEX TESTER (SEMI-AUTOMATIC)

Related Test Standards: JIS K6719-1/2, K6921-2, K6922-2, K6923-1, K6924-1, K6926-2, K7210, ASTM D1238, ISO 1133

No.120-SAS MELT FLOW INDEX TESTER (SEMI-AUTOMATIC)
  • AUTOMATIC 1 CYCLE (Weight Change > Sample Injection > Testing > Measuring > Cleaning)
  • Automatic 1 Cycle takes 15 min. ONLY, Saving Time and Space.
  • Automatic Cleaning includes: Cleaning of Cylinders / Dies / Cleaning Rods.
  • HIGH REPEATABILITY by Eliminating Human Error of Cleaning, Injecting Power and Timing.
  • Functions and Sample Cups are Selectable.
  • MFR, MFI, MVR, Flow Properties are available.

Specification

Model No.120-SAS MELT FLOW INDEX TESTER (SEMI-AUTOMATIC)
Hanging 1 or 3 Hangings (2 kinds)
Die φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm
Piston Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm
Cylinder Inner φ9.550 ± 0.007 mm, L160 mm
Temperature Range Max. 300 °C (Option: Max. 400 °C)
Initial Weight 0.325 kgf
Additional Weight 1.20 〜 21.60 *Please refer to below
Test Method Method A: Manual (Option: Automatic Cutter)
Method B: Automatic
Specimen Feeding Automatic
Weight Loading Automatic
Weight Change Manual (Option: Automatic)
Cylinder Cleaning Automatic *Solvent Cleaning is also Automatic
Die Cleaning Automatic
Piston Cleaning Manual (Option: Automatic)
Die Cleaning Rod' Cleaning Manual (Option: Automatic)
Cleaning Gauze Feeding Manual
Data Processing Method A: Manual (Option: Automatic Cutter)
Method B: Automatic
Method B Measuring Rotary Encoder
Software Windows Compatible
Accessories Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder,
Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun
Options Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor,
Temperature Calibration Device, Exhaust Fan (Standard for No.120-LABOT),
Smoke-Detection Sensor (Standard for No.120-LABOT)
Additional Weight ( 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf.)
Power Source AC 200 V, 1-Phase, 10 A, 50/60 Hz
AC 200 V, 1-Phase, 15 A, 50/60 Hz (ISO 1133-2 Compatable Type)
Air Source 0.5 MPa or More
Dimensions / Weight
(approx.)
1 Hanging: W675 × D645 × H1,370 mm, 200 kg (W2.22 × D2.12 ×H4.50 ft, 441 lbs)
3 Hangings: W675 × D725 × H1,370 mm, 220 kg (W2.22 × D2.38 ×H4.50 ft, 485 lbs)

The specifications above are subject to change without notice.

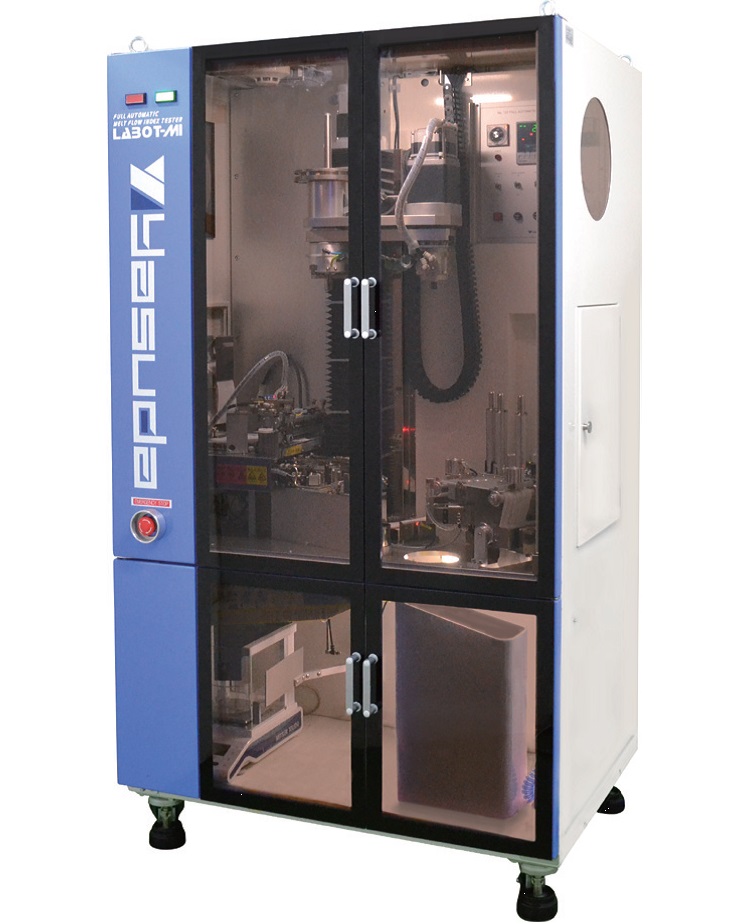

No.120-LABOT MELT FLOW INDEX TESTER (FULLY AUTOMATIC)

Related Test Standards: JIS K6719-1/2, K6921-2, K6922-2, K6923-1, K6924-1, K6926-2, K7210, ASTM D1238, ISO 1133

No.120-LABOT MELT FLOW INDEX TESTER (FULLY AUTOMATIC)
  • FULLY AUTOMATIC CYCLE (Weight Change > Sample Injection > Testing > Measuring > Cleaning)
  • MAX 50 SAMPLE CUPS / 12.5 HOURS Automatic Cycle, Saving Time and Space.
  • Automatic Cleaning includes: Cleaning of Cylinders / Dies / Cleaning Rods.
  • HIGH REPEATABILITY by Eliminating Human Error of Cleaning, Injecting Power and Timing.
  • Functions and Sample Cups are Selectable.
  • MFR, MFI, MVR, Flow Properties are available.


Examples of Use

1 CYCLE/SAMPLE = 15 MIN.
12 Hangings (Sample Cups)
AM: 12 Samples x 15 min = 3 Hours
+
PM: 12 Samples x 15 min = 3 Hours
+
Night Mode *Set before going home: 12 Samples x 15 min = 3 Hours

36 Samples / 9 Hours per Day !


24 Hangings (Sample Cups)
AM: 12 Samples x 15 min = 6 Hours
+
PM: 12 Samples x 15 min = 6 Hours
+
Night Mode *Set before going home: 24 Samples x 15 min = 6 Hours

72 Samples / 18 Hours per Day !


50 Hangings (Sample Cups)
50 Samples x 15 min = 12.5 Hours
(96 Samples x 15 min = 24 Hours)

Best Solution for a 24 Hours Test Lab !

Specification

Hanging (Sample Cup) 12 or 24 or 50 Hangings (3 kinds)
Die φ2.095 ± 0.005 mm, L8.000 ± 0.025 mm
Piston Head Diameter φ9.474 ± 0.007 mm, Head Length L6.35 ± 0.10 mm
Cylinder Inner φ9.550 ± 0.007 mm, L160 mm
Temperature Range Max. 300 °C (Option: Max. 400 °C)
Initial Weight 0.325 kgf
Additional Weight 1.20 〜 21.60 *Please refer to below
Test Method Method A: Manual (Option: Automatic Cutter)
Method B: Automatic
Specimen Feeding Automatic
Weight Loading Automatic
Weight Change Manual (Option: Automatic)
Cylinder Cleaning Automatic *Solvent Cleaning is also Automatic
Die Cleaning Automatic
Piston Cleaning Automatic
Die Cleaning Rod' Cleaning Automatic
Cleaning Gauze Feeding Automatic
Data Processing Method A: Manual (Option: Automatic Cutter)
Method B: Automatic
Method B Measuring Rotary Encoder
Software Windows Compatible
Accessories Cleaning Rod (Die, Cylinder), Solvent Cleaning Device, Specimen Cup, Cup Holder,
Infundibulum, Die Gauge, Spirit Level, Dust Box, Gauze, Air Gun
Options Hastelloy Spec, Specimen Purging Device, Specimen Drying Device, Air Compressor,
Temperature Calibration Device, Exhaust Fan, Smoke-Detection Sensor
Additional Weight ( 1.20, 2.16, 3.80, 5.00, 10.00, 21.60 kgf.)
Power Source AC 200 V, 1-Phase, 10 A, 50/60 Hz
AC 200 V, 1-Phase, 15 A, 50/60 Hz (ISO 1133-2 Compatable Type)
Air Source 0.5 MPa or More
Dimensions / Weight
(approx.)
12 or 24 Hangings: W950 × D680 × H1,720 mm, 350 kg (W3.12 × D2.23 ×H4.50 ft, 772 lbs)
50 Hangings: W1,100× D700 × H1,750 mm, 400 kg (W3.61 × D2.30 ×H5.74 ft, 882 lbs)

The specifications above are subject to change without notice.

PRODUCTS

  • WEATHERING, CORROSION, AND OPTICAL PROPERTIES
    • Products
    • Weather Meters
      • Super Xenon Weather Meters
      • Xenon Weather Meters
      • Metaling Weather Meters
      • Sunshine Weather Meters
      • Fluorescent Weather Meter FUV
      • UV Fade Meters
      • Spectral Radiation Tester SPX
    • Light Sources
      • 7.5kW Xenon lamp & Sunlight
      • 3kW Metaling Lamp
      • Sunshine Carbon Arc
      • UV Fluorescent Lamp
      • UV Carbon Arc
    • Corrosion Test Chambers
      • Salt Spray Test Chambers
      • CASS Test Chambers
      • Combined Cyclic(CYP)
      • Combined Cyclic(CCT)
      • Custom Test Chambers
      • Options for Corrosion Test Chambers
    • Other Test Chambers
      • Gas Corrosion Test Chambers
      • Ozone Weather Meters
      • Fogging Testers
      • Dust Test Equipment
      • Rain Test Equipment
      • Gravel Test Equipment
      • Abrasion Test Equipment
      • Flammability Test Chambers
    • Optical Property Meters
      • Color Meters
      • Gloss Meters
      • Haze Meters
        • HZ-V3(DISCONTINUED)
        • HZ-V4 (NEW)
      • Image Clarity Meters
      • Reflectance /
        Transmittance Meters and Others
  • EMC EMISSION & IMMUNITY
    • Products
    • ESD simulator
      • ESD Simulator(ESS-S3011A+GT-30RA)
        IEC 61000-4-2 Ed.2 Test Standard
      • ESD Simulator(ESS-PS1+GT-31S) (NEW)
        IEC 61000-4-2 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-S3011A+GT-30RB)
        IEC 61000-4-2 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-S3011A+GT-30R3302KA)
        ISO 10605 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-PS1+GT-31S+ISO-SET-A) (NEW)
        ISO 10605 Ed.2/Ed.3 Test Standard
    • ESD voltage meter (New)
    • Fast Transient Burst Simulators
    • Impulse Noise Simulator
    • Lightning Surge Simulator
    • Lightning Surge Simulator for
      EV fast charging
    • New ISO 7637 Standard Automotive Transient Surge Simulator
    • High Voltage Noise
    • Field Decay Load Dump
    • TEM Horn Antenna
    • Thin Plate Broadband Antenna
      • Thin Plate Broadband Antenna(NKU07M32G/NKU2460G)
      • Thin Plate Broadband Antenna(NKU5080G) (NEW)
    • Electromagnetic Field Visualization System
  • DROP & SHOCK
    • Products
    • Drop Test Systems
      • DT-202 series
      • DT-205 series
      • DT-20e
      • RDT-1000
      • EMH series
    • Shock Test Systems
      • PDST series
      • HDST series
      • ASQ series
      • MDST series
      • SDST series
      • PST-300
      • CDS series
      • Accessories
    • Material Testing System
      • ACST series
    • Acceleration Measurement
      • SM-500
      • AccStick
    • Field Data Recorder
      • DER-1000
  • VIBRATION
    • Products
    • Basics of Vibration Testing
    • Multi-Axis Vibration Test Systems
    • Single-Axis Vibration Test Systems
    • Vibration Combined Environmental Test Systems
    • Digital Vibration Controller
  • BALL BEARINGS
    • Products
    • Stainless Steel Ball bearing by AFC bearings
    • AISI 440C Stainless Steel Ball Bearings
    • AISI 304 Stainless Steel Ball Bearings
    • AISI 630 Stainless Steel Ball Bearings
    • 2C Series - Ceramic Bearings
    • Grease Free Bearings
    • 1T Series - Pure Titanium Bearings
    • SH series - Stainless Ball Bearing with Aligning Ring
    • SSXC Series - Stainless steel ball bearings with setscrews
    • SF series - AISI440C Flanged Bearing Units
  • MECHANICAL & PHYSICAL
    PROPERTY OF MATERIALS
    • Products
    • By Test Applications
      • Plastic / Resin / Rubber
    • By Test Properties
  • TEMPERATURE SENSING
    • Products
    • Temperature Probes
      • Stationary Surface Temperature Probes
        • SX Series
        • AX Series
        • WE Series
      • Moving/Rotating Surface Temperature Probes
        • U Series
      • Moving Wire / Tube Probe
      • Liquid / Semiliquid Probes (Needle type)
      • Special Application Temperature Probes
        • AW Series(for Wafer)
    • Thermometers
      • Handheld Thermometer Model HR series
      • Handheld Thermometer
      • Thermoprinter
      • Thermologger
        • Thermologger AM-8000
        • Thermologger AM-9000
      • Transducer (Transmitter) HPD Series
      • Non-contact thermometer
      • Soldering iron thermometer
      • Fiber optic thermometer
    • Application
    • Accessories
    • Technical Guide
    • FAQ
  • ENERGY DISPERSIVE X-RAY FLUORESCENCE ANALYZERS
    • Products
    • VoXER
    • OURSTEX 170
    • OURSTEX 101FA
    • OURSTEX 100FA
    • OURSTEX 100TA-F
    • OURSTEX 200TX
    • OURSTEX 160
    • OURSTEX 160RoHS
    • OURSTEX 160M
  • NO-DOOR ENVIRONMENTAL CHAMBERS
    • LST Series
  • ENVIRONMENTAL &
    THERMAL SHOCK CHAMBERS
    • Products
    • Temperature and Humidity
    • Thermal Shock
    • Compact Temperature and Humidity
  • HUMIDITY, PARTICLE, AND
    GAS SENSING
    • Products
    • Humidity Sensing
      • humidity Sensors
      • humidity and Temperature
      • Thermo-hygrometer/Recorder
      • Temperature humidity converter
      • TDLAS Moisture Analyzers
      • Humidity Generators
    • Particle Sensing
      • Particle Sensor Unit
      • Particle Sensing Monitor
      • Pollen Sensor
    • IAQ Sensing
      • Handheld Odor Meter
  • CONTRACT TEST SERVICE

  • SUGA
  • NOISEKEN
  • SHINYEI
  • VIBRATION
  • BALL BEARING
  • YASUDA
  • ANRITSU
  • OURSTEX
  • ETAC
sca Shinyei Corporation of America

Head Office
1120 Avenue of the Americas,
4th Floor NewYork, NY 10036
TEL:917-484-7884 / FAX: 212-704-4206

CONTACT US
sca Shinyei Corporation of America

Mexico Liaison Office
Blvd. Bernardo Quintana No.7001,
Q7001 Torre 1 - Int. 808,
Col. Centro Sur, C.P. 76090,
Queretaro, QRO, Mexico
TEL:442-229-0767

CONTACT US
© 2018 Shinyei Corp. of America All rights reserved.
