AX Series
The Best Balance in Accuracy, Quality and Cost for Flat Stationary Surface.

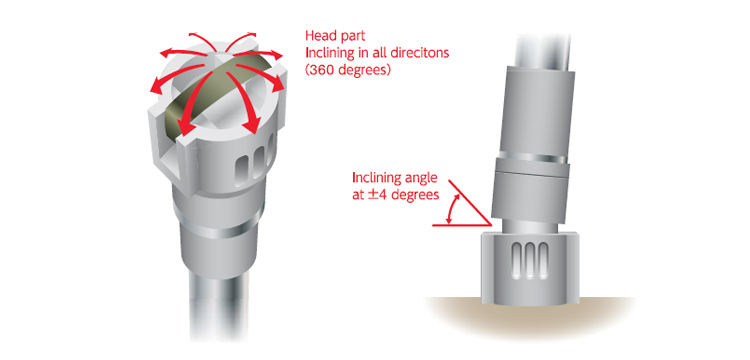

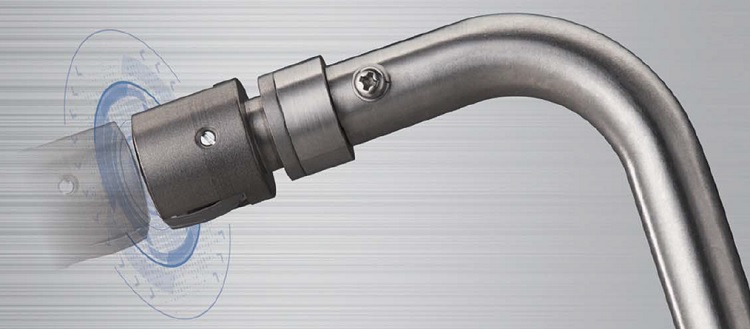

The 360 ±4 degrees flexible head* of handheld stabilizing function to keep closest contact to an object at any angles, achieving both accuracy and repeatability. Upgraded model of A series.
*Patented in Japan

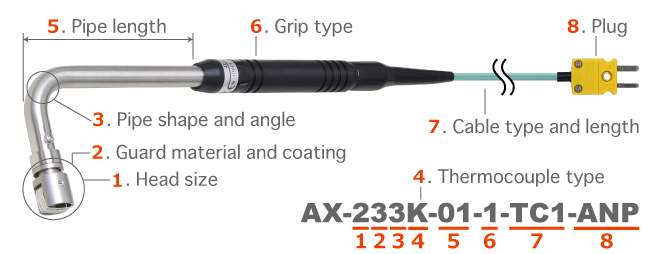

Model number
① Head Size
-
-
2
for general purpose use
-
-
3
for measuring objects that have a small capacity
② Guard material and coating
-
-
1
Temp. Range：-50 to 300°C
Teflon guard
-
-
2
Temp. Range：-50 to 400°C
Polyimide guard
-
-
3
Temp. Range：-50 to 500°C
Stainless steel guard
-
-
4
Temp. Range：-50 to 800°C
Stainless steel guard for High Temp
-
-
5
Temp. Range：-50 to 200°C
Teflon guard contact plate coating
-
-
6
Temp. Range：-50 to 300°C
Polyimide guard contact plate coating
③ Pipe angle
-
-
1
Straight
-
-
2
45 degrees
The longer direction of the contact strip is parallel to the pipe
-
-
3
90 degree
The longer direction of the contact strip is parallel to the pipe
-
-
4
90 degrees (elbow)
The longer direction of the contact strip is parallel to the pipe
-
-
5
45 degrees
Contact strip direction of right angle
-
-
6
90 degree
Contact strip direction of right angle
-
-
7
90 degrees (elbow)
Contact strip direction of right angle
④ Thermocouple Type
***Select the same thermocouple type as thermometer.
K(Chromel - Constantan) or E(Chromel - Alumel)
⑤ Pipe length
 |
00 | 30 mm |
| 01 | 100 mm | |
| 02 | 200 mm | |
| 03 | 300 mm | |
| 04 | 400 mm | |
| 05 | 500 mm | |
| 06 | 600 mm | |
| 07 | 700 mm | |
| 08 | 800 mm | |
| 09 | 900 mm | |
| 10 | 1000 mm |

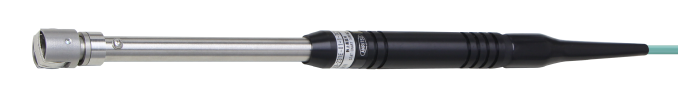

⑥ Grip type
1Standard grip
⑦ Cable type and length
***Standard is TC1. Available different type and length as needed.
TC Sheath material silicone rubber, Outer diameter φ4mm, Heat resistant 240°C
1 1m
⑧ Plug type
-
- ASP : Standard plug
-
- ANP : Miniature plug
-
- W : Without Plug
-
- WT3, WT4, WT5 : Spade terminal φ3mm, φ4mm, φ5mm
-
- WC3, WC4, WC5 : Ring terminal φ3mm, φ4mm, φ5mm
-
- ANJY3,ANJY4 : Spade terminal φ3mm, φ4mm (made of thermocouple)
-
- ANJC3,ANJC4 : Ring terminal φ3mm, φ4mm (made of thermocouple)
-
- Ring terminal : Sheathed banana plugs
