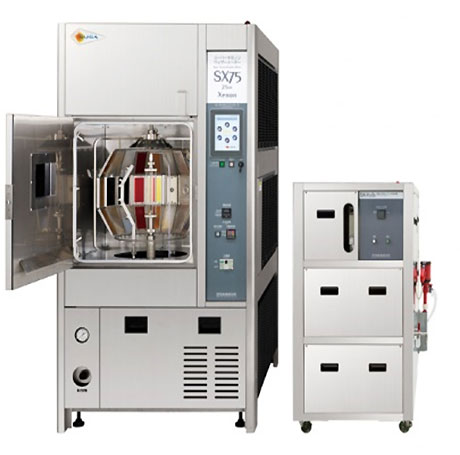

Super Xenon Weather Meter SX75

  • 7.5kW Water-cooled Xenon Arc Lamp of Long Life
  • Max. Irradiation: 180W/m2 at 300 to 400nm
  • Specimen Capacity: 51 pcs(150x70x1mm each)
  • Light Test:BPT50~95±1℃, Hum.50~60±5%rh(at BPT63℃, 180Wm2)
  • Dark Test:CAT38±1℃, Hum.95±5%rh
  • Spray on both faces (Rain & Dew) is available
  • Refrigeration System is equipped as standard for consistent control.
  • Radiometer for Automatic Irradiance Calibration is included as standard.
  • Wide variety of options and customization is available.

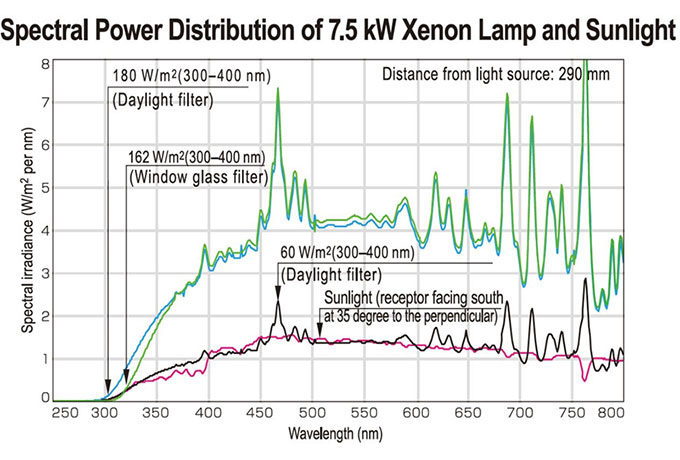

Xenon Arc Lamp
Super Xenon Weather Meter SX75 Super Xenon Weather Meter SX75

Super Xenon Weather Meter SX120

  • 12kW Water-cooled Xenon Arc Lamp of Long Life
  • Max. Irradiation: 160W/m2 at 300 to 400nm
  • Specimen Capacity: 105 pcs(150x70x1mm each)
  • Light Test:BPT63~95±1℃, Hum.40~60±5%rh (at BPT63℃,180Wm2)
  • Dark Test:CAT38±1℃, Hum.95±5%rh
  • Spray on both faces (Rain & Dew) is available
  • Refrigeration System is equipped as standard for consistent control.
  • Radiometer for Automatic Irradiance Calibration is included as standard.
  • Wide variety of options and customization is available.
Xenon Arc Lamp
Super Xenon Weather Meter SX120

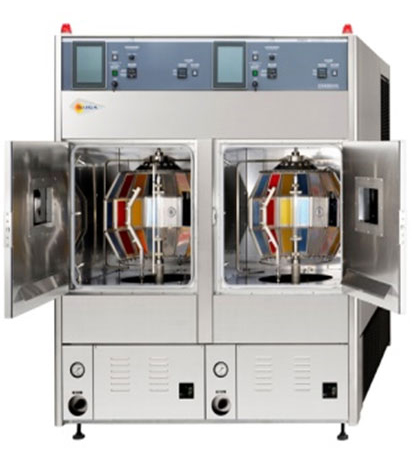

Super Xenon Weather Meter SX75-2D

  • 7.5kW Water-cooled Xenon Arc Lamp of Long Life
  • Two Independent Chambers to save time.
  • Max. Irradiation: 180W/m2 at 300 to 400nm
  • Specimen Capacity: 102 pcs(150x70x1mm each)
  • Light Test: BPT50~95±1℃,Hum.50~60±5%rh(at BPT63℃,180Wm2)
  • Dark Test: CAT38±1℃, Hum.95±5%rh
  • Spray on both faces (Rain & Dew) is available
  • Refrigeration System is equipped as standard for consistent control.
  • Radiometer for Automatic Irradiance Calibration is included as standard.
  • Wide variety of options and customization is available.
    *Available MV-SX-2D in combination of Xenon Arc Lamp + Metal Halide Lamp.
Xenon Arc Lamp
Super Xenon Weather Meter SX75-2D

Super Xenon Weather Meter SX-H2O2(with Hydrogen Peroxide)

  • 7.5kW Water-cooled Xenon Arc Lamp of Long Life
  • Hydrogen Peroxide Solution Spray Feeding Device is equipped as standard.

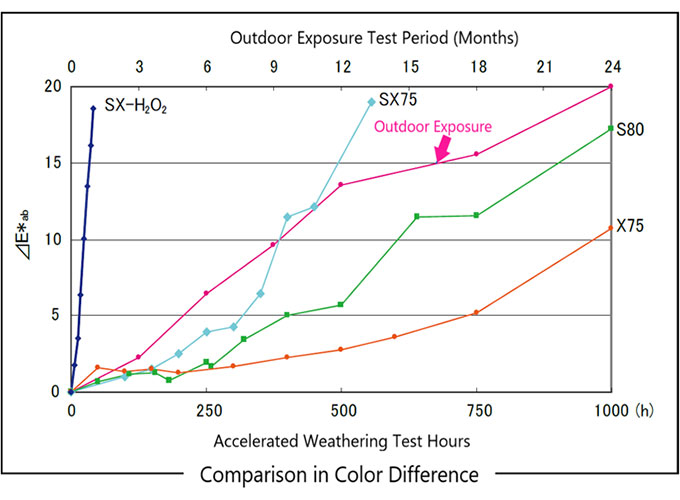

  • Acceleration factor on paint is aprrox.100 times or higher compared to outdoor.
  • Max. Irradiation: 180W/m2 at 300 to 400nm
  • Specimen Capacity: 51 pcs(150x70x1mm each)
  • Light Test: BPT50~95±1℃, Hum.50~60±5%rh(at BPT63℃, 180Wm2)
  • Dark Test: CAT38±1℃, Hum.95±5%rh
  • Spray on both faces (Rain & Dew) is available
  • Refrigeration System is equipped as standard for consistent control.
  • Radiometer for Automatic Irradiance Calibration is included as standard.
  • Wide variety of options and customization is available.
Xenon Arc Lamp
Super Xenon Weather Meter SX-H2O2(with Hydrogen Peroxide) Super Xenon Weather Meter SX-H2O2(with Hydrogen Peroxide) Super Xenon Weather Meter SX-H2O2(with Hydrogen Peroxide)

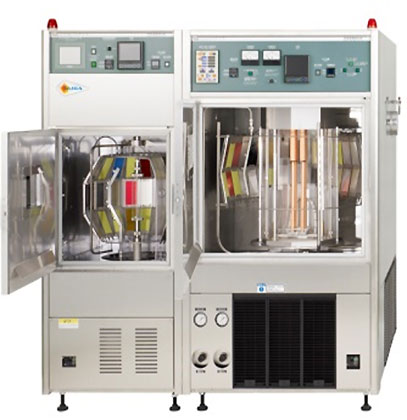

Super Xenon Weather Meter / Sunshine Weather Meter SX-S80-2D

  • Two Independent chambers in combination of Xenon Arc Lamp & Sunshine Carbon Arc.
  • Wide variety of options and customization is available.
Super Xenon Weather Meter / Sunshine Weather Meter SX-S80-2D

Standard Features

Name Super Xenon Weather Meter
Model SX75 SX120 SX75-2D
Light Source 7.5kW Water-
cooled Xenon Arc Lamp (WX7.5)		 7.5kW Water-
cooled Xenon Arc Lamp (WX12.0)		 7.5kW Water-
cooled Xenon Arc Lamp (WX7.5)
Light Source Qty. 1 2 2
Test Item Light 〇 〇 〇
Light + Spray on front face (Rain) 〇 〇 〇
Dark 〇 〇 〇
Dark + Spray on front face 〇 〇 〇
Dark + Spray on back face (Dew) 〇 〇 〇
Dark + Spray on both faces 〇 〇 〇
Irradiance Wavelength 300 to 400nm *with daylight filter 60~180W/m2 40~160W/m2 60~180W/m2
Temperature /
Humidity Range		 Light BPT
*depends on the test condition		 50~95±1℃ 63~95±1℃ 50~95±1℃
Humidity
*depends on the test condition		 50~60±5%rh 40~60±5%rh 50~60±5%rh
Light + Spray on front face (Rain) Chamber Temperature (CAT) 28±1℃ 28±1℃
Dark Chamber Temperature (CAT) 38±1℃ 38±1℃ 38±1℃
Humidity 95±5%rh 95±5%rh 95±5%rh
Dark + Spray on front face Chamber Temperature
(CAT)/Humidity		 40±1℃/95%rh or higher 40±1℃/95%rh or higher 40±1℃/95%rh or higher
Dark + Spray on back face (Dew) Chamber Temperature (CAT) 28±1℃ 28±1℃ 28±1℃
Dark + Spray on both faces Chamber Temperature (CAT) 38±1℃ 38±1℃ 38±1℃
Specimen Capacity 150x70x1mm 51 105 102 (51 per chamber)
Specimen Holder Inclined type 18 36 36 (18 per chamber)
Specimen Rack Diameter φ580mm (22.8in) φ960mm (37.8in) φ580mm (22.8in)
Rotation Speed 1 / 2rpm *switchable 1 / 2rpm *switchable 1 / 2rpm *switchable
Electrical Specifications 50/60Hz 3 phase, 200V, 61A 3 phase, 200V, 120A 3 phase, 200V, 61A
Earth Leakage Breaker (ELB) ELB: 75A ELB: 150A ELB: 75A *per chamber
Water Consumptions For wet bulb pot & humidifier Pure water approx. 2.5L/h approx. 4.5L/h approx. 2.5L/h (per chamber)
For specimen spray Pure water (at 0.1MPa) approx. 0.48L/min approx. 3.15L/min approx. 0.48L/min (per chamber)
For back spray Pure water (at 0.1MPa) approx. 0.24L/min approx. 0.24L/min approx. 0.24L/min (per chamber)
For lamp cooling water Tap water or
cooling tower water (at 25℃)		 cooling tower water
approx. 40L/min at 34℃		 approx. 12L/min approx. 6L/min (per chamber)
For chamber temp. control / refrigerator Cooling tower water (at 25℃) approx. 42L/min approx. 30L/min (per chamber)
Outer Dimensions Width x Depth x Height (including pipings) approx. 109x149x205cm (42.9x58.7x80.7in) 140x200x205cm (55.1x78.7x80.7in) 164x200x202cm (64.6x78.7x79.5in)
Operating Weight approx. 580kgs (1279lbs) 1100kgs (2425lbs) 1200kgs (2646lbs)
Standard Accessories Radiometer for Irradiance Calibration 〇 〇 〇
Irradiance Automatic Control System 〇 〇 〇
Black Panel Temperature Automatic Control System 〇 〇 〇
Refrigeration System for Chamber Temp. Control (water-cooled type) 〇 〇 〇
Lamp Cooling Water Circulating System 〇 〇 〇

***The specifications above are subject to change without notice.
