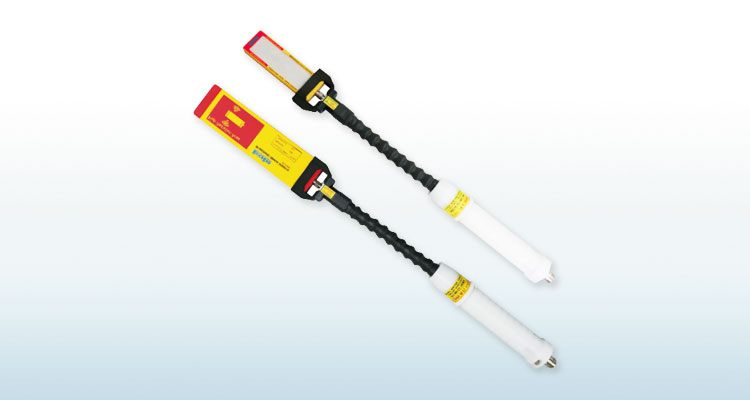

Thin Plate Broadband Antenna

Thin Plate Broadband Antenna

Broadband sleeve antenna has been developed for efficient immunity testing against hand-held transmitters and cellular phones. Many pieces of spot frequency antennas had to be used in turn thus fur. This new Broadband sleeve antenna is a single antenna solution eliminating the need for antenna changes and dramatically reducing the test time. Furthermore, this antenna with its small-size and lightweight properties and a flexible handle is suitable for testing in narrow spaces.

  • Compliant with ISO 11451-3 Ed.4 standard
  • Compliant with ISO 11452-9 Ed.2 standard
  • A wide frequency range eliminating the need for antenna changes
  • 30 W maximum power input allows high filed strengths
  • High efficiency due to a low VSWR and high gain
  • Suitable for broadband digital modulation thanks to a good VSWR flatness
  • Small, light-Weight and flat antenna easy to use in narrow spaces
  • Easy handling with a flexible arm for in-vehicle testing
  • A wide radiation pattern makes directivity of the fields no longer an issue
  • Specification
  • System configuration example
  • Application

SPECIFICATION

Model NKU07M32G NKU2460G
Frequency range (660) 700 MHz ~ 3.2 GHz 2.4 GHz ~ 6 GHz
VSWR ≦ 2
Maximum power input 20 W (continuous)
30 W (continuous 10 minutes)
10 W (CW)
Input impedance 50 Ω
Connector SMA(J)
Dimensions W50mm × D8mm × H186 mm (protrusions excluded) W35mm × D10mm × H108 mm (protrusions excluded)
Weight 73.5g 20 g

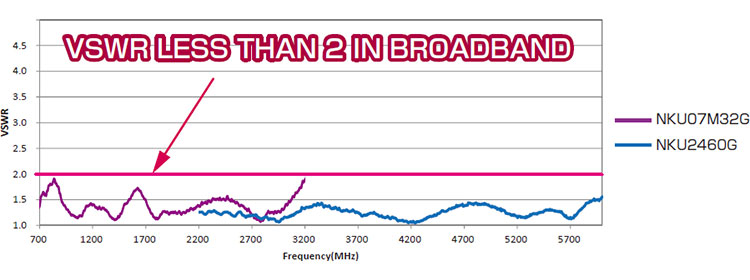

VSWR

VSWR

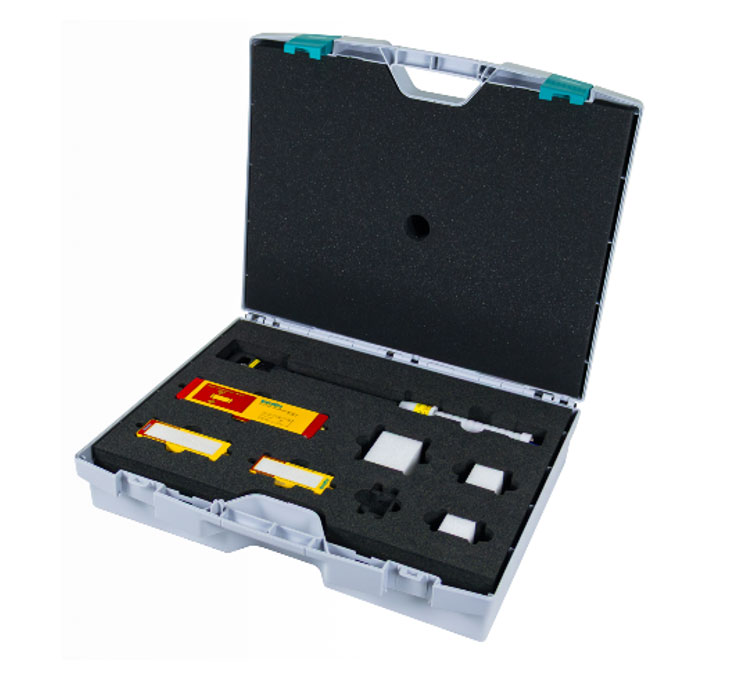

Antenna and Dedicated Flexible Antenna Handle

Antenna and Dedicated Flexible Antenna Handle

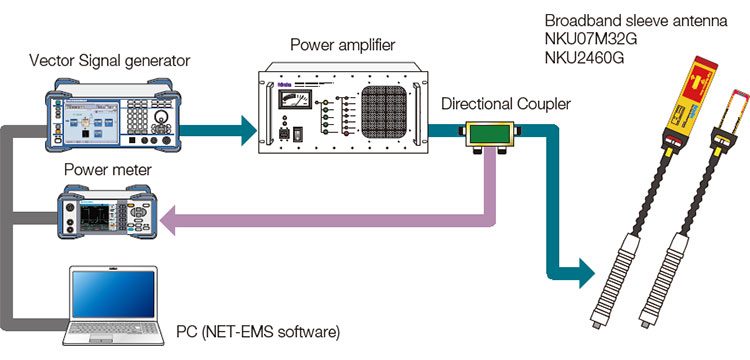

SYSTEM CONFIGURATION EXAMPLE

SYSTEM CONFIGURATION EXAMPLE

APPLICATION

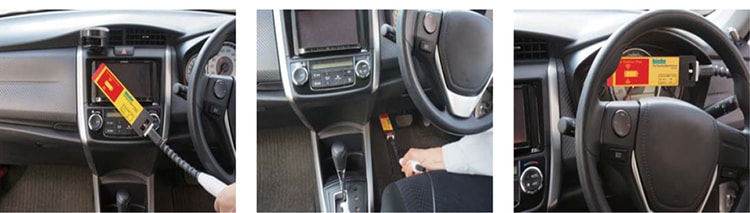

In-vehicle testing (ISO 11451-3 Ed.4: On-board transmitter)

In-vehicle testing(ISO 11451-3 Ed.4: On-board transmitter)

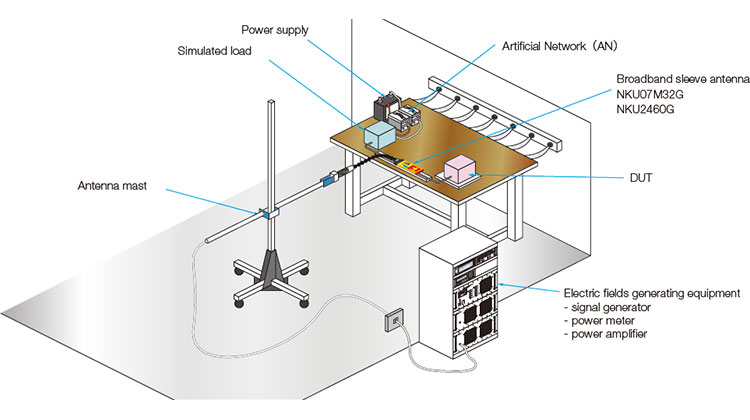

Testing for automotive electronics (ISO 11452-9 Ed.2: Portable transmitter)

Testing for automotive electronics (ISO 11452-9 Ed.2: Portable transmitter)
