SX Series

SX Series
  • Description
  • Response Time
  • Durability
  • Model number
  • Catalog
  • Patented in US, UK, Japan, France and Germany
  • Test Report comes with the probe
  • 1 second reponce
  • Excellent durability (more than 100K contacts)

High Superior Surface Probe with 360 degree flexible head

Contact Support function with range of ±4 degrees added to our most accurate model S series.

The flexible head allows the temperature sensing part to follow and to contact closely to the object to be measured and it gives you the most accurate measurement more easily.

Flexible customise is also available for each customer's specific application.

One of the most important things for accurate measurement is that a thermocouple contacts perpendicularly (90°) to the surface to be measured, but most people cannot do this easily - sometimes not even a robot can. However, SX series allows everyone to have the same, accurate and trusted results.

The 360° flexible head provides you more accurate and faster measurement as the thermocouple (sensor part) closely-contacts and follows objects to be measured very well.

360° flexible head

Response Time

The short response time is also one of the features of the SX series.

63.2% in the table represents the time constant defined as the time to reach 63.2% of the temperature change Δt of the object to be measureed.

DT-202 Detail drawing of supporting base
DT-202TB Detail drawing of supporting base

Durability

Another characteristic of the SX series is its durability.

Evaluation of the durability of a temperature sensor probe is very difficult because it depends on measurement conditions and environment.

As for SX series, the durability is defined on the condition that its contact time is less than 5 seconds at the maximum temperature during the measurement.

  • On the metalic surface at 300 C deg : At least 100,000 contacts
  • On the metalic surface at 800 C deg : At least 60,000 contacts

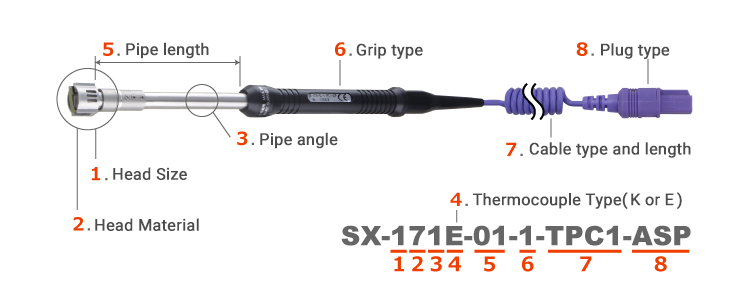

Model number

SX series
  • ①Head Size
  • ②Head Shape
  • ③Pipe angle
  • ④Thermocouple type
  • ⑤Pipe length
  • ⑥Grip type
  • ⑦Cable type and length
  • ⑧Plug type

① Head Size and ② Head Shape

SX-171E-01-1-1-TPC1-ASP

16
16
φ 15mm
-50~300℃ (-58 to 572 F)
liquid crystal polymer
17
17
φ 15mm
-50~800℃ (-58 to 1472 F)
SUS 304
36
36
φ 10mm
-50~300℃ (-58 to 572 F)
liquid crystal polymer
37
37
φ 10mm
-50~800℃ (-58 to 1472 F)
SUS 304

③ Pipe angle

SX-171E-01-1-1-TPC1-ASP

Straight
Straight : SX-**1
45 degree
45 degree : SX-**2
90 degree
90 degree : SX-**3
Elbow
Elbow : SX-**4

④ Thermocouple Type

SX-171E-01-1-1-TPC1-ASP

K(Chromel - Constantan) or E(Chromel - Alumel)
*The thermocouple type of a thermometer and a tempearture sensor probe should be same

⑤ Pipe length

SX-171E-01-1-1-TPC1-ASP

  Straight 45 degree 90 degree Elbow
30 mm 00
100 mm 01
200 mm 02
300 mm 03
400 mm 04
500 mm 05
600 mm 06
700 mm 07
800 mm 08
900 mm 09
1000 mm 10
1500 mm 15
2000 mm 20

⑥ Grip type

SX-171E-01-1-1-TPC1-ASP

1
*Only with a grip. If you are looking for one without a grip, please contact us.

⑦ Cable type and length

SX-171E-01-1-1- TPC1-ASP

TPC1
Polyurethane cable (1m, φ3.8mm, resistance up to 100°)

⑧ Plug type

SX-171E-01-1-1-TPC1-ASP

Mniture Plug
ANP : Mniture Plug
Standard Plug
ASP : Standard Plug
Without Plug
W : Without Plug
Spade Terminal
WT 3/4/5 : Spade Terminal
Ring Terminal
WC 3/4/5 : Ring Terminal
Banana Plug
WA : Banana Plug
Y Terminal For M4
ANJY : Y Terminal For M4
