OURSTEX 160RoHS - Energy Dispersive X-ray Fluoresence Spectrometer

OURSTEX 160RoHS - Energy Dispersive X-ray Fluoresence Spectrometer

Exclusively used for measurement of hazardous elements

PDF file to download

OURSTEX 160RoHS presents the following advantages.

●No liquid nitrogen required.
Silicon Drift Detector (SOD) for semiconductor detection needing no liquid nitrogen is employed for cooling of the unit..
REDUCTION OF RUNNING COST

●Highsensitivity,High precision.
High count rate and high resolution power are attained in combination with Digital Signal Processor (DSP) for the scaling circuit.
TIME SAVING FOR ANALYSIS

●For Dedicateduse against Hazardous Heavy Metal Elements.
The optical system is provided with the primary and secondary filters for dedicated use as standard equipment. The secondary filter prevents influences by coexistent elements in the sample.
RESPONSIVE TO WEEE, ROHS AND SOIL POLLUTION ANALYSIS

●Smple instaIIation and No QuaIification required.
You can complete installation by only taking out the measuring head unit from the storage case for exclusive use and connecting the controller with the operating PC. It is possible to analyze immediately. No qualification of X-ray inspection engineer is required for the operation.
ON-SITE ANALYSIS IS POSSIBLE

OURSTEX 160RoHS


Lower Detection Limit

Name of Element Atomic Symbol Sample; Polyethylene (PE)
Cadmium Cd 1ppm
Lead Pb 1ppm
Chrome Cr 2ppm
Bromine Br 1ppm
Mercury Hg 3ppm

Shinyei Corporation of America is the authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.

  • Description
  • Features
  • Specification
  • Dimensional drawing

Features

  • No liquid nitrogen is required, saving your running cost.
  • The only applicable power source is AC1OOV to 240V, 5A.
  • Microanalysis for a short time is possible with the high count rate and high resolution power.
  • Most suited as analyzer for research of conformity to the ELVand soil pollution control regulations as well as the WEEE and RoHS Directives.
  • The large-sized sample chamber enables analysis of a sample in its form kept intact.

Specification

Analytical principle Energy Dispersive X-ray Fluorescence Analyzer
Analytical object Electric/electronic parts, Plastics, Resin products, Soil
Element to be analyzed Cr, As, Se, Br, Cd, Hg, Pb (20Ca to 92U)
Filtration mechanism Primary filter (2 types)/ Secondary filter-Auto change
Shape of sample chamber W 270(mm) x D 250(mm) x H 91 (mm)
Observation of sample Color CCD camera
Environment of sample clamber Atmospheric
Rated X-ray output 48kV, 1.75mA, 5OW maximum
Detector Electronic cooling SDD (Silicon Drift Detector)
Counting circuit Digital processing DSP (Digital Signal Processor)
Use conditions Temprature : 5 ~ 27 ℃
Humidity : 20 ~ 75 %
Power supply: AClOOV to 240V, 5A
Facility : Grounding Class D
Other (optional) Standard sample of analytical line (soil, PVC, PE, cupper alloys, aluminum alloys)

Before an implementation of OURSTEX 160RoHS, a notification to Labor Standards Supervision Office is required.

Caution : For your correct and safe use, please be sure to read the operation manual in advance.

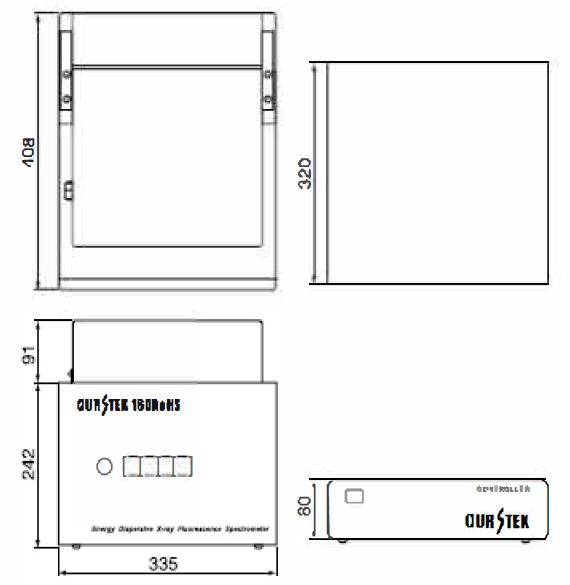

Dimensional drawing

Dimensional drawing
● The product specifications or designs in this literature are subject to change without notice for improvements.
● The product colors may differ from actual ones due to printing.

Shinyei Corporation of America is the sole authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.
