OURSTEX 101FA - Energy Dispersive X-ray Fluoresence Spectrometer
OURSTEX 101FA is Suitable for research of salt damege in concrete.
High sentitive and accurate analyzer Joint development with the Institute of Industliial Science, the university of Tokyo

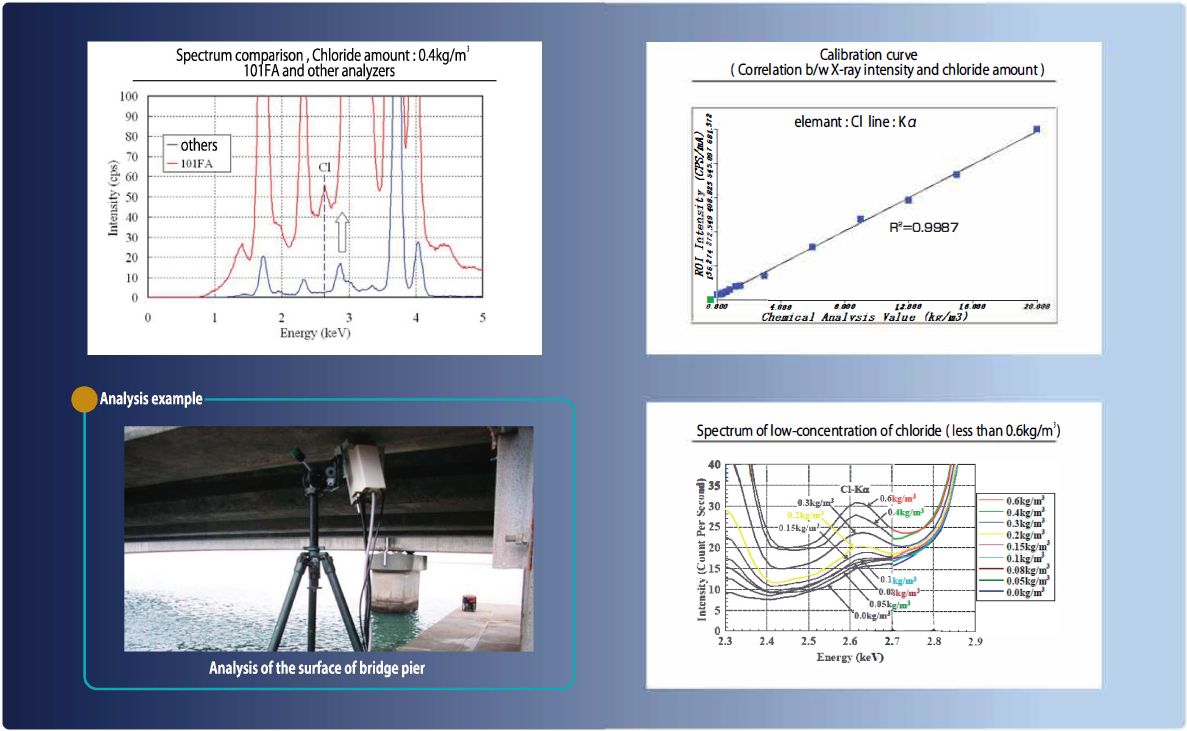

Accurate detection of chloride ions less than 1.0kg/m was not attained hitherto with conventional analyzers.
Our model 101 FA can achieve high sensitive and accurate detection up to 0.1 kg/m\ by the joint development with the Institute of Industrial Science, the University ofTokyo.
Sensitivity has improved and advanced not only for chloride, but also for the element of Al, Si, S, Ca, etc.
Shinyei Corporation of America is the authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.
Features
- Non-destructive quick composition analysis
- Non-contact analysis of large and/ or irregular samples
- High sensitive analysis of chloride amount in the concrete
- Small and light weight portable type,good for on-site analysis
- No liquid nitrogen/ no cooling water, only 1 OOV power for analysis
Application
- Chloride analysis on the surface of the concrete
- Research analysis of salt permeation in the concrete core
- Chloride analysis of the concrete drilled powder
- Analysis of the cement
- Post waste disposal component analysis (waste disposal regulation)
- Archaeological survey/ analysis
- Material study/ analysis in university etc···
Specification
| Measurement principle | Energy dispersive X-ray fluarescence analysis method |
| Measuring object | Solid, powder, liquid, thin file, biological sample |
| Measuring elements | 12Mg ～ 92U |
| Sample shape | MAX 35 mm φ X 35 mm(H) when sealed, N/A when not sealed |
| Sample chamber atmosphere | Air (vacuum : optional) |
| X-ray radiation | ～ 3mm φ |
| X-ray tube target | Pd |
| X-ray rated power | 40kV-1.75mA, 50W |
| Detector | Sillicon drift detector (SDD) |
| Counting circuit | Digital signal processor (DSP) |
| Scaling software | Automatic qualitative analysis, calibration curve method quantitative analysis, FP method quantitative analysis (optional) |
| CPU | Laptop PC (PC/AT compatible) |
| Other option | Color printer, mouse, earring case, portable generator, tripod for measuring head retention (with pointer feature), sample cap for vacuum, irradiation box, shielding box, etc··· |
| Use conditions | Temprature : 5 to 27 ℃ Humidity : 20 to 80 % Power : AC10OV to 240V, 5OOW Grounding. D-class grounding ※No need of liquid nitrogen, cooling water, analytical gas, etc・・・ |
| Outline dimensions, mass | Measuring heat part : 133 x 170 x 252mm, 3.9kg XG part : 265 x 340 x 80mm, 5.4kg Controller part : 320 x 340 x 80mm, 4.0kg Vacuum pump : 1.0kg |
Configuration
●Measuring part
●XG part
●Controller part
●Vacuum pump
●Accessories
Before an implementation of OURSTEX 101FA, a notification to Labor Standards Supervision Office is required.
Caution : For your correct and safe use, please be sure to read the operation manual in advance.

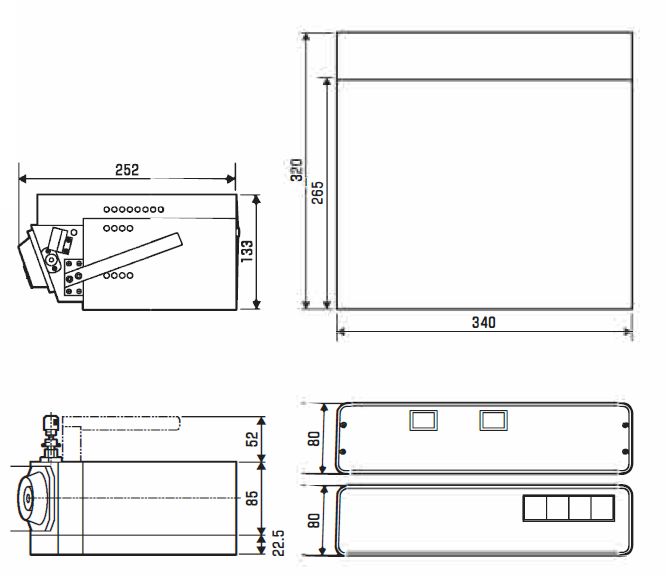

Dimensional drawing
● The product specifications or designs in this literature are subject to change without notice for improvements.
● The product colors may differ from actual ones due to printing.
