Salt Spray Test Chambers (Instruments)
STP-100 / STP-110 / STP-120 / STP-160 / STP-200 / STP-90VR / STP-30
The salt spray test is the most typical corrosion acceleration test, and is established by standards around the world such as ISO, IEC, ASTM, JIS, GB, and is widely used in quality control applications.
The STP series have been pursuing the best uniformity, reproducibility, repeatability, long lifespan, as well as usability for operators.
Salt Spray Test Chambers (Instruments)

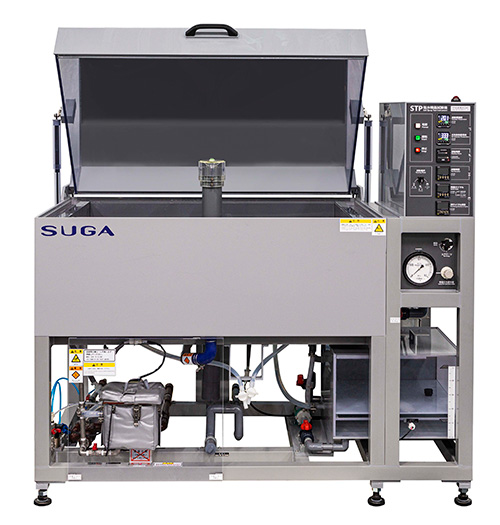

STP-100 / STP-110 / STP-120 / STP-160 / STP-200
Test standard : ISO 9227, ISO 4623-1, ISO 19453-4, ISO 4611, ISO 17025, IEC 17025, ASTM B117, ASTM B368, ASTM G85, JIS K 2371, JIS H 8502, JIS K 5600-7-1, JIS D 0201, JIS D 0202, JIS D 2601, JIS Z 2371, IEC 60068-2-11, IEC 60068-2-52, JIS C 60068-2-11, JIS C 60068-2-52, and more.
Uniform distribution of the salt mist.
International standard ISO 9227 prescribes the salt mist rate 1.5±0.5ml/h at 80cm², while the STP series enable better accuracy 1.5±0.2ml/h at 80cm².
Air Barrier Board is equipped to suppress PH fluctuations (PAT.).
The Air Barrier Board which is prescribed in the ISO 9227 is equipped in the solution supply tank to block outside air and suppress PH fluctuations.
Short time temperature shifting by the steam heating method (PAT.).
By heating inside the test chamber with a steam pipe, the temperature inside the chamber rises quickly which makes the temperature distribution inside the chamber uniform.
Water Seal Method to seal completely
The lid and the chamber is sealed completely by water.
Slope of the ceiling / lid prevents water drops fall on the test specimen.
The lid and the chamber is sealed completely by water.
Easy-to-clean every corner
The rounded corners in the bottom of the test chamber make it easy to clean.
Transparent parts to check the operating status visually during the tests.
The transparent solution supply tank, air saturator, and the both sides of the top lid allow you to visually check the remaining amount of solution or distilled water and the operating status of the chamber.
Discontinued model : STP-90V-6, STP-90V-5, STP-90V-4, STP-90V-3, STP-90V-2

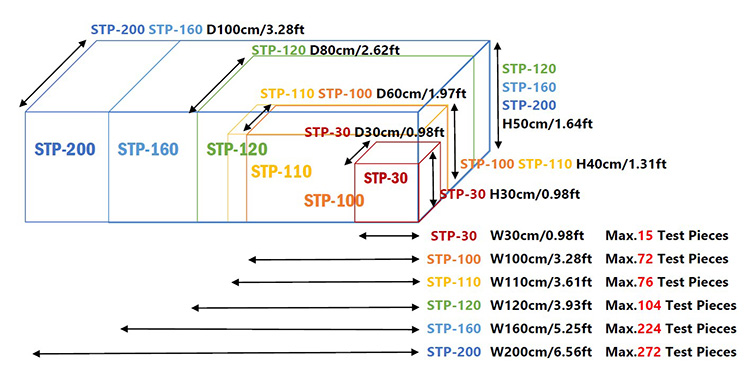

Internal Dimensions Comparison
*Test Piece: 150x70x1mm, per each distance 3mm
| STP Series Internal Dimensions and Capacity w/o Lid | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Width | Depth | Height | Capacity | ||||||
| STP-30 | 30cm | 0.98ft | 30cm | 0.98ft | 30cm | 0.98ft | 27L | 1.0cu ft | ||
| STP-100 | 100cm | 3.28ft | 60cm | 1.97ft | 40cm | 1.31ft | 240L | 8.5cu ft | ||
| STP-110 | 110cm | 3.61ft | 60cm | 1.97ft | 40cm | 1.31ft | 264L | 9.3cu ft | ||
| STP-120 | 120cm | 3.93ft | 80cm | 2.62ft | 50cm | 1.64ft | 480L | 17.0cu ft | ||
| STP-160 | 160cm | 5.25ft | 100cm | 3.28ft | 50cm | 1.64ft | 800L | 28.3cu ft | ||
| STP-200 | 200cm | 6.56ft | 100cm | 3.28ft | 50cm | 1.64ft | 1000L | 35.3cu ft | ||

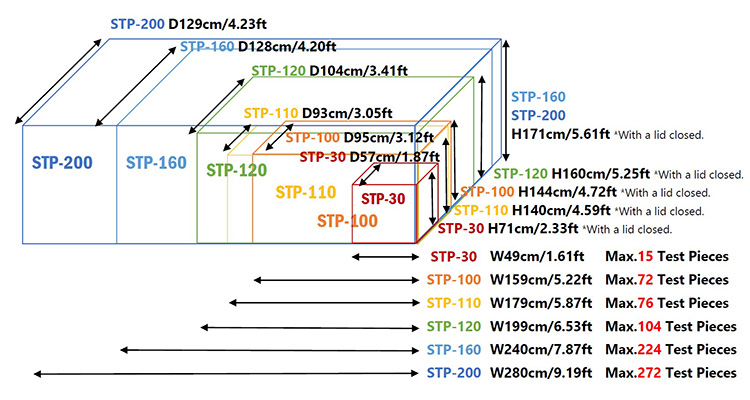

External Dimensions Comparison
*Test Piece: 150x70x1mm, per each distance 3mm
| STP Series External Dimensions and Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model | Width | Depth | Height | Weight | ||||||
| STP-30 *Main unit |
49cm | 1.61ft | 57cm | 1.87ft | 71cm | 2.33ft | 50kg | 110lbs | ||
| STP-100 | 159cm | 5.22ft | 95cm | 3.12ft | 144cm | 4.72ft | 210kg | 463lbs | ||
| STP-110 | 179cm | 5.87ft | 93cm | 3.05ft | 140cm | 4.59ft | 160kg | 353lbs | ||
| STP-120 | 199cm | 6.53ft | 104cm | 3.41ft | 160cm | 5.25ft | 360kg | 794lbs | ||
| STP-160 | 240cm | 7.87ft | 128cm | 4.20ft | 171cm | 5.61ft | 450kg | 992lbs | ||
| STP-200 | 280cm | 9.19ft | 129cm | 4.23ft | 171cm | 5.61ft | 550kg | 1213lbs | ||
Salt Spray Test Chambers (Instruments) STP-30
Test standard : ISO 9227, JIS Z 2371

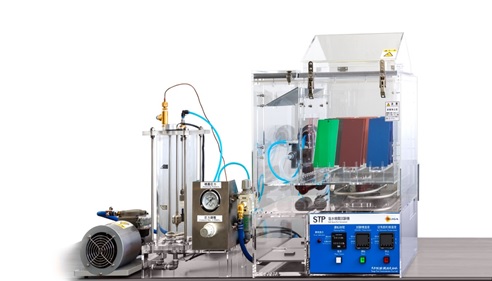

ALL TRNSPARENT
Salt solution , water amount, spray status are all visible during test.
Compact & space saving
Table top type STP-30 consists of the main chamber, air saturator, air pump*option, exhaust air disposal unit*option.
Newly developed spray method
Double-chamber heating method enables uniform mist and temperature distribution to comply with ISO, JIS standard (PAT.).
Air barrier board
To control solution pH within standards and achieve repeatability, An air barrier board in the solution tank prevents dissolution of acidic substances in atmosphere, suppressing pH fluctuation (PAT.).
Easy-replaceable specimen rack.
Three standard specimen racks are replaceable easily and no need to modify the main chamber.
Minimum utility
No need of water piping connection. Pure water and solution to be supplied manually.
Salt Spray Test Chambers (Instruments) STP-90VR
Rotation rack allows highest accuracy (PAT.).

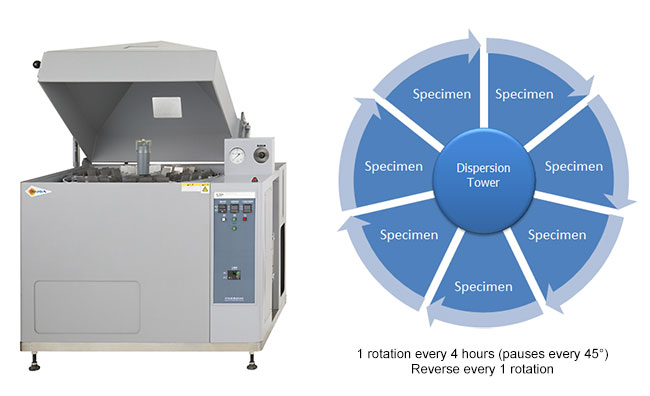

A sample rotation mechanism that further pursues the accuracy of test results. More uniform test results can be obtained than a testing chamber (instrument) in which a sample is fixed and placed in a test chamber. Pauses every 45 ° rotation (1 rotation every 4 hours), and the rotation direction reverses every rotation.
Standard Features
| Salt Spray Test Chambers (Instruments) | |||||||
|---|---|---|---|---|---|---|---|
| Model | STP-100 | STP-110 | STP-120 | STP-160 | STP-200 | STP-90VR | STP-30 |
| Test item: Salt Spray Test (neutral 5%) | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 | 〇 |
| Test temp. range (Salt Spray Test) | 35±1℃ | 35±1℃ | 35±1℃ | 35±1℃ | 35±1℃ | 35±1℃ | 35±1℃ |
| Specimen capacity (150x70x1mm each) | 72 pcs | 76 pcs | 104 pcs | 224 pcs | 272 pcs | 72 pcs | 15 pcs |
| Specimen mounting angle (against vertical) | 15°or 20° | 15°or 20° | 15°or 20° | 15°or 20° | 15°or 20° | 15°or 20° | 20° |
| Chamber inner dimensions approx. (WDH) | 100x60x40cm (3.28x1.97x1.31ft) | 110x60x40cm (43.3x23.6x15.7 in) | 120x80x50cm (47.2x31.5x19.7 in) | 160x100x50cm (63.0x39.4x19.7 in) | 200x100x50cm (78.7x39.4x19.7 in) | 99x99x50cm (39.0x39.0x19.7 in) | 30x30x30cm (11.8x11.8x11.8 in) |
| Capacity w/o lid approx. | 240L (8.5 cu ft) | 264L (9.3 cu ft) | 480L (17.0 cu ft) | 800L (28.3 cu ft) | 1000L (35.3 cu ft) | 490L (17.3 cu ft) | 27L (1.0 cu ft) |
| Withstand load of specimen rack | 7 kgf (15.4lbf) | 7.5 kgf (16.5 lbf) | 11 kgf (24.3 lbf) | 20 kgf (44.1 lbf) | 25 kgf (55.1 lbf) | 6 kgf (13.2 lbf) (Rotation 1/4rph, Pause, Inversion) | 3 kgf (6.6 lbf) |
| Electric capacity | 3 phase 200V, 10A (ELB: 10A) | 3 phase 200V, 10A (ELB: 10A) | 3 phase 200V, 21A (ELB: 30A) | 3 phase 200V, 22A (ELB: 30A) | 3 phase 200V, 22A (ELB: 30A) | 3 phase 200V, 10A (ELB: 15A) | Single phase 100V, 13A (ELB: 15A) |
| Tap water requirements approx. | - | - | - | - | - | - | 13L |
| Pure water requirements approx. | TBA | 0.6L/h | 1.3L/h | 1.3L/h | 1.3L/h | 0.6L/h | - |
| External dimensions approx. (WDH) | 159x95x144cm (5.22x3.12x4.72ft) |
179x93x140cm (70.5x36.6x55.1 in) | 198x104x160cm (78.0x40.9x63.0 in) | 240x128x171cm (94.5x50.4x67.3 in) | 280x128x171cm (110.2x50.4x67.3 in) | 147x134x166cm (57.9x52.8x65.4 in) | 49x66x73cm (19.3x26.0x28.7 in) |
| External height with the lid open | 170cm (66.9 in) | 172cm (67.7 in) | 185cm (72.8 in) | 201cm (79.1 in) | 201cm (79.1 in) | 193cm (76.0 in) | 96cm (37.8 in) |
| Operating weight approx. | 210kgs (463lbs) | 160kgs (353lbs) | 350kgs (772lbs) | 450kgs (992lbs) | 550kgs (1213lbs) | 300kgs (661lbs) | 60kgs (132lbs) |
*The specifications above are subject to change without notice.

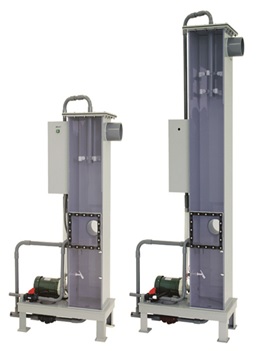

Exhaust Treatment Unit (Optional)
EF-1R / EF-1RW / EF-2R / EF-R
Completely remove the salt in the exhaust
Exhaust salt mist during salt spray test is removed by passing it through the water spray. Treated water is circulated and reused by a pump, reducing consumption.
EF-R for STP-30.
EF-1R for STP-90V-5, STP-110, STP-120
EF-1RW for STP-160, STP-200
EF-2R for large corrosion test chambers (instruments) CCT series.
Other Options for Corrosion Test Chambers (Instruments)
Exhaust Treatment Unit
Automatic Solution Supplying Unit
Automatic Pure Water Supply System to Air Saturators
Water Recycling Unit
and more.
