OURSTEX VoXER - Handheld X-ray Fluorescence Analyzer

OURSTEX VoXER - Handheld X-ray Fluorescence Analyzer

PDF file to download

Reliable analysis resultstion

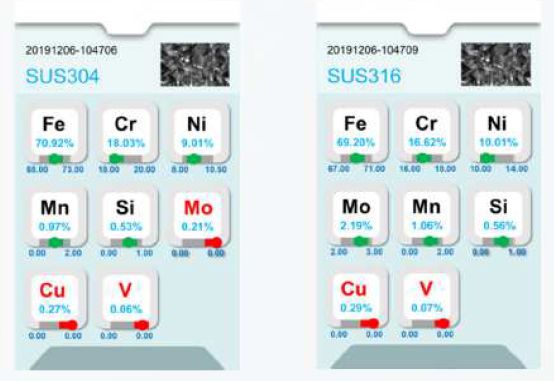

The alloy is judged based on the result of component analysis

With OURSTEX VoXer

Display screen

Portable everywhere

Easy to carry. It can analyze anywhere.

Non-destructive analysis is possible

Analysis without damaging the sample.

You can analyze it in a short time

Adopts SDD with high resolution. It can be analyzed in about 8 to 30 seconds.



Shinyei Corporation of America is the authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.

  • Description
  • Features
  • Application
  • Specification

Features

  • Made in Japan Handheld X-ray fluorescence device
  • Ideal for discriminating dissimilar metals
  • Battery-powered for easy analysis anywhere
  • X-ray generation method by friction instead of conventional X-ray tube
  • Equipped with SDD detector

Application

  • Discriminant analysis of different materials of metal
  • Precious metal analysis
  • Scrap analysis

Easy maintenance

Easy maintenance

Easy

One-touch cartridge exchange type Replacing the X-ray source is easy.



Reassuring support system

Reassurance

Manufacturing system in Japan



Data management / external output

Data communication by USB connection Print analysis results

Data communication by USB connection Print analysis results

Equipped with a camera

Equipped with a camera

Rechargeable battery powered

Rechargeable battery powered



Reliable malfunction prevention function

Safety

Equipped with proximity sensor to prevent malfunction.
Equipped with X-ray radiation prevention function.

Specification

Measurement principle X-ray fluorescence analysis
External dimensions 31cm×9cm×24cm
Element to be analyzed Na〜U (Na〜Ar)
Filter Primary filter / Secondary filter (option)
Weight 2.6 kg
Detector SDD
X-ray target Ag
Display 4.3 inch Touch Screen
Operating environment 0℃~40℃
Battery 24.6V Lithium-ion battery (rechargeable)
Duration 12 hours
Continuous use time 4 hours
Charging time 5 hours
External output microUSB Port

Caution : For your correct and safe use, please be sure to read the operation manual in advance.

Shinyei Corporation of America is the sole authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.
