OURSTEX 100FA - Energy Dispersive X-ray Fluoresence Spectrometer

OURSTEX 100FA - Energy Dispersive X-ray Fluoresence Spectrometer

Portable and Best for On-Site Analysis

PDF file to download

Fruit of Element Technology/ High Sensitivity, High Accuracy

Energy Dispersive X-ray Fluorescence Spectrometer makes qualitative and quantitative nondestructive element analysis possible regardless of sample form by measuring fluorescent X-rays which are generated by irradiation of primary X-ray from X-ray tube to a sample through a semiconductor detector.

The semiconductor detector uses silicon drift detector (SDD) with electron cooling system which does not require liquid nitrogen cooling, and then makes high resolution and high counting rate measurement possible by combining with our original digital scaling circuit processor (DSP).

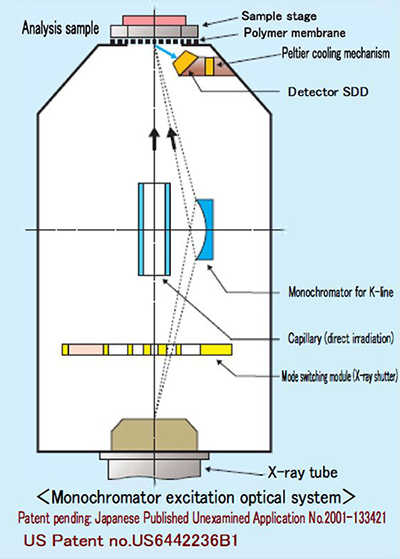

To make an analytical performance higher, an excitation optical system is set with the best condition to get the highest performance of energy resolution and counting sensitivity of the semiconductor detector.

101 FA

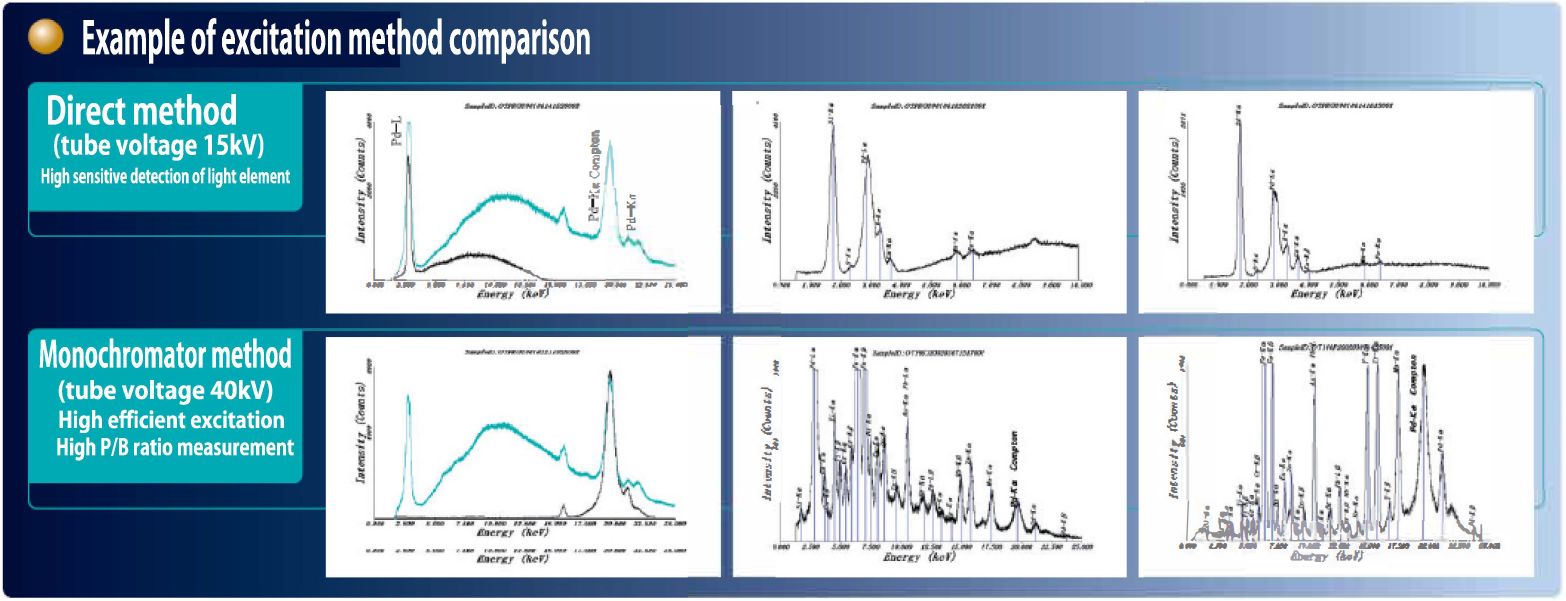

OURSTEX 100FA performs the following measurements with high sensitivity!

For light element measurement, direct irradiation with low voltage eliminates interference by heavy element spectrum, and a Pd-L line is effectively used.

For medium and heavy element measurement, monochoromating a primary X-ray by monochromator and exciting it by K-line of tube target inhibits background noise.

101 FA

Shinyei Corporation of America is the authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.

  • Description
  • Features
  • Application
  • Specification
  • Dimensional drawing

Features

  • Nondestructive quick composition analysis
  • Noncontact analysis of large and/or irregular samples
  • Analysis with closer position of an acute head to a curved sample
  • Small and light weight portable type, good for on-site analysis
  • No liquid nitrogen/ no cooling water, only 1 OOV power for analysis

Application

  • Archaeological survey/analysis
  • Forensic analysis
  • Scrap material identification
  • Industrial material R&D evaluation, quality control analysis (plated and/or evaporated film thickness measurement)
  • Post waste disposal component analysis (waste disposal regulation)
  • Analysis of hazardous heavy metal in soil (for new regulation of urban area soil contamination countermeasure)
  • Material study/analysis in university/research institute
  • • • and, analysis for any form of solid, powder, liquid is possible.

Specification

Measurement principle Energy Dispersive X-ray Fluorescence Analysis Method
Measuring object Solid, powder, liquid, thin file, biological sample
Measuring elements 12Mg ~ 92U
Sample shape MAX 35 mmφ X 35 mm(H) when sealed, N/A when not sealed
Sample chamber atmosphere Air (vacuum : optional)
X-ray radiation ~ 3mm φ
X-ray tube target Pd
X-ray rated power 40kV-1.75mA, 50W
Detector Sillicon drift detector (SDD)
Counting circuit Digital signal processor (DSP)
Scaling software Automatic qualitative analysis, calibration curve method quantitative analysis(optional)
CPU Laptop PC (PC/AT compatible)
Other option Color printer, mouse, earring case, portable generator, tripod for measuring head retention (with pointer feature), sample cap for vacuum, irradiation box, shielding box, etc···
Use conditions Temprature : 5 ~ 30 ℃
Humidity : 20 ~ 80 %
Power : AC10OV, 5A(50/60Hz)
Grounding. D-class grounding
※No need of liquid nitrogen, cooling water, analytical gas, etc・・・
Outline dimensions, mass Measuring heat part : 133 x 170 x 273mm, 3.9kg
XG part : 320 x 340 x 80mm, 9.2kg
Controller part : 265 x 340 x 120mm, 9.0kg
Vacuum pump : 190 x 177 x 132mm, 3.0kg

Configuration

●Measuring part
●XG part
●Controller part
●Vacuum pump
●Accessories

Before an implementation of OURSTEX 100FA, a notification to Labor Standards Supervision Office is required.

Caution : For your correct and safe use, please be sure to read the operation manual in advance.

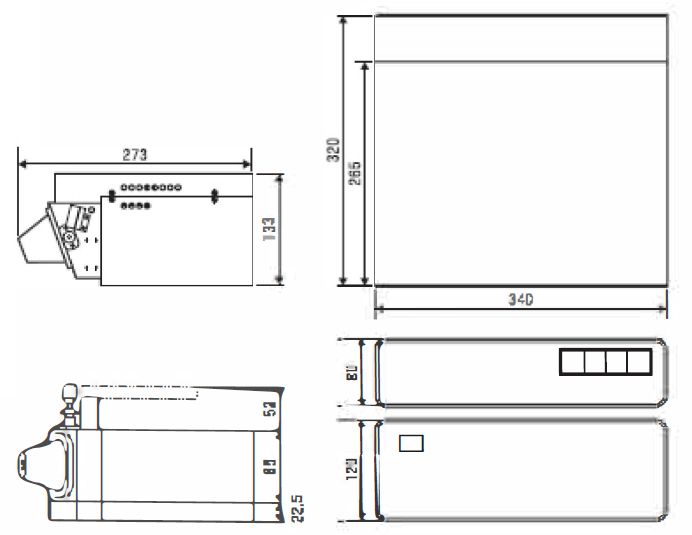

Dimensional drawing

Dimensional drawing
● The product specifications or designs in this literature are subject to change without notice for improvements.
● The product colors may differ from actual ones due to printing.

Shinyei Corporation of America is the sole authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.
