Thermal Shock Chamber - WINTECH NEO

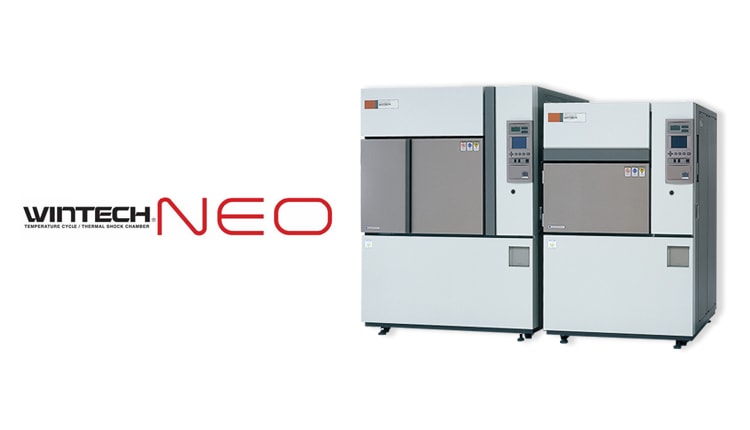

Thermal Shock Chamber WINTECH NEO

ETAC WINTECH Neo series takes your test to the next level

With standard sizes ranging from 1.7 cu. ft. to 7.4 cu. ft., WINTECH NEO meets your test requirement.You can also make your own chamber with our variety of options listed on page 13 of the catalog.

  • Temperature range: -65 to 0, +60 to +200 or +80 to 300 C deg (-85 to +32, +140 to +392 or +176 to +572 F deg)
  • Three zones: hot, ambient, and cold
  • Interior Volumes: 14.6 x 12.9 x 15.7”, 14.6 x 19.6 x 15.7”, 25.6 x 19.6 x 15.7”, 27.6 x 19.6 x 23.6” (1.7 cf, 2.6 cf, 4.6 cf, 7.4 cf )
  • Air / Liquid type available
  • User friendly recorder with LCD colour touch panel
  • Automatic error recording and troubleshooting
  • 2 specimen racks included
  • Access port with silicone plug, Φ50 mm on left
  • Eco mode reduces power usage up to 50% over previous models
  • Thermal Shock without moving samples

Interior Volumes

NT550A 14.6 x 12.9 x 15.7”, 1.7 cf
NT1050A, NT1050W 14.6 x 19.6 x 15.7” 2.6 cf
NT1250A, NT1250A 25.6 x 19.6 x 15.7” 4.6 cf
NT2050W 27.6 x 19.6 x 23.6” 7.4 cf
  • Description
  • Features
  • Catalog
  • Options

Features

Fast recovery by cold and hot air damper switching system

ETAC’s unique hot and cold air switching system by dampers consists of an independent high temperature room, a low temperature room and a test room (where specimen is placed).
Hot and cold air are prepared in high temperature room and low temperature room respectively before either hot air or cold air flows in test room alternately exposing the specimen in the test room to sudden temperature change.
Because the test room does not move and only the ambient temperature around specimen changes rapidly.

No other extra stress such as vibration is added to the specimen In addition, because the current conduction cables can be easily connected to the specimen, this design is optimum for test which requires accurate measurement such as joint reliability evaluation.

Shortest Recovery Time

WINTECH NEO series has achieved the shortest recovery time by the sophisticated cooling and heating cycle system with excellent thermal refrigeration efficiency and the optimized heat and cold storage materials in the temperature preparation rooms.

2 zone test(upwind sensor)
( -40C deg <-> +125C deg)

Sample : Plastic mold IC

  Recovery Time
  Low temp High temp Weight
NT550A 8 min 3 min 2.5 kg
N1250W 4 min 5 min 5.0 kg

3 zone test(upwind sensor)
( -55C deg <-> Ambient temp <-> +150C deg)

Sample : Plastic mold IC

  Recovery Time
  Low temp High temp Weight
NT550A 2 min 3 min 2.5 kg
N1250W 3 min 4 min 5.0 kg

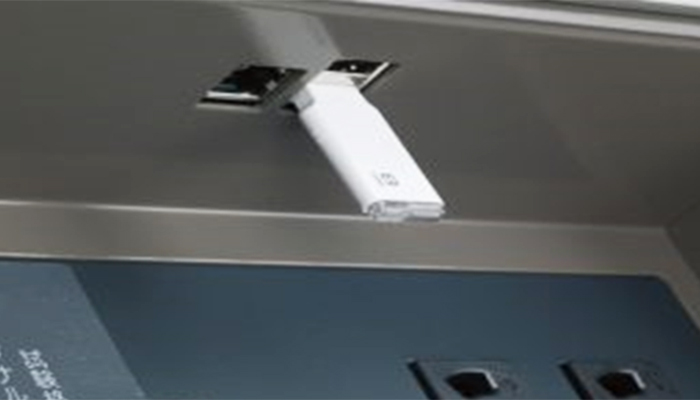

Easy Data Transfer

Easy Data Transfer

Test programs can be transferred from your laptop to a chamber via USB.

Direct access to the chamber via your own laptop or tablet is also available.

LCD Touch Panel & Automatic Data Saving

LCD Touch Panel & Automatic Data Saving

Most problems/errors of these types of chambers are caused by the water circulation system.

HIFLEX series has the automatic UV sterilization to keep the water clean to prevent the troubles.
