ANRITSU Contact & Non-Contact Thermologger / Model AR-6500 series
Contact & Non-Contact Thermologger Model AR-6500 series infrared thermometers are capable of non-contact temperature measurement and come with contact type thermometer functions.
Features
- Broad measurement range

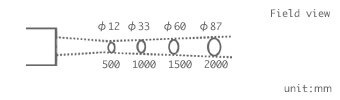

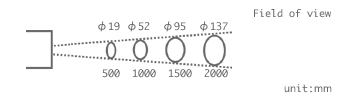

- Small measurement area
- Wide range of emissivity settings
- Automatic emissivity setting using contact-type probe
Specification
| Model | AR-6500 | AR-6501 | AR-6500-H | AR-6501-H |
|---|---|---|---|---|
| Measurement Range | -50 to 500°C | 0 to 1200°C | ||
| Resolution | 0.1°C | 1°C | ||
| Laser aiming | ◯ | ◯ | ◯ | ◯ |
| Contact Mode | ◯ | ◯ | ◯ | ◯ |
| Measurement Accuracy | Table1 | Table2 | ||
| Reference junction compensation accuracy | ±0.2°C at 25±10°C | |||
| Temperature coefficient | ±0.01% of full scale °C | |||
| Power supply | Ni-Cd rechargeable battery (4AA) | |||
| Battery life | 30 hours to (10 hours when laser is used continuously) | |||
| Environmental limit |
Operation : 0 to 40°C, 0 to 80%RH (Without Dew) Storage : -20 to 50°C, 0 to 85%RH (Without Dew) |
|||
| Analog output Table3 | — | 1mV / °C | — | 1mV / °C |
| Weight | App. 400g | |||
| Accessories | Manual, Soft case, Lens cap, Charger, Test report | |||
| — | Output cable | — | Output cable | |
Table 1 AR-6500, AR-6501
| Non-Contact | 250.1 to 500.0°C | ± (0.8% of reading + 1digit) |
|---|---|---|
| 0.0 to 250.0°C | ± (2°C + 1digit) | |
| -50.0 to -0.1°C | ± (3°C + 1digit) | |
| Contact | -50.0 to 500.0°C | ± (0.05% of reading + 0.1°C) ±1digt |
Table 2 AR-6500-H, AR-6501-H
| Non-Contact | 601 to 1200°C | ± (0.5% of reading + 1digit) |
|---|---|---|
| 251 to 600°C | ± (3°C + 1digit) | |
| 0 to 250°C | ± (4°C + 1digit) | |
| Contact | 0 to 1200°C | ± (0.1% of reading + 1digit) |
Table 3
| Output Rate | 1mV / °C |
|---|---|
| Accuracy | ± (0.15% of F / S + 1mV) : at 25±5°C ± (0.15% of F / S + 1mV) ±0.01% of F / S :except 25°C±5°C |
Non-contact mode
| Delector | Thermopile |
|---|---|
| Spectral response | 8 to 14μm |
| Repeatability | ± (0.4% of reading + 1digit) |
| Response time | approx. 300ms |
| A-constant adjustment | 0.10 to 2.00 (0.01 step) |
| Laser aiming | L2 models meet IEC Class2 |
Contact mode
| Input | Thermocouple Type : K |
|---|---|
| Sampling time | approx. 300ms |
| Input connector | ANP connector (Miniture plug) |

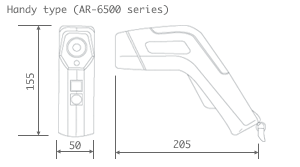

Dimensions
Accessories
