Super Xenon Weather Meters
GX90 / GX75 / GX25
Light Source : Xenon Arc Lamp

Xenon Weather Meters are designed to reproduce outdoor and indoor deterioration factors such as sunlight, high and low temperature, rainfall and dew in a short period of time. The spectral power distribution of the Xenon Lamp gives the closest approximation of sunlight spectrum distribution, as well as long life with the best cost performance.

Related Standards : ISO 4892-1, ISO 4892-2, ISO 11431, ISO 12040, ISO 105-B02, ISO 105-B04, ISO 105-B06, ISO 2135, ISO 4665, ISO 3917, ISO/TR 18930, ISO 17398, IEC 60068-2-5, IEC 60068-2-9, IEC 61215, IEC 61646, ASTM D 6695, ASTM G 151, ASTM G 155, AATCC TM16, AATCC TM169, SAE J2527, SAE J2412, JIS K 7350-1, JIS K 7350-2, JIS K 5600-7-7, JIS A 1415, JIS A 1439, JIS K 5701-1, JIS L 0843, JIS L 0891, JIS H 8685-1, JIS K 6266, JIS D 0202, JIS D 0205, JIS E 4037, JEITA CP-3901, JIS Z 9107, JIS B 7754, JIS C 8917, JIS C 8938, JASO M 346, JASO M 351
*Subject to the accessories.

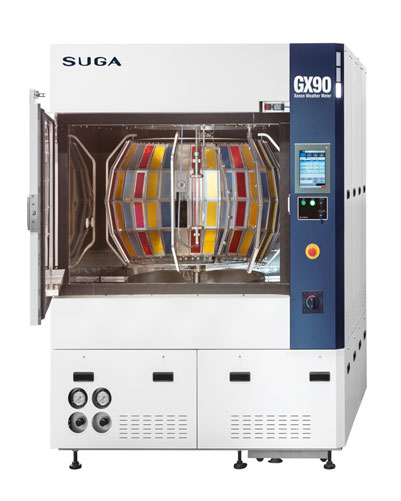

Xenon Weather Meter GX90

  • World's No.1 Long-life Light Source 3000 hours.
    *at 60W/m2(300-400nm), daylight filter, BPT63℃, 50%rh.
  • 9kW Water-cooled Xenon Arc Lamp of Long Life
  • Specimen Capacity:126 pcs(150x70x1mm)
  • Automatic Irradiance Calibration on the specimen surface as standard.
  • Light Test: BPT63~89±2℃, Hum.50±5%rh(depends on the test condition)
  • Dark Test:CAT38±2℃, Hum.95±5%rh
  • Spray on both faces (Rain & Dew) is available.
  • Wide variety of options and customization is available.

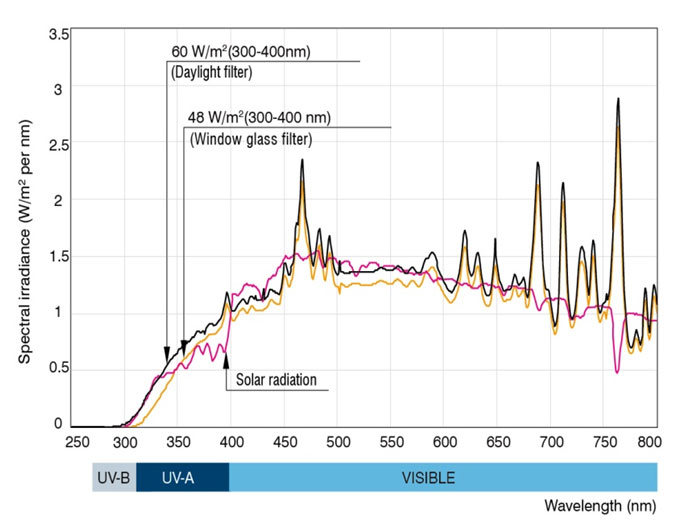

Xenon Arc Lamp

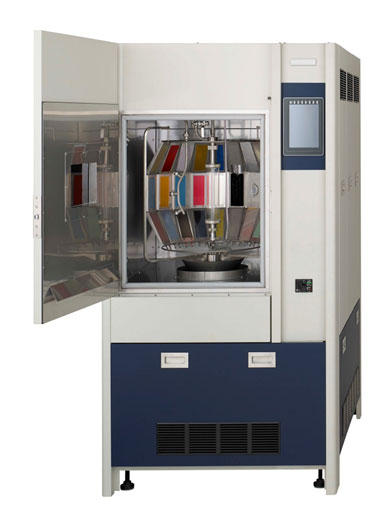

Xenon Weather Meter GX75

  • 7.5kW Water-cooled Xenon Arc Lamp of Long Life
  • Max. Irradiation: 120W/m2 at 300 to 400nm
  • Specimen Capacity: 60 pcs(150x70x1mm)
  • Light Test: BPT63~110±2℃, Hum.50±5%rh(depends on the test condition)
  • Dark Test: CAT38±2℃, Hum.95±5%rh
  • Spray on both faces (Rain & Dew) is available.
  • Radiometer for Automatic Irradiance Calibration is included as standard.
  • Saving energy by the temp. and humidity control system.
  • Wide variety of options and customization is available.
Xenon Arc Lamp
Xenon Weather Meter GX75 Xenon Weather Meter GX75 Xenon Weather Meter GX25

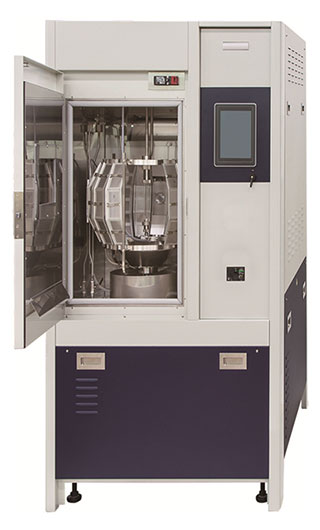

Xenon Weather Meter GX25

  • 2.5kW Water-cooled Xenon Arc Lamp of Long Life
  • Compact model with excellent cost performance
  • Max. Irradiation: 60W/m2 at 300 to 400nm
  • Specimen Capacity: 96pcs(65x55x1mm)
  • Light Test: BPT63~110±2℃, Hum.35~60±5%rh (at BPT63℃, 60Wm2)
  • Dark Test: CAT38±2℃, Hum.95±5%rh
  • Radiometer for irradiance calibration is included as standard.
  • Wide variety of options and customization is available.
Xenon Arc Lamp
Xenon Weather Meter GX25

Standard Features

Name Super Xenon Weather Meter
Model GX90 GX75 GX25
Light Source 9kW Water-
cooled Xenon Arc Lamp (WX9.0)
7.5kW Water-
cooled Xenon Arc Lamp (WX7.5)
2.5kW Water-
cooled Xenon Arc Lamp (WX2.5)
Light Source Qty. 1 1 1
Test Item Light 〇 〇 〇
Light + Spray on front face (Rain) 〇 〇 Optional
Dark 〇 〇 〇
Dark + Spray on front face 〇 〇 -
Dark + Spray on back face (Dew) 〇 〇 -
Dark + Spray on both faces 〇 〇 -
Irradiance Wavelength 300 to 400nm *with daylight filter 40~100W/m2 40~120W/m2 40~60W/m2
Temperature /
Humidity Range
Light BPT
*depends on the test condition
63~89±2℃ 63~110±2℃ 63~110±2℃
Humidity
*depends on the test condition
50±5%rh 50±5%rh 35~60±5%rh
Light + Spray on front face (Rain) Chamber Temperature (CAT) 38±2℃ 38±2℃ -
Dark Chamber Temperature (CAT) 38±2℃ 38±2℃ 38±2℃
Humidity 95±5%rh 95±5%rh 95±5%rh
Dark + Spray on front face Chamber Temperature (CAT)/Humidity 40±2℃/95%rh or higher 40±2℃/95%rh or higher -
Dark + Spray on back face (Dew) Chamber Temperature (CAT) 38±2℃ 38±2℃ -
Dark + Spray on both faces Chamber Temperature (CAT) 38±2℃ 38±2℃ -
Specimen Capacity 126 (150x70x1mm) 60 (150x70x1mm) 96 (65x55x1mm)
Specimen Holder Inclined type 21 (per 4 stages) 21 (per 3 stages) 18
Specimen Rack Diameter φ960mm (37.8in) φ648mm (25.5in) φ508mm (20.0in)
Rotation Speed 2rpm 2rpm 3rpm
Electrical Specifications 50/60Hz 3 phase, 400V, 65A 3 phase, 200V, 55A 3 phase, 200V, 43A
Earth Leakage Breaker (ELB) ELB: 75A ELB: 75A ELB: 50A
Water Consumptions For wet bulb pot & humidifier Pure water TBA approx. 5L/h approx. 5L/h
For specimen spray Pure water (at 0.1MPa) TBA approx. 0.24L/min -
For back spray Pure water (at 0.1MPa) TBA approx. 0.24L/min -
For lamp cooling water Tap water or
cooling tower water (at 25℃)
TBA approx. 6L/min approx. 4L/min
For chamber temp.
control / refrigerator
Cooling tower water (at 25℃) TBA - -
Outer Dimensions Width x Depth x Height (including pipings) approx. 148x175x205cm (58.3x68.9x80.7in) 103x144x185cm (40.6x56.7x72.8in) 100x129x180cm (39.4x50.8x70.9in)
Operating Weight approx. 1300kgs (2866lbs) 540kgs (1191lbs) 400kgs (882lbs)
Standard Accessories Radiometer for Irradiance Calibration 〇 〇 〇
Irradiance Automatic Control System 〇 〇 〇
Black Panel Temperature Automatic Control System 〇 〇 〇
Refrigeration System for Chamber
Temp. Control (water-cooled type)
- - -
Lamp Cooling Water Circulating System 〇 〇 〇
