ESD simulator

ESD simulator

ESS-S3011A & GT-30RA

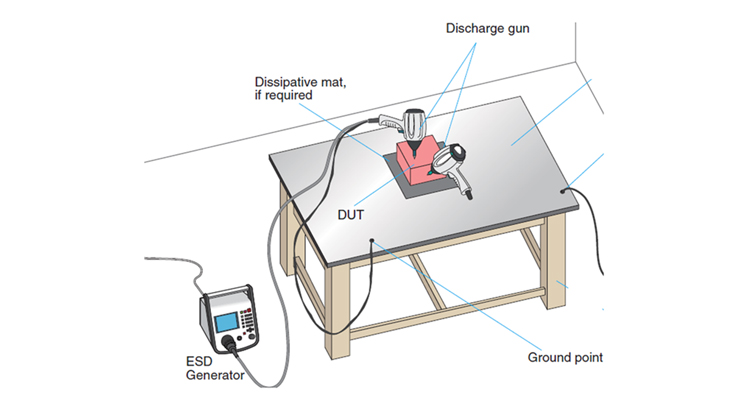

EMC test equipment to evaluate the resistibility of electronic devices and components when energy charged on a human body or object is discharged to the electronic devices and components. NoiseKen brand ESD simulator is available to see malfunctions or function declines of electronic equipment for appropriate evaluations compliant with IEC 61000-4-2 Ed.2 Test Standard, ISO 10605 Ed.2 Test Standard & ISO 10605 Ed.3 Test Standard

.

The ESS-S3011A features a function which enables the user to pre-program test settings to minimize setup errors as well as having the unit be incorporated into a remote or autonomous testing setup. Another feature that sets apart NoiseKen ESD guns to that of competitors is the discharging gun separation design which helps achieve the lightweight.

For conventional ESD guns, that have generators that are inseparable from the gun, you may experience having to replace the whole unit even only when certain parts of the unit are broken. However, with the NoiseKen’s separation design, replacement parts can be minimized to lower the running cost.

ESD simulator
light weight for easy handling

light weight for easy handling

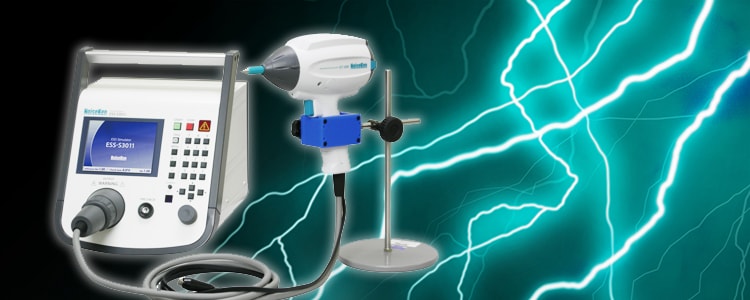

ESS-S3011A(Simulator) & GT-30R A(Discharging Gun)

ESS-S3011A(Simulator) & GT-30R A(Discharging Gun)
* The simulator and its gun are separated to achieve cost effectiveness.

Shinyei Corporation of America is the sole authorized distributor of NoiseKen products. We offer the most direct sales of NoiseKen products available in the US.

  • Description
  • Features
  • Specification
  • Option

Features

To realize a more secure test
“3 PRE-CHECKING FUNCTION” BUILT-IN

esd simulator
esd simulator
  • Check high voltage output to confirm correct voltage is produced.
  • Check withstanding voltage to confirm whether withstanding voltage is normal or defective. The output and defectiveness are checked upon insertion of the discharge gun to the attached gun holder.
  • Check discharge relay operation to confirm whether the relay is exhausted or not.
    Confirmed by a contact discharge to the check terminal located on the generator.

CR CONSTANT INDICATOR TO MAKE SURE THE CORRECT UNIT ATTACHMENT.

esd simulator

Detects whether the gun head corresponds to IEC or ISO.

esd simulator

Detects the capacitor and resistor values of the attached CR network.

esd simulator

Information displayed on the generator screen.

Lighter and user-friendly discharge gun

esd simulator

The GT-30RA discharge gun has been completely renewed, using lightweight materials and weight balancing designs, to be known as one of the most operator friendly ESD guns in the market. In addition to the LED indicator that helps visualize when the discharge occurs, the GT-30RA offers features such as the one-touch no-hassle exchange of CR unit and flashlight to easily see where the gun is making contact to realize a more operator friendly testing experience.

esd simulator

LED irradiator built-in to shine the discharging points

esd simulator

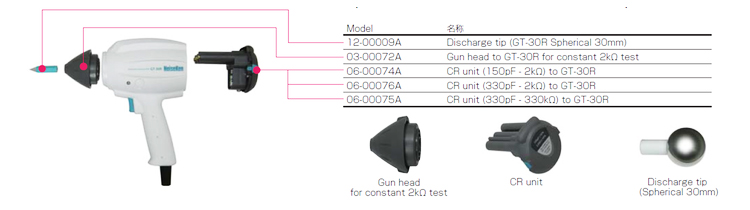

One-touch exchangeable CR units

esd simulator

Easily exchangeable the gun head

esd simulator

Lighter and ergonomic handling

esd simulator

LED irradiater to visualize the discharge(changing the color from RED to GREEN upon the discharge)

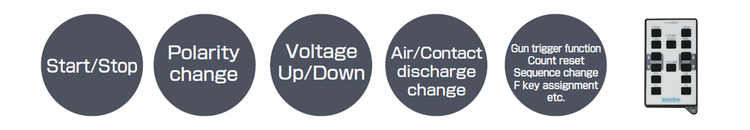

“Infra-red Remote Controller” Included for changing test settings remotely

esd simulator

Most of the operation can be controlled by the remote controller.

AVAILABLE TO CONFORM TO ISO 10605 STANDARD WITH ADDITION OF THE GUN HEAD AND CR UNITS.

Available to conform to ISO 10605 Standard by additional purchasing optional gun head and CR units. Since exchange of the gun head and CR units can be one touched, the tests with varied CR constants can be realized easily.

esd simulator

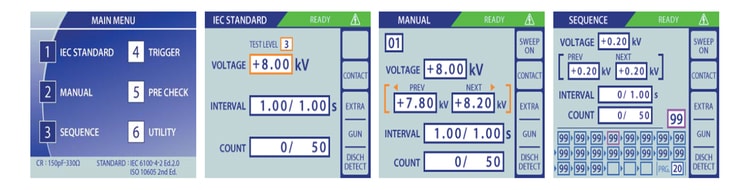

HIGH VISIBILITY LCD PANEL AND OPERATABILITY

Compared to previous model improvements have been made with focus on easing user operation. A preset feature, accessed through “1 IEC STANDARD” option in the MAIN MENU, will allow you to test at levels called for in the IEC61000-4-2 Ed.2 standard without the need to set individual parameters yourself. Combined with the “2 MANUAL” mode where you can set the voltage, interval, and number of discharge of your need, and “3 SEQUENCE” mode where you perform sweeping discharges, the ESS-S3011 can be set to best fit your test requirements.

esd simulator

Specification / ESS-S3011 & GT-30R

Specification

Polarity Positive / Negative
Output voltage 0.20kV~30.0kV±5%(30.5kVmax
~ 10.0kV : 0.01kV step ̃30.0kV : 0.1kV step
Repetition cycle 0.05s ~ 600s±10% / Manual
Set step : 0.1s (0.1 ~ 9.99s), 0.10s (10.0 ~ 600.0s)
Set step : 0.1s (0.1 ~ 9.99s), 0.10s (10.0 ~ 600.0s)0.05s̃99.9s±10% / Manual
Set step : 0.05s (0.05̃10.0s), 0.10s (10.0̃99.9s)
No. of time of discharge 1~60,000 times, Preset 1 time step or continuous preset1~60,000 times, Preset 1 time step or continuous preset1̃60,000 times, Preset 1 time step or continuous preset
Discharge mode Contact discharge / Air discharge
Radiation level mode NORMAL mode / EXTRA mode
Trigger mode Gun trigger / Main trigger / External trigger
Operation panel Color LCD / Push-buttons (Partially lighting)
Gun holder Standard attached (to hold the discharge gun Model GT-30R)
Radiation mode select switch Extra / Normal switching function built-in
Discharge detection Discharge detection function in air-discharge equipped
Pre-checking function "Following 3 steps function equipped
(by user operation. Not the calibration but just checking)
SETP1: High voltage output checking
STEP2: Withstanding voltage checking
STEP3: Discharge relay operation checking"
CR & Gun head checking CR constant and gun head recognizable
(with an indicator to prevent the wrong combination)
"IEC STANDARD" test mode Contact discharge mode : 2.0kV, 4.0kV, 6.0kV and 8.0kV step
Air discharge mode : 2.0kV, 4.0kV, 8.0kV and 15.0kV step
"MANUAL" test mode Contact / Air discharge mode, Arbitrary setting during 0.2kV~30.0kV
Sweeping function built-in, Recordable up to 99 units
"SEQUENCE" test mode "Enables to operate units set in MANUAL mode continuously.
Max. 22 steps / 1 program and the programs recordable up to 20. "
Warning lamp Lighting at voltage output from the generator. Blinking at electro-static discharging
Charge capacitor / resistor 150pF±10%, 330Ω±10% (Built-in CR unit for discharge gun GT-30R)
Charge resistor in generator 10MΩ (Totally 53Ω in combination with 43MΩ in discharge gun)*
AUX connector D-SUB 15pins female connector
(for connecting to patolight, automated ESD eliminator, external interlock input, external trigger input terminal)
Optical communication connector Optical connector (serial interface) for connecting to PC
Power supply /consumption AC100V~AC240V 50Hz/60Hz ±10% 75VA
Dimension "Generator : (W)392mm X (H)312mm X (D)295.3mm( including gun holder)
Discharge gun : (W)83.3mm X (H)217.2mm X (D)229.3mm"
Mass Generator : Approx. 7.5kg
Discharge gun : Approx. 800g (excluding cable and connector)
  • The constant depends on combination with CR units for the discharge gun.
  • The software is scheduled to be downloaded freely from our web-site (The connection cable is necessary in addition).
  • C (Capacitor) and R (Resistor) for the discharge gun is one-body unit.
  • ISO 10605 compliant test can be realized with the optional parts in addition.
  • "3 pre-checking function" to make sure the more confirmable test
  • "CR constant indicator" to make sure the correct unit attachment
  • "One-touch exchange" of its gun head and CR unit realized
  • "Ten-key & Rotary knob" to ease the settings.
  • "Infra-red Remote Controller" to realize the setting remotely from the generator (Standard attached).
  • "Discharge Detecting Function" to realize the air-discharge confirmation.
  • "Lightest discharge gun in the market" to lighten the continuous operation (Excluding the cable and connector)
  • "White LED Irradiator" to facilitate the visualization of the discharging areas.
  • "Control Software" to enable the test result reporting and control with the PC.

Option

MODEL DESCRIPTION image
03-00071A Gun head for constant 330Ω test to GT-30R
Gun head for the discharging gun

03-00103A Gun Head for Micro-gap Tip

03-00072A Gun head for constant 2kΩ test to GT-30R
NEW
03-00103A
Gun Head for Micro-gap Tip to GT-30RA
MODEL DESCRIPTION image
03-00068A Electric field adaptor for GT-30R
03-00068 field adaptor

03-00069A Magnetic Field Adaptor

03-00069A Magnetic field adaptor for GT-30R
03-00070A Magnetic field loop adaptor for GT-30R
MODEL DESCRIPTION image
03-00073A Fast rise time adaptor for GT-30R
09-0006A carry case for GT-30R

09-0006A carry case for GT-30R

09-00006A Carry case for GT-30R
03-00074A Conversion adaptor for GT-30R
MODEL DESCRIPTION image
13-00004A Infra-red remote controller for GT-30R
discharge tips

12-00010A Micro-gap Tip

12-00007A Discharge tip ( conical for GT-30R )
12-00008A Discharge tip ( round for GT-30R )
12-00009A Discharge tip ( spherical 30mm for GT-30R)
NEW
12-00010A
Micro-gap Discharge Tip for GT-30RA
MODEL DESCRIPTION image
03-00061B Pedestal stand for the discharge gun
03-00052B mounting board

03-00052B mounting board

03-00052B Load resistor mounting board (1.2m X 1.2m)
03-00027A Load resistor mounting board
03-00060A GND cable positioner
MODEL DESCRIPTION image
NEW
06-00094A
ESD Current Target for IEC 61000-4-2 Ed.2.0 and ISO 10605 Ed.2.0.
06-00094A Current Target

06-00094A Current Target

06-00068A ESD target calibration adaptor

Shinyei Corporation of America is the sole authorized distributor of NoiseKen products. We offer the most direct sales of NoiseKen products available in the US.

PRODUCTS

  • WEATHERING, CORROSION, AND OPTICAL PROPERTIES
    • Products
    • Weather Meters
      • Super Xenon Weather Meters
      • Xenon Weather Meters
      • Metaling Weather Meters
      • Sunshine Weather Meters
      • Fluorescent Weather Meter FUV
      • UV Fade Meters
      • Spectral Radiation Tester SPX
    • Light Sources
      • 7.5kW Xenon lamp & Sunlight
      • 3kW Metaling Lamp
      • Sunshine Carbon Arc
      • UV Fluorescent Lamp
      • UV Carbon Arc
    • Corrosion Test Chambers
      • Salt Spray Test Chambers
      • CASS Test Chambers
      • Combined Cyclic(CYP)
      • Combined Cyclic(CCT)
      • Custom Test Chambers
      • Options for Corrosion Test Chambers
    • Other Test Chambers
      • Gas Corrosion Test Chambers
      • Ozone Weather Meters
      • Fogging Testers
      • Dust Test Equipment
      • Rain Test Equipment
      • Gravel Test Equipment
      • Abrasion Test Equipment
      • Flammability Test Chambers
    • Optical Property Meters
      • Color Meters
      • Gloss Meters
      • Haze Meters
        • HZ-V3(DISCONTINUED)
        • HZ-V4 (NEW)
      • Image Clarity Meters
      • Reflectance /
        Transmittance Meters and Others
  • EMC EMISSION & IMMUNITY
    • Products
    • ESD simulator
      • ESD Simulator(ESS-S3011A+GT-30RA)
        IEC 61000-4-2 Ed.2 Test Standard
      • ESD Simulator(ESS-PS1+GT-31S) (NEW)
        IEC 61000-4-2 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-S3011A+GT-30RB)
        IEC 61000-4-2 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-S3011A+GT-30R3302KA)
        ISO 10605 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-PS1+GT-31S+ISO-SET-A) (NEW)
        ISO 10605 Ed.2/Ed.3 Test Standard
    • ESD voltage meter (New)
    • Fast Transient Burst Simulators
    • Impulse Noise Simulator
    • Lightning Surge Simulator
    • Lightning Surge Simulator for
      EV fast charging
    • New ISO 7637 Standard Automotive Transient Surge Simulator
    • High Voltage Noise
    • Field Decay Load Dump
    • TEM Horn Antenna
    • Thin Plate Broadband Antenna
      • Thin Plate Broadband Antenna(NKU07M32G/NKU2460G)
      • Thin Plate Broadband Antenna(NKU5080G) (NEW)
    • Electromagnetic Field Visualization System
  • DROP & SHOCK
    • Products
    • Drop Test Systems
      • DT-202 series
      • DT-205 series
      • DT-20e
      • RDT-1000
      • EMH series
    • Shock Test Systems
      • PDST series
      • HDST series
      • ASQ series
      • MDST series
      • SDST series
      • PST-300
      • CDS series
      • Accessories
    • Material Testing System
      • ACST series
    • Acceleration Measurement
      • SM-500
      • AccStick
    • Field Data Recorder
      • DER-1000
  • VIBRATION
    • Products
    • Basics of Vibration Testing
    • Multi-Axis Vibration Test Systems
    • Single-Axis Vibration Test Systems
    • Vibration Combined Environmental Test Systems
    • Digital Vibration Controller
  • BALL BEARINGS
    • Products
    • Stainless Steel Ball bearing by AFC bearings
    • AISI 440C Stainless Steel Ball Bearings
    • AISI 304 Stainless Steel Ball Bearings
    • AISI 630 Stainless Steel Ball Bearings
    • 2C Series - Ceramic Bearings
    • Grease Free Bearings
    • 1T Series - Pure Titanium Bearings
    • SH series - Stainless Ball Bearing with Aligning Ring
    • SSXC Series - Stainless steel ball bearings with setscrews
    • SF series - AISI440C Flanged Bearing Units
  • MECHANICAL & PHYSICAL
    PROPERTY OF MATERIALS
    • Products
    • By Test Applications
      • Plastic / Resin / Rubber
    • By Test Properties
  • TEMPERATURE SENSING
    • Products
    • Temperature Probes
      • Stationary Surface Temperature Probes
        • SX Series
        • AX Series
        • WE Series
      • Moving/Rotating Surface Temperature Probes
        • U Series
      • Moving Wire / Tube Probe
      • Liquid / Semiliquid Probes (Needle type)
      • Special Application Temperature Probes
        • AW Series(for Wafer)
    • Thermometers
      • Handheld Thermometer Model HR series
      • Handheld Thermometer
      • Thermoprinter
      • Thermologger
        • Thermologger AM-8000
        • Thermologger AM-9000
      • Transducer (Transmitter) HPD Series
      • Non-contact thermometer
      • Soldering iron thermometer
      • Fiber optic thermometer
    • Application
    • Accessories
    • Technical Guide
    • FAQ
  • ENERGY DISPERSIVE X-RAY FLUORESCENCE ANALYZERS
    • Products
    • VoXER
    • OURSTEX 170
    • OURSTEX 101FA
    • OURSTEX 100FA
    • OURSTEX 100TA-F
    • OURSTEX 200TX
    • OURSTEX 160
    • OURSTEX 160RoHS
    • OURSTEX 160M
  • NO-DOOR ENVIRONMENTAL CHAMBERS
    • LST Series
  • ENVIRONMENTAL &
    THERMAL SHOCK CHAMBERS
    • Products
    • Temperature and Humidity
    • Thermal Shock
    • Compact Temperature and Humidity
  • HUMIDITY, PARTICLE, AND
    GAS SENSING
    • Products
    • Humidity Sensing
      • humidity Sensors
      • humidity and Temperature
      • Thermo-hygrometer/Recorder
      • Temperature humidity converter
      • TDLAS Moisture Analyzers
      • Humidity Generators
    • Particle Sensing
      • Particle Sensor Unit
      • Particle Sensing Monitor
      • Pollen Sensor
    • IAQ Sensing
      • Handheld Odor Meter
  • CONTRACT TEST SERVICE

  • SUGA
  • NOISEKEN
  • SHINYEI
  • VIBRATION
  • BALL BEARING
  • YASUDA
  • ANRITSU
  • OURSTEX
  • ETAC
sca Shinyei Corporation of America

Head Office
1120 Avenue of the Americas,
4th Floor NewYork, NY 10036
TEL:917-484-7884 / FAX: 212-704-4206

CONTACT US
sca Shinyei Corporation of America

Mexico Liaison Office
Blvd. Bernardo Quintana No.7001,
Q7001 Torre 1 - Int. 808,
Col. Centro Sur, C.P. 76090,
Queretaro, QRO, Mexico
TEL:442-229-0767

CONTACT US
© 2018 Shinyei Corp. of America All rights reserved.
