  4. Thin Plate Broadband Antenna(NKU5080G)

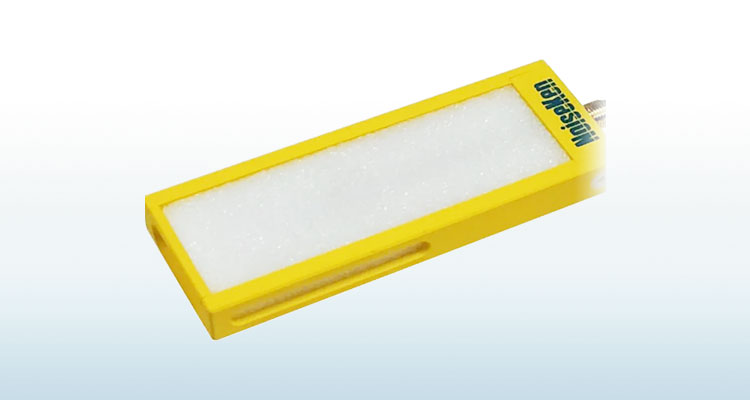

Broadband Sleeve Antenna (NKU5080G) per ISO 11451-3 and ISO 11452-9

Broadband Sleeve Antenna (NKU5080G) per ISO 11451-3 and ISO 11452-9

The Broadban sleeve antenna was developed to efficiently perform proximity radiation immunity testing.
The international standards ISO11451-3/ISO11452-9 stipulate proximity radiation immunity testing methods that assume electromagnetic interference when wireless transmitters such as smartphones and Wi-Fi devices are placed in close proximity to other electronic devices.

This product is a small, lightweight, high-gain antenna used in these standards that covers a wide bandwidth and has good radiation characteristics. Since it can be used in the wide band from 5GHz to 8GHz, it can be used to perform proximity radiation immunity testing assuming wireless LAN in the 6GHz band (up to 7.125GHz).

SPECIFICATION

Model NKU5080G
Frequency range 5GHz~8GHz
VSWR ≦2(5~7.5GHz) / ≦2(7.5~8GHz)
Maximum power input 10W(CW)
Input impedance 50Ω
Connector SMA(J)
Dimensions W33×D9.5
Weight 14g

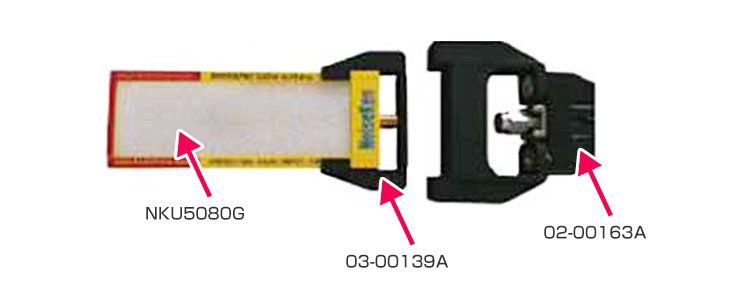

When NKU5080G is used with flexible handle(02-00163A), proprietary attachment(03-00139A) is needed.
