OURSTEX 160 - Energy Dispersive X-ray Fluoresence Analyzer

OURSTEX 160 - Energy Dispersive X-ray Fluoresence Analyzer

Exclusively used for measurement of hazardous elements

PDF file to download

CONCENTRATION OF ELEMENTAL TECHNOLOGIES WITH HIGH-SENSITIVITY AND HIGH-PRECISION

The energy dispersive X-ray fluorescence analyzer irradiates a primary X-ray to a sample from its X-ray tube. The fluorescent X-ray generated by the analyzer is measured with a semi-conductive detector. Then you can conduct nondestructive qualitative and quantitative analyses of a sample, regardless of its shape.

With use of electronic cooling system Silicon Drift Detector (SDD) for semiconductor detection needing no liquid nitrogen, you can attain analysis of a high count rate and high resolution power in combination with Digital Signal Processor (DSP).

In order to enhance analytical performances, the analyzer is prepared to satisfy the conditions for optical excitation what can maximize energy resolution power and count sensitivity.

OURSTEX160


Compliance with the Soil Pollution Control Law

Following the enactment of "Soil Pollution Control Law" effective on February 15, 2003, the implementation of content test is also mandatory in addition to dissolution test.

With OURSTEX 160 you can make an on-site judgment easily and quickly about the standard value of heavy metal content because of its compactness and portability.

●Designated Hazardous Substances and Criterion in Controlled Area (Excerpt in part)

Substances for Analysis Element Soil Elution Criterion Soil Content Criterion
Cadmium and its compounds Cd 0.01 mg/ℓ or less 15Omg/kg or less
Lead and its compounds Pb 0.01 mg/ℓ or less 15Omg/kg or less
Hexavalent chromium compounds Cr 0.05 mg/ℓ or less 250mg/kg or less
Arsenic compounds As 0.01 mg/ℓ or less 15Omg/kg or less
Mercury and its compounds Hg 0.0005 mg/ℓ or less 15mg/kg or less
Selenium and its compounds Se 0.01 mg/ℓ or less 15Omg/kg or less

Shinyei Corporation of America is the authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.

  • Description
  • Features
  • Application
  • Specification
  • Dimensional drawing

Features

  • Small-sized and lightweight (21 kg+ 9kg), most suited analyzer for on-site analysis.
  • Quickly attainable nondestructive analysis of composition
  • Enhanced sensitivity targeting medium or heavy metal elements
  • Only AC1 OOV- SA is used for utility. (No liquid nitrogen or cooling water)
  • No setting of controlled area is required.

Application

  • Hazardous heavy metal analysis in the soil
  • Analysis of environmental industrial waste materials
  • Research of pollution by heavy metals at factory sites, drilling mud in tunnels, etc

Specification

Analytical principle Energy Dispersive X-ray Fluorescence Analyzer
Analytical object Environmental samples (solid, powder and liquid) for soil analysis
Element to be analyzed S, Cr, As, Se, Cd, Hg, Pb (13AI to 92U)
Filtration mechanism Primary filter (3 types) / Secondary filter-Auto change for one type only
Shape of sample chamber 78mm φ x 55mm H
Environment of sample clamber Atmospheric
Rated X-ray output 48kV、2mA, 50W maximum
Detector Electronic cooling Silicon Drift Detector
Counting circuit Digital processing type
Use conditions Temprature : 5 ~ 27 ℃
Humidity : 20 ~ 75 %
Power supply: AC10OV, 5A(50/60Hz)
Facility : Grounding Class D
Other (optional) Ink jet color printer and mouse
Heavy metal sample for analysis management
(for creation of analytical line)

Before an implementation of OURSTEX 160, a notification to Labor Standards Supervision Office is required.

Caution : For your correct and safe use, please be sure to read the operation manual in advance.

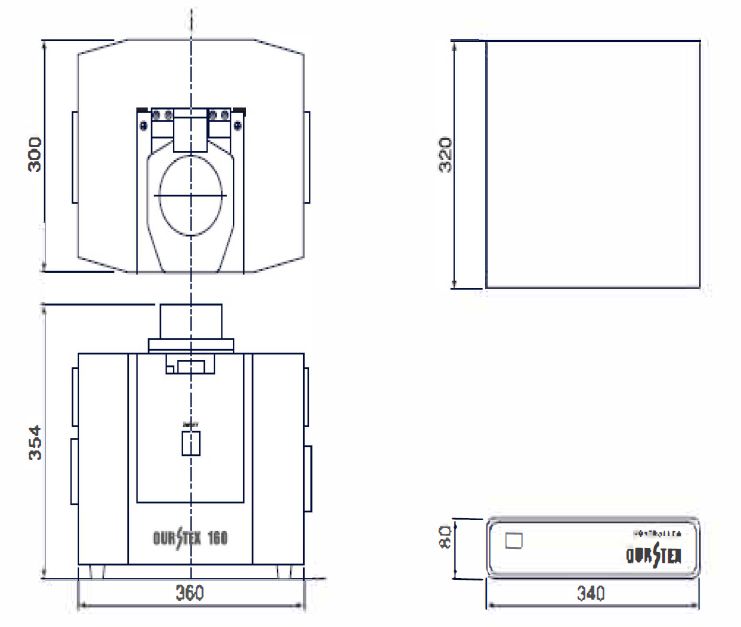

Dimensional drawing

Dimensional drawing
● The product specifications or designs in this literature are subject to change without notice for improvements.
● The product colors may differ from actual ones due to printing.

Shinyei Corporation of America is the sole authorized distributor of OURSTEX products. We offer the most direct sales of OURSTEX products available in the US.
