UV Fade Meters
U48AU / U48 / U48S / U48AUH / U48H / U48AUB / U48B / U48AUBR / U48BR / U48AUBBR / U48BBR
Light Source: UV Carbon Arc

UV Fade Meters are designed to reproduce outdoor and indoor deterioration factors such as sunlight, temperature, rainfall and dew. Test method using the UV Carbon Arc has the oldest history and enough experiences especially in fabric and textile industries.

Related Standards : ISO 11431, ISO 2135, ASTM D5031, ASTM G151, ASTM G153, JIS A 1415, JIS A 1439, JIS K 5701-1, AATCC TM16, JIS L 0842, JIS K 6404-4, JIS D 0205, SAE J2020, JIS D 0202, JIS E 4037, JIS Z 0237, JIS Z 1528, JIS B 7751
*Subject to the accessories.

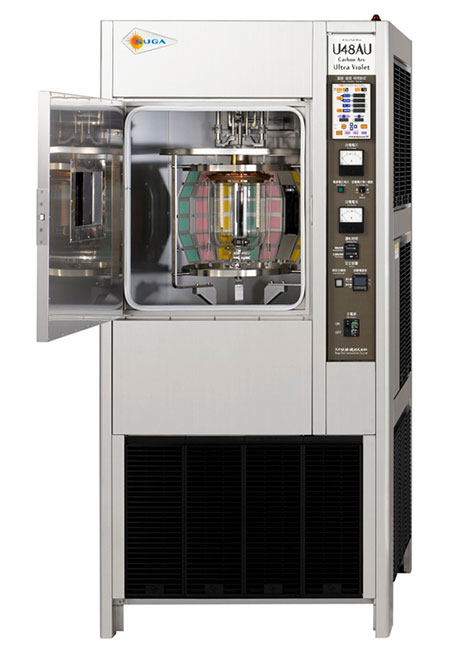

UV Fade Meter U48AU

  • High reproducibility and stability
  • Continuous testing for48 hours
  • Capable of temperature and humidity control
  • Irradiance 500W/m2 ±100W/m2 at 300 to 700nm
  • Specimen Capacity: 102 pcs (65x55x1mm)
  • Temp. and Hum. range : BPT63±3℃, 35~50±5%rh
  • Low temp. model U48S with refrigeration system is an option.
  • High temp. model U48AUH / U48H (BPT95℃) is an option.
  • Automatic BPT Control model U48AUB / U48B is an option.
  • BPT Recording model U48AUBR / U48BR is an option.
  • Both Automatic BPT Control with BPT Recording model U48AUBBR / U48BBR is an option.
  • U48AUBBR / U48BBR is an option.

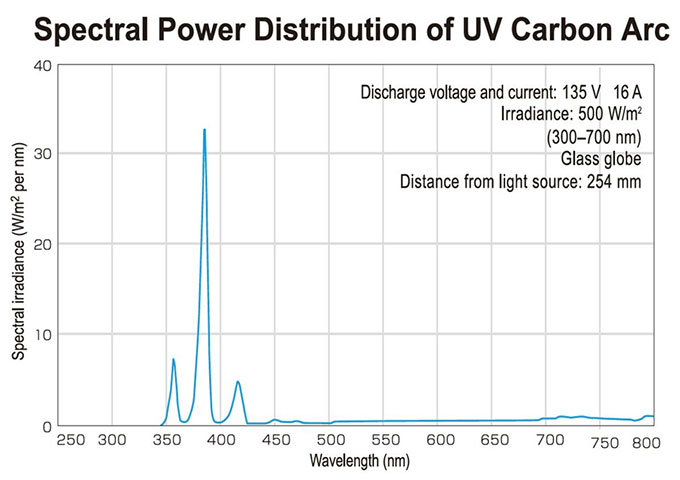

UV Carbon Arc
UV Fade Meter U48AU UV Fade Meter U48AU

UV Fade Meter U48

  • Standard model with cost-efficiency.
  • Continuous testing for48 hours
  • Irradiance 500W/m2 ±100W/m2 at 300 to 700nm
  • Specimen Capacity: 102 pcs (65x55x1mm)
  • Temp. and Hum. range : BPT63±3℃, under 50%rh (not controlled).
  • Wide variety of options and customization is available.
UV Carbon Arc

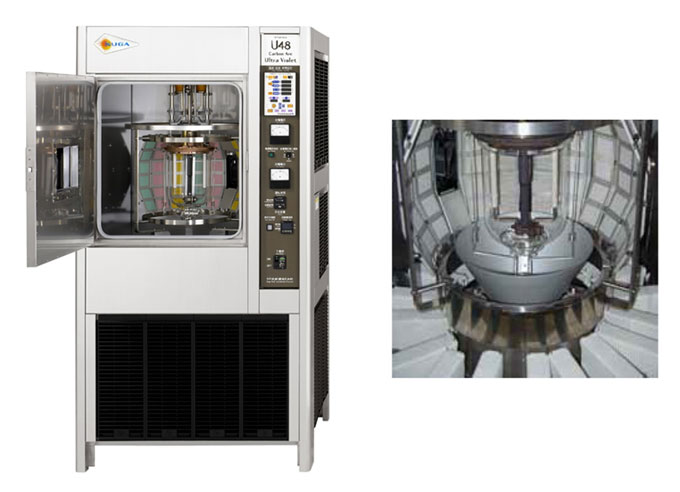

UV Fade Meter U48

Standard Features

Name UV Fade Meter
Model U48AU U48
Light Source UV Long-Life Carbon Arc Lamp UV Long-Life Carbon Arc Lamp
Light Source Qty. 1 1
Continuous Lightning Time 48 hours 48 hours
Irradiance Wavelength 300 to 700nm 500±100W/m2
(at 390 to 700nm)
500±100W/m2
(at 390 to 700nm)
Test Item Light 〇 〇
Light + Spray on front face (Rain) - -
Dark - -
Dark + Spray on back face (Dew) - -
Temperature /
Humidity Range
Light BPT 63±3℃ (at 28~30W/m2) 63±3℃ (at 28~30W/m2)
Humidity 35~50±5%rh 50%rh or under (not controlled)
Light + Spray on
front face (Rain)
Chamber Temperature (CAT) - -
Dark Chamber Temperature (CAT) - -
Humidity - -
Dark + Spray on
back face (Dew)
Chamber Temperature (CAT) - -
Specimen Capacity excl. black panel sensor
and light receptor
102 (65x55x1mm) 102 (65x55x1mm)
Specimen Holder Inclined type 18 18
Specimen Rack Diameter φ508mm (200 in) φ508mm (200 in)
Rotation Speed 3 rpm 3 rpm
Electrical Specifications 50/60Hz Single phase, 200V, 41A Single phase, 200V, 21A
Earth Leakage Breaker (ELB) ELB: 50A ELB: 40A
Water Consumptions For wet bulb pot Tap water Pure water approx. 7L/h approx. 0.5L/h
For humidifier Pure water
For specimen spray Pure water - -
For wall cooling and back spray Tap water - -
For chamber temp.
control / refrigerator
Cooling tower water - -
Outer Dimensions Width x Depth x Height (including pipings) approx. 95x103x205cm (37.4x40.6x80.7in) 95x88x175cm (37.4x34.6x68.9in)
Operating Weight approx. 300kgs (661lbs) 280kgs (617lbs)
Standard Accessories Radiometer for Irradiance Calibration Optional Optional
Irradiance Automatic Control System - -
Black Panel Temperature Automatic Control System Optional Optional
Others - -

***The specifications above are subject to change without notice.
