ANRITSU Handheld Thermometer / Model HR series

Handheld Thermometer HR series feature high accuracy, reliability, and repeatability for all general applications. Easy to use, and long battery life.

Specifications
Catalog

Basic Model
Standard Model
High Function Model
LED Display Model
Memory Model
Basic Model ℃/℉
Standard Model ℃/℉
Specifications

Table of models and functions

ANP model	HR-1150K	HR-1250K	HR-1350K	HR-1351K	HR-1450K	HR-1550K	HR-1650K	HR-1750K
ANP model	HR-1150E	HR-1250E	HR-1350E	HR-1351E	HR-1450E	HR-1550E	HR-1650E	HR-1750E
ASP model	HR-1100K	HR-1200K	HR-1300K	HR-1301K	HR-1400K	HR-1500K	ー	ー
ASP model	HR-1100E	HR-1200E	HR-1300E	HR-1301E	HR-1400E	HR-1500E	ー	ー
Water proof	〇	〇	ー	ー	〇	ー	〇	〇
Display	LCD	LCD	LCD	LCD	LED	LCD	LCD	LCD
Back Light	ー	〇	〇	〇	ー	〇	ー	〇
Auto power-off	〇	〇	〇	〇	〇	〇	〇	〇
Hold	〇	〇	〇	〇	〇	〇	〇	〇
P/V Hold	ー	〇	〇	〇	ー	〇	ー	〇
Resolution change	ー	〇	〇	〇	ー	〇	ー	〇
Calibration	ー	ー	〇	〇	ー	ー	ー	ー
Alarm output	ー	ー	〇	〇	ー	ー	ー	ー
Analog output	ー	ー	ー	〇	ー	ー	ー	ー
Memory function	ー	ー	ー	ー	ー	〇	ー	ー
°C/°F change	°C	°C	°C	°C	°C	°C	°C/°F	°C/°F

Thermometer Lists

Basic ModelHR-1150K / HR-1150E (Input connector ANP) HR-1100K / HR-1100E (Input connector ASP)

Measurement Range: K -200 to 1370℃ / E -200 to 800℃

Waterproof
Waterproof Equivalent to IPX5
Hold
Measurement holds the present readings with the HOLD key.
Auto Off
Automatic power off after 5 minutes.

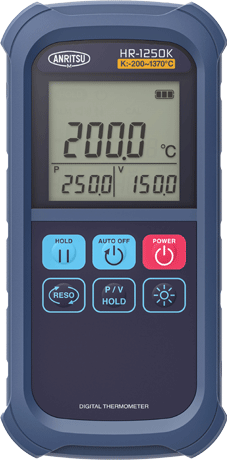

Standard Model HR-1250K / HR-1250E (Input connector ANP) HR-1200K / HR-1200E (Input connector ASP)

Measurement Range: K -200 to 1370℃ / E -200 to 800℃

Waterproof
Waterproof Equivalent to IPX5
Hold
Measurement holds the present readings with the HOLD key.
Auto Off
Automatic power off after 5 minutes.
Resolution
Resolution changes with the RESO key.
Peak (Max.) / Valley (Min.) Hold
Peak (Max.) and Valley (Min.) values are displayed with the P/V HOLD key on the sub-display.
Blacklight
Backlight turns on with this key, and the LCD display is visible even in dark places.

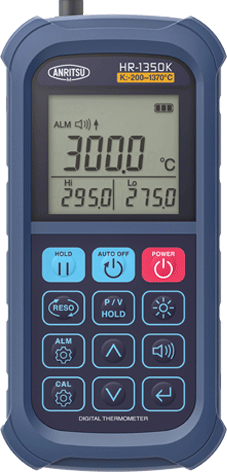

High Function Model HR-1350K / HR-1350E (Input connector ANP) HR-1300K / HR-1300E (Input connector ASP)

Measurement Range: K -200 to 1370℃ / E -200 to 800℃

Hold
Measurement holds the present readings with the HOLD key.
Auto Off
Automatic power off after 5 minutes.
Resolution
Resolution changes with the RESO key.
Peak (Max.) / Valley (Min.) Hold
Peak (Max.) and Valley (Min.) values are displayed with the P/V HOLD key on the sub-display.
Blacklight
Backlight turns on with this key, and the LCD display is visible even in dark places.
Calibration Set
Calibration. The displayed value can be adjusted with the CAL SET key.
Alarm Set
Alarm output when readings go beyond the high or low limits.

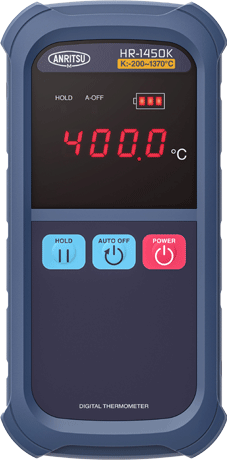

LED Display Model HR-1450K / HR-1450E (Input connector ANP) HR-1400K / HR-1400E (Input connector ASP)

Measurement Range: K -200 to 1370℃ / E -200 to 800℃

Waterproof
Waterproof Equivalent to IPX5
Hold
Measurement holds the present readings with the HOLD key.
Auto Off
Automatic power off after 5 minutes.

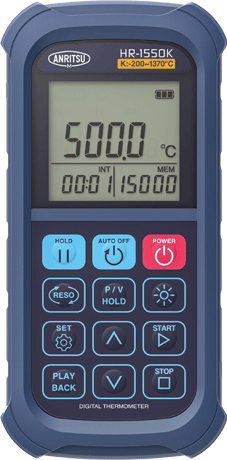

Memory Model HR-1550K / HR-1550E (Input connector ANP) HR-1500K / HR-1500E (Input connector ASP)

Measurement Range: K -200 to 1370℃ / E -200 to 800℃

Hold
Measurement holds the present readings with the HOLD key.
Auto Off
Automatic power off after 5 minutes.
Resolution
Resolution changes with the RESO key.
Peak (Max.) / Valley (Min.) Hold
Peak (Max.) and Valley (Min.) values are displayed with the P/V HOLD key on the sub-display.
Blacklight
Backlight turns on with this key, and the LCD display is visible even in dark places.
Memory Set
Memory function stores readings at user-selected time intervals with the SET key.

Basic Model ℃ / ℉ HR-1650K / HR-1650E (Input connector ANP)

Measurement Range: K -200 to 1370℃ / E -200 to 800℃
Measurement Range: K -328 to 2498℉ / E -328 to 1472℉

Waterproof
Waterproof Equivalent to IPX5
Hold
Measurement holds the present readings with the HOLD key.
Auto Off
Automatic power off after 5 minutes.
℃ / ℉ Switching
Switchable ℃ (Celsius) and ℉ (Fahrenheit) with the key.

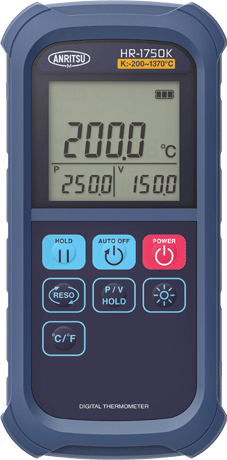

Standard Model ℃ / ℉ HR-1750K / HR-1750E (Input connector ANP)

Measurement Range: K -200 to 1370℃ / E -200 to 800℃
Measurement Range: K -328 to 2498℉ / E -328 to 1472℉

Waterproof
Waterproof Equivalent to IPX5
Hold
Measurement holds the present readings with the HOLD key.
Auto Off
Automatic power off after 5 minutes.
Resolution
Resolution changes with the RESO key.
Peak (Max.) / Valley (Min.) Hold
Peak (Max.) and Valley (Min.) values are displayed with the P/V HOLD key on the sub-display.
Blacklight
Backlight turns on with this key, and the LCD display is visible even in dark places.
℃ / ℉ Switching
Switchable ℃ (Celsius) and ℉ (Fahrenheit) with the key.

Specification

Model			HR-1100 HR-1150 HR-1650	HR-1200 HR-1250 HR-1750	HR-1300 HR-1350	HR-1301 HR-1351	HR-1400 HR-1450	HR-1500 HR-1550
Display			LCD				LED	LCD
Waterproof specifications / Equivalent to IPX5			〇	〇	-	-	〇	-
Input connector			ASP model：HR-10 /ANP model：HR-15
Input type			Thermocouple Input: Type E, K　(Not switchable)
Channel			1ch
Signal source resistance			MAX.1 Kohm
Measurement Range	1°C Resolution	E	-200～800°C
	1°C Resolution	K	-200～1370°C
	0.1°C Resolution	E	-104.9～504.9°C(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
	0.1°C Resolution	K	-104.9～504.9°C(Switches automatically to 1°C resolution range when messured temperatures fall outside the 0.1°C resolution range.)
Measurement Accuracy	1°C Resolution	0°C～	±(0.1% of reading +1°C)
	1°C Resolution	～0°C	±(0.5% of reading +1°C)
	0.1°C Resolution	0°C～	±(0.05% of reading + 0.2°C)
	0.1°C Resolution	～0°C	±(0.15% of reading + 0.2°C)
Reference junction compensation accuracy			±0.2°C at 25°C±10°C
Temperature Coefficient*1			±0.02×Δt°C (Add the value obtained by multiplying the excess temp.Δt[°C] by a coefficient to the total accuracy. e.g. ±0.3°C is added at room temp. of 0°C or 50°C)
Operation Environment			0 to 50°C, 0 to 80%RH (Non condensing)
Storage Environment			-20 to 50°C, 0 to 85%RH (Non condensing)
Battery life			approx.900h	approx.900h	approx.600h	approx.20h*2	approx.300h	approx.550h
Power supply(Dry battery)			4 AA Alkaline batteries
Power supply(AC power)			-	-	available		-	available
Sampling rate			approx.200ms
Linearlizer			Digital Linearizer method (Compliant with IEC 60584-1 (2013))
Dimensions(mm)			approx. 82(w)×166(H)×36(D) [Protruded parts excluded]
Weight			approx. 350g [Include Batteries]
Supplied accessories			Manual,Test report,Soft case, Hand strap,4 AA Alkaline batteries
Optional accessories			-	-	Alarm output cable		-	Communication cable,software
Optional accessories			-	-	-	Analog output cable	-	-
Alarm Output			-	-	〇TABLE1	〇TABLE1	-	-
Analog Output			-	-	-	〇TABLE2	-	-
Memory function			-	-	-	-	-	〇TABLE3
Compatible standards(CE)			EMC：EN61326-1：2013, EN 61326-2-1：2013 classA Table2（ Industrial） RoHS：IEC EN 63000：2018

*1 Only when the temp. exceeds 25°C ±10°C
*2 Approx. 400h when the analog output is switched always off.

TABLE 1 Alarm Output : HR-13:0, HR-13*1

Output Pattern	Upper Limit	Lower Limit
More than upper limit	Close	Open
Between upper and lower limit	Open	Open
Less than lower limit	Open	Close
Alarm output cable	ANGHA-1.5(accessory)

※ The alarm output uses a photo MOS relay. ON resistance（internal protection resistance 400Ω, photo MOS relay ON resistance 50Ω） Drive voltage MAX.25V

TABLE 2 Analog output : HR-1301,HR-1351

Rate	1ｍV/°C(1°C resolution)	10ｍV/°C(0.1°Cresolution)
Range	The entire measurement range with 1°C resolution	The entire measurement range with 0.1°C resolution
Analog output conversion accuracy(under 25°C±10°C)	Equivalent to the value obtained by adding ±1°C(1mV)to the measurement accuracy	Equivalent to the value obtained by adding ±0.1°C(1mV)to the measurement accuracy
Temperature conficient*1	±(0.1ｍV/°C×Δt°C) e.g.±1.5ｍV(2°C) is added at room temp.of 0°C or 50°C	±(0.1ｍV/°C×Δt°C) e.g.±1.5ｍV(0.2°C) is added at room temp.of 0°C or 50°C
When the probe is disconnected	Approx.-2.3V
Measurement range+over	Approx.5.1V
Measurement range-over	Approx.-2.2V
Insulation resistance	100MΩ/DC500V(between input and analog output)
Withstand voltage	300Vpｰp(between input and analog output)
Cable	ANGHA-1.5(accessory)

＊1 When the temperature exceeds 25°C±10°C ,multiply the excess temperature Δt°C by a coefficient and add it to the analog output conversion accuracy.
※Regarding analog output: The displayed value is D/A converted and output.The update timing is about 200ms, and the output resolution isin 1mV units.When not using the analog output, turn off the analog output.

TABLE3 Memory function : HR-1500, HR-1550

Time interval	second:1, 5, 10, 30 minutes:1, 5, 10, 30, 60 and manual memory
Memory capacity	19999data
