U Series
For the temperatures of moving or rotating surfaces.Measures up to 250C / 482F.
If you are going to measure more than 250C / 482F, go and see
S series.

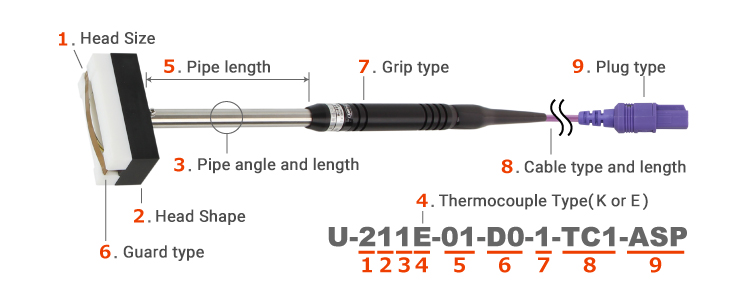

Model number
① Head Size
U-211K-01-D0-1-TC1-ANP
-
-
1 : For objects with small measurement area
Measure up to 24 km /h
-
-
2 : Fore more stable measurement
Measure up to 36 km /h
② Head Shape
U-211K-01-D0-1-TC1-ANP
- Polyimide coating thermocouple + Teflon guard
- Polyimide coating thermocouple + Bearing rollers
- Polyimide coating thermocouple + Teflon rollers
- Teflon coating thermocouple + Teflon guard
- Teflon coating thermocouple + Bearing rollers
- Teflon coating thermocouple + Teflon rollers
- No coating thermocouple + Teflon guard
- No coating thermocouple + Bearing rollers
- No coating thermocouple + Teflon rollers
③ Pipe angle
U-211K-01-D0-1-TC1-ANP
-
- 1 : Straight
-
- 2 : 45 degree
-
- 3 : 90 degree
-
- 4 : Elbow
-
- 5 : 45 degree
-
- 6 : 90 degree
-
- 7 : Elbow
-
- 8 : Direct
-
- 9 : Direct
④ Thermocouple Type
U-211K-01-D0-1-TC1-ANP
K(Chromel - Constantan) or E(Chromel - Alumel)
*The thermocouple type of a thermometer and a tempearture sensor probe should be same
⑤ Pipe length
U-211K-01-D0-1-TC1-ANP
| 30 mm | 100 mm | 200 mm | 300 mm | 400 mm | 500 mm |
|---|---|---|---|---|---|
| 00 | 01 | 02 | 03 | 04 | 05 |
⑥ Guard type
U-211K-01-D0-1-TC1-ANP
-
-
D0
U-1**：For flat to φ300mm
U-2**：For flat to φ400mm
-
-
D1
For φ420～300mm
(Only for U-21*/24*/27*)
-
-
D2
For φ320～160mm
(Only for U-*1*/*4*/*7*)
-
-
D3
For φ200～100mm
(Only for U-*1*/*4*/*7*)
-
-
D4
For φ120～60mm
(Only for U-*1*/*4*/*7*)
⑦ Grip type
U-211K-01-D0-1-TC1-ANP
-
- 1 : With grip
-
- 0 : No grip
⑧ Cable type and length
U-211K-01-D0-1-TC1-ANP
TC
Silicon cable ( φ4mm, heat resistance up to 240℃ / 464F)
*Length available from 1m
⑨ Plug type
U-211K-01-D0-1-TC1-ANP
-
- ANP : Mniture Plug
-
- ASP : Standard Plug
-
- W : Without Plug
-
- WT 3/4/5 : Spade Terminal
-
- WC 3/4/5 : Ring Terminal
-
- WA : Banana Plug
-
- ANJY : Y Terminal For M4
