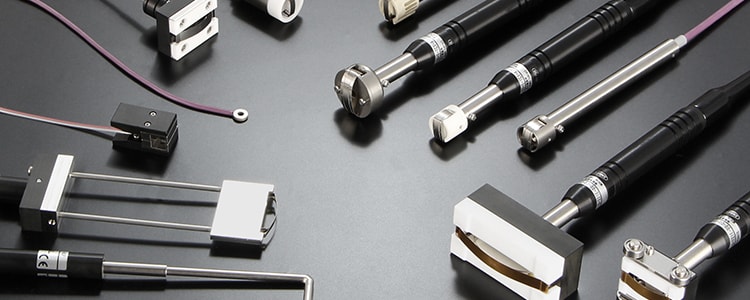

Temperature Probe
Anritsu is the top manufacturer and professional consultant of temperature measurement products. The wide range of thermocouple probes and thermometers must meet your needs.
Shinyei is the only authorised and exclusive distributor of Anritsu Meter in North, Central and South America.

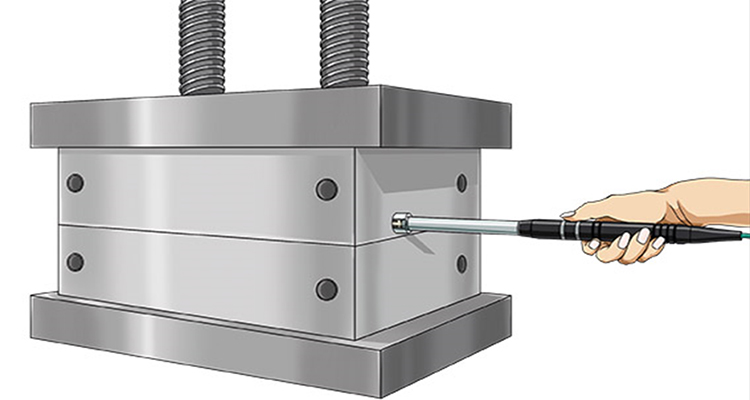

Stationary Surface Temperature Probes
We supply a wide range of stationary surface probes for any kinds of application.The temperature range is available from - 50 to 1100℃ (≒-58 to 2012 ℉), four types of pipe angles (straight, 45 deg., 90 deg., elbow) are available, pipe and cable length are flexible so you can choose the length you need.
If you cannot find the one with the specification you are looking for, please contact us for customising. We are happy to discuss with you !
Some of the popular applications for the stationary surface probes are as follows;
aluminum (extrusions, forging, casting), paper, fiber, printing, iron and steel.

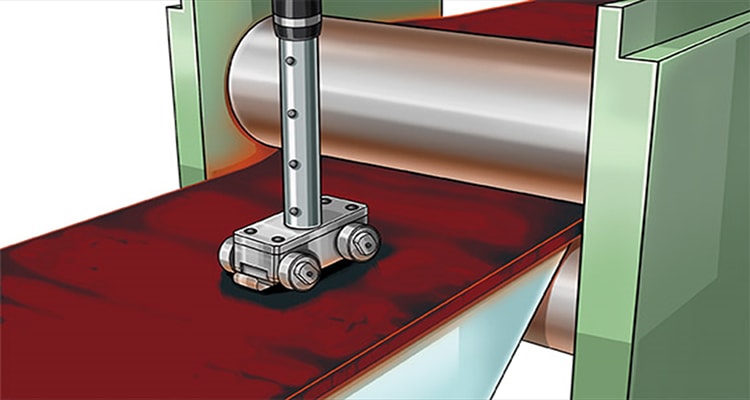

Moving/Rotating Surface Temperature Probes
These temperature probes are suitable for measuring the moving or rotating surface.One of the pros of using them is you do not need to stop the process.The temperature range is available from - 50 to 800℃ (≒-58 to 1472 ℉), five types of pipe angles (straight, 45 deg., 90 deg., elbow, direct on the surface) are available, pipe and cable length are flexible so you can choose the length you need.
Maximum velocity is up to 50km per hour (≒ 31 miles per hour) .Again, customize requests are more than welcomed!
Some of the popular applications for these probes are as follows;
moving aluminum / metal billets and sheets, paper, printing etc
Moving Wire / Tube Probe
This probe is specialised in measuring the moving wires without stopping the process.
The temperature range is available from - 50 to 250℃ (≒ -58 to 482 ℉). Wire diameter from φ 0.65 to 15 mm (≒ 0.001 to 0.02 inches) are measurable.
Some of the popular applications for this probe is as follows; aluminum wires, PC strings, engine oil tubes, brake wires, electrical wires etc
Liquid / Semiliquid Probes (Needle type)
This probe is for measuring the inside temperature.Water-proof type (BW series) and Needles-replaceable type are available (BT series). The temperature range is available from - 200 to 500℃ (≒ -328 to 932 ℉).
Some of the popular applications for this probe is as follows;
Tires, molten metals and plastics, meats, muffins, patties, water, oil, air, gas etc
Special Application Temperature Probes
Our range of special application temperature sensor probes includes the followings; Molten metal probes, Thin-head micro sensor probes, High temperature probes (up to 1200℃) Slit type probes, Internal and external wall of pipes probes, Drop probesFlat leaf probes, soft body probes, Rounded surface probes, Length changeable probes
