Abrasion Test Equipment
NUS-ISO3 / NUS-ISO3H / SD-1 / JD-3

The Abrasion Testers are for testing abrasion resistance of aluminum anodic oxide films, plating, coatings, plastics, rubber and other products. All kinds of grinding paper can be used, and with a wide range of specimen holders available, not only plate-shaped specimens but specimens of many different shapes can be attached to the equipment. Tests can be designed flexibly in accordance with the specimen's actual use condition. Applicable test standards are JIS H 8682-1, JIS H 8682-2, JIS H 8682-3, JIS H 8503, ISO 7784-3, ISO 8251, ISO 10074, ISO 28340, ASTM D 6037 and more.

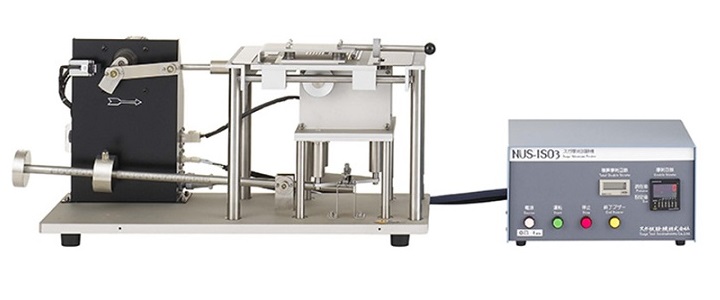

Abrasion Testers NUS-ISO3 / NUS-ISO3H

Test standard : JIS H 8682-1, JIS H 8503, ISO 7784-3, ISO 8251, ISO 10074, ISO 28340, ASTM D 6037 and more.

✓Unsurpassed reproducibility and linearity

For each round trip of the specimen, the wear wheel pressed against the underside of the specimen rotates by 0.9°. Since a new wear surface always wears the specimen, there is no slippage caused by wear debris, resulting in good test reproducibility and excellent linearity between the number of wear cycles and the amount of wear. It is ideal for evaluating the wear resistance of aluminum anodic oxide coatings, plating, coatings, plastics, rubber, digital printed photographs, wristwatches, etc.

Abrasion Test Equipment

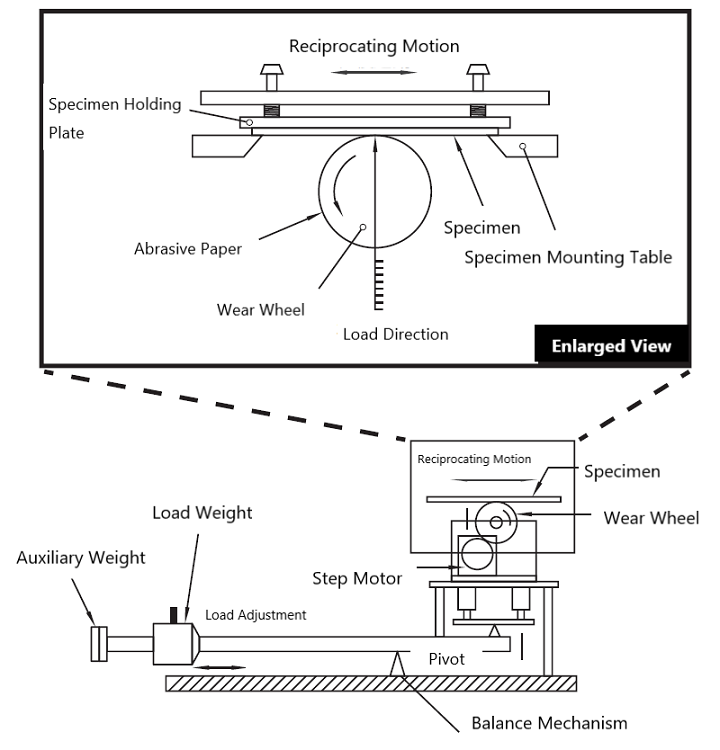

Structure

Structure

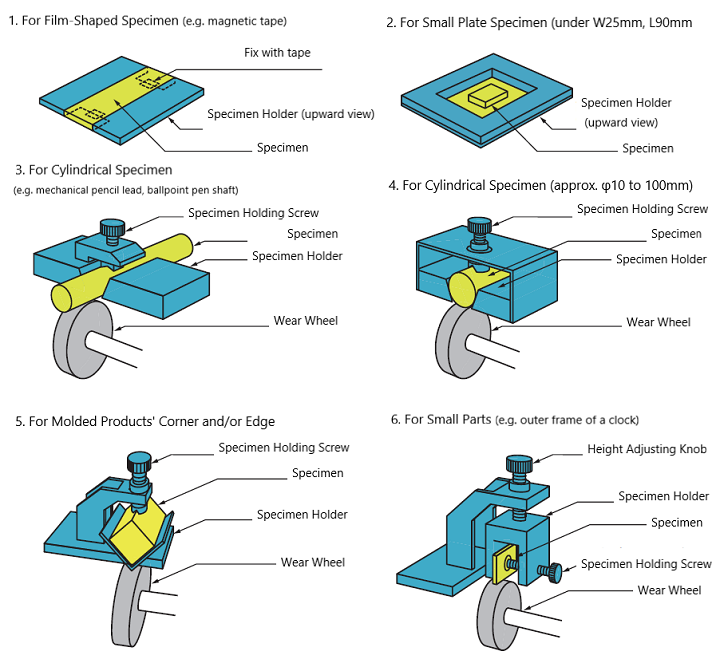

Specimen holder options are available to suit various specimen shapes. Abrasive paper can be freely selected.

Specimen Holder Options

Specimen Holder Options
Model NUS-ISO3 NUS-ISO3H
Temperature Control of Specimen Surface N/A Ordinary Temperature to 250±5℃
Wear Area approx. 30 x 12mm
Wear Load 0.98N to 29.42N
Wear Speed 40 times/min. (Option: 60 times/min. as per JIS H 8503)

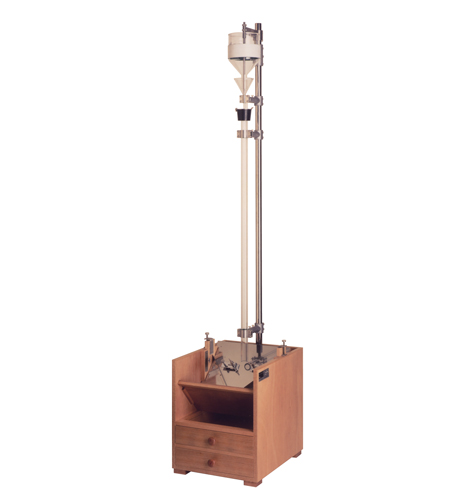

Falling Sand Abrasion Tester SD-1

Test standard : JIS H 8682-3, ISO 8251, ISO 28340

The Falling Sand Abrasion Tester SD-1 is mainly used to test the abrasion resistance of anodic oxide coatings on aluminum and aluminum alloys, plastic lenses of eyeglasses, etc. The test is performed by natural fall of sand from the upper hopper, so no power supply is required and the test can be performed easily.

Falling Sand Abrasion Tester SD-1
Abrasive Material Falling Height 1,000mm
Abrasibe Material Falling Amount 320 ± 10g/min
Specimen Holding Angle 45° tilt to vertical, height adjustable
Specimen Dimensions 50 x 40mm
Main Unit Dimensions Approx. W35 x D42 x H170cm

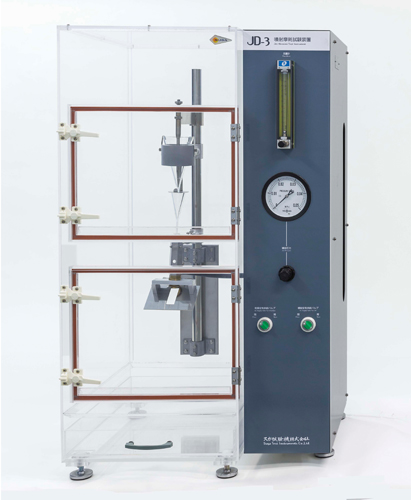

Jet Abrasion Tester JD-3

Test standard : JIS H 8682-2, ISO 8251, ISO 10074, ISO 28340

The Jet Abrasion Tester JD-3 is to test the wear resistance of anodic oxide coatings on aluminum and aluminum alloys. Sand is injected into the specimen at a specified air pressure for wear testing. It is suitable for the evaluation of hard coatings, thick films, and non-flat surfaces.

Jet Abrasion Tester JD-3
