ESD simulator ISO 10605 Ed.2 Test Standard

Shinyei Corporation of America is the sole authorized distributor of NoiseKen products. We offer the most direct sales of NoiseKen products available in the US.

  • General
  • Test Level
  • Specification
  • Test setup and test procedure

General

Electrostatic discharges which are generated both in vehicles and while we get on and off there can be factors to cause malfunction of the electrical devices and components. Nowadays, more attention has been paid, as vehicles install more and more electronic devices and components. This Standard provides that static electricity is discharged to the electronic devices or equipment from the charged human body and tests are simulated by electrical circuit to reproduce the electric current waveform at the discharge.

In addition to procedures for the immunity tests and evaluations in state that the electronic devices or equipment work while the vehicle is driving, also, the Standard provides tests procedures to evaluate the immunity of the each module against simulated human discharges during the assembly process or in servicing.

Test Level

The following tests levels are reference. The categories are classified according to functional importance of the electronics devices/components.

Component test – Example severity levels for direct contact discharge and direct air discharge (Function performance status)

 Direct contact discharge Direct air discharge
Test severity levelCategory 1 Category 2 Category 3 Category 1 Category 2 Category 3
Level 4 ±8kV ±8kV ±15kV ±15kV ±15kV ±25kV
Level 3 ±6kV ±8kV ±8kV ±8kV ±8kV ±15kV
Level 2 ±4kV ±4kV ±6kV ±4kV ±6kV ±8kV
Level 1 ±2kV ±2kV ±4kV ±2kV ±2kV ±6kV

Component test – Example severity levels for indirect contact discharge (Function performance status)

  Direct contact discharge
Test severity level Category 1 Category 2 Category 3
Level 4 ±8kV ±15kV ±20kV
Level 3 ±6kV ±8kV ±15kV
Level 2 ±4kV ±4kV ±8kV
Level 1 ±2kV ±2kV ±4kV

Vehicle test — Example severity levels for contact discharge and air discharge (Test points accessible only from inside vehicle)

 Contacts discharge Air discharge
Test severity levelCategory 1 Category 2 Category 3 Category 1 Category 2 Category 3
Level 4 ±6kV ±8kV ±8kV ±8kV ±15kV ±15kV
Level 3 ±4kV ±4kV ±6kV ±6kV ±8kV ±8kV
Level 2 ±2kV ±2kV ±2kV ±4kV ±4kV ±6kV
Level 1 - - - ±2kV ±2kV ±4kV

Vehicle test — Example severity levels for contact discharge and air discharge (Test points accessible only from outside vehicle)

 Contacts discharge Air discharge
Test severity levelCategory 1 Category 2 Category 3 Category 1 Category 2 Category 3
Level 4 ±6kV ±8kV ±8kV ±15kV ±15kV ±25kV
Level 3 ±4kV ±6kV ±6kV ±8kV ±8kV ±15kV
Level 2 ±2kV ±4kV ±4kV ±4kV ±6kV ±8kV
Level 1 - - ±2kV ±2kV ±4kV ±6kV

Specification of generator and verification of output waveform

SPECIFICATION OF ESD SIMULATOR

Following specification must be satisfied with the simulator for the test.

Output voltage . Contact discharge-(kV) 2kV~15kV
Output voltages - Air discharge-(kV) 2kV~25kV
Output voltages accuracy (%) ≦5%
Polarity Positive and negative
Rise time of short circuit current in contact discharge mode(10 % to 90 %) 0.7ns~1ns
Holding time ≧5s
Storage capacitances(pF) 150pF, 330pF
Discharge resistances(Ω) 2kΩ, 330Ω

CONTACT DISCHARGE MODE CURRENT SPECIFICATIONS

Following discharges characteristics should be verified.

Typical capacitance / resistance values Peak current / charge voltage Current at T1 / Charge voltage Current at T2 / Charge voltage
①150pF/330Ω 3.75A/kV ±10% 2A/kV ±30% (t1=30ns) 1A/kV ±30% (t2=60ns)
②330pF/330Ω 2A/kV ±30% (t1=65ns) 1A/kV ±30% (t2=130ns)
③150pF/2kΩ 3.75A/kV +30% -0% 0.275A/kV±30% (t1=180ns) 0.15A/kV±50% (t2=360ns)
④330pF/2kΩ 0.275A/kV±30% (t1=400ns) 0.15A/kV±50% (t2=800ns)
Discharge resistance 330 Ω (at 5kV)

Discharge resistance 330 Ω (at 5kV)

Discharge resistance 330 Ω (at 5kV)

Discharge resistance 330 Ω (at 5kV)

VERIFICATION OF OUTPUT CURRENT WAVEFORM

The waveform shall be verified with an oscilloscope whose bandwidth is 1GHz or more in a Faraday cage or with a 1.2m x 1.2m metallic board mounting an ESD current target in the center of the cage or the board. The discharge electrode (Discharge tip of the gun) shall be touched onto the target and the discharge mode shall be set at the contact discharge mode.

The discharge return cable shall be turned up the center of the length and connected to vertically 0.5m under the target on surface of the Faraday cage or board.

VERIFICATION OF OUTPUT CURRENT WAVEFORM

Calibration of target

Adaptor for calibrating ESD current target (Model:06-00068A)

Adaptor for calibrating ESD current target (Model:06-00068A)

a : Calibration points with networks analyzer

a : Calibration points with networks analyzer

Figure of attaching ESD current target and the calibration adaptor(Left : Target Right : Adaptor)

Figure of attaching ESD current target and the calibration adaptor(Left : Target Right : Adaptor)

Test setup and test procedure

FOR TESTING POWERED DUT IMMUNITY TO DIRECT ESD - CONTACT DISCHARGE AND AIR DISCHARGE

  • Capacitance shall be selected to 150 pF (In case for components accessible from outside vehicle) or 330 pF (In case for components accessible from inside vehicle) and resistance shall be 330Ω.
  • The test level shall be two or more.
  • At least 3 discharges shall be applied both to the positive and negative polarities with the interval not less than 1s. The time intervals between successive single discharges in the indirect discharge shall be longer than 50 ms and the number of the test shall be >50 times.
  • In the contact discharge, it shall be done to wherever human fi nger may touch.
  • In the air discharge, the speed of approach should be between 0.1 m/s and 0.5 m/s and the discharge tip is held perpendicular to the surface of the DUT when possible; if not possible, an angle of at least 45° to the surface of the DUT is preferred.
  • Insulating blocks shall be used for DUT which is not grounded to the chassis directly.
FOR TESTING POWERED DUT IMMUNITY TO DIRECT ESD - CONTACT DISCHARGE AND AIR DISCHARGE

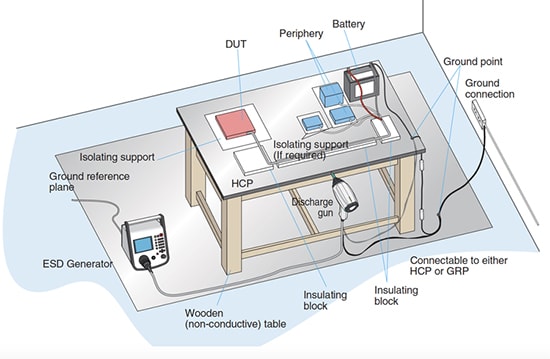

FOR TESTING POWERED DUT IMMUNITY TO INDIRECT ESD

FOR TESTING POWERED DUT IMMUNITY TO INDIRECT ESD

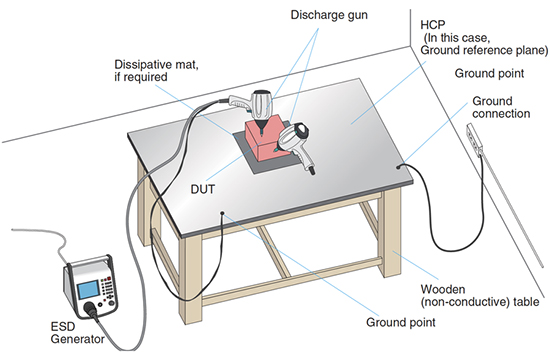

FOR TESTING (UNPOWERED) PACKAGING AND HANDLING ESD SENSITIVITY

  • Capacitance shall be selected to 150 pF (Although the resistance value is not provided, it is recommended to perform the tests supposing both resistance when the DUT may be directly accessible by human body (2kΩ) and it may be accessible by a metal object a human hold (330Ω))
  • The test level shall be two or more.
  • At least 3 discharges shall be applied both to the positive and negative polarities with the interval not less than 1s.
  • In the contact discharge, it shall be done to wherever human finger may touch.
  • Charge build-up should be eliminated by briefly connecting a bleeder wire with high resistance (>1MΩ) after the discharge and the DUT shall be turned on. Afterwards, normal operation of it shall be confirmed.
FOR TESTING (UNPOWERED) PACKAGING AND HANDLING ESD SENSITIVITY

VEHICLE TEST – INTERNAL AND EXTERNAL POINTS

  • Choose a generator capacitance of 330pF for areas that can easily be accessed only from the inside of the vehicle and resistance of 330Ω or 2 kΩ
  • Choose a capacitance of 150 pF for points that can easily be touched only from the outside of the vehicle and resistance of 330Ω or 2 kΩ.
  • The ESD generator ground shall be connected to chassis like the seat-rail in case of the interior test or connected to a metallic plate under the wheel closest to the application point in case of the exterior test.
  • Both the contact discharge and air discharge shall be done both for the internal and external.
Internal test

Internal test

External test

External test

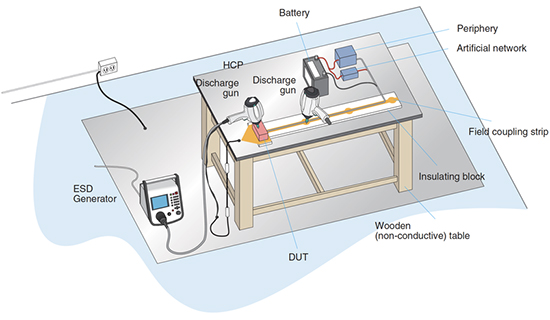

OPTIONAL TEST SET-UP AND PROCEDURE FOR ELECTRONIC MODULES (POWERED-UP TEST) – DIRECT AND INDIRECT DISCHARGE

OPTIONAL TEST SET-UP AND PROCEDURE FOR ELECTRONIC MODULES (POWERED-UP TEST) – DIRECT AND INDIRECT DISCHARGE

Notes : This test set-up is quoted from ISO10605 ed2.0 (2008) Standard.
Please go through the Standard if the more details are required.

Shinyei Corporation of America is the sole authorized distributor of NoiseKen products. We offer the most direct sales of NoiseKen products available in the US.

PRODUCTS

  • WEATHERING, CORROSION, AND OPTICAL PROPERTIES
    • Products
    • Weather Meters
      • Super Xenon Weather Meters
      • Xenon Weather Meters
      • Metaling Weather Meters
      • Sunshine Weather Meters
      • Fluorescent Weather Meter FUV
      • UV Fade Meters
      • Spectral Radiation Tester SPX
    • Light Sources
      • 7.5kW Xenon lamp & Sunlight
      • 3kW Metaling Lamp
      • Sunshine Carbon Arc
      • UV Fluorescent Lamp
      • UV Carbon Arc
    • Corrosion Test Chambers
      • Salt Spray Test Chambers
      • CASS Test Chambers
      • Combined Cyclic(CYP)
      • Combined Cyclic(CCT)
      • Custom Test Chambers
      • Options for Corrosion Test Chambers
    • Other Test Chambers
      • Gas Corrosion Test Chambers
      • Ozone Weather Meters
      • Fogging Testers
      • Dust Test Equipment
      • Rain Test Equipment
      • Gravel Test Equipment
      • Abrasion Test Equipment
      • Flammability Test Chambers
    • Optical Property Meters
      • Color Meters
      • Gloss Meters
      • Haze Meters
        • HZ-V3(DISCONTINUED)
        • HZ-V4 (NEW)
      • Image Clarity Meters
      • Reflectance /
        Transmittance Meters and Others
  • EMC EMISSION & IMMUNITY
    • Products
    • ESD simulator
      • ESD Simulator(ESS-S3011A+GT-30RA)
        IEC 61000-4-2 Ed.2 Test Standard
      • ESD Simulator(ESS-PS1+GT-31S) (NEW)
        IEC 61000-4-2 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-S3011A+GT-30RB)
        IEC 61000-4-2 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-S3011A+GT-30R3302KA)
        ISO 10605 Ed.2/Ed.3 Test Standard
      • ESD Simulator(ESS-PS1+GT-31S+ISO-SET-A) (NEW)
        ISO 10605 Ed.2/Ed.3 Test Standard
    • ESD voltage meter (New)
    • Fast Transient Burst Simulators
    • Impulse Noise Simulator
    • Lightning Surge Simulator
    • Lightning Surge Simulator for
      EV fast charging
    • New ISO 7637 Standard Automotive Transient Surge Simulator
    • High Voltage Noise
    • Field Decay Load Dump
    • TEM Horn Antenna
    • Thin Plate Broadband Antenna
      • Thin Plate Broadband Antenna(NKU07M32G/NKU2460G)
      • Thin Plate Broadband Antenna(NKU5080G) (NEW)
    • Electromagnetic Field Visualization System
  • DROP & SHOCK
    • Products
    • Drop Test Systems
      • DT-202 series
      • DT-205 series
      • DT-20e
      • RDT-1000
      • EMH series
    • Shock Test Systems
      • PDST series
      • HDST series
      • ASQ series
      • MDST series
      • SDST series
      • PST-300
      • CDS series
      • Accessories
    • Material Testing System
      • ACST series
    • Acceleration Measurement
      • SM-500
      • AccStick
    • Field Data Recorder
      • DER-1000
  • VIBRATION
    • Products
    • Basics of Vibration Testing
    • Multi-Axis Vibration Test Systems
    • Single-Axis Vibration Test Systems
    • Vibration Combined Environmental Test Systems
    • Digital Vibration Controller
  • BALL BEARINGS
    • Products
    • Stainless Steel Ball bearing by AFC bearings
    • AISI 440C Stainless Steel Ball Bearings
    • AISI 304 Stainless Steel Ball Bearings
    • AISI 630 Stainless Steel Ball Bearings
    • 2C Series - Ceramic Bearings
    • Grease Free Bearings
    • 1T Series - Pure Titanium Bearings
    • SH series - Stainless Ball Bearing with Aligning Ring
    • SSXC Series - Stainless steel ball bearings with setscrews
    • SF series - AISI440C Flanged Bearing Units
  • MECHANICAL & PHYSICAL
    PROPERTY OF MATERIALS
    • Products
    • By Test Applications
      • Plastic / Resin / Rubber
    • By Test Properties
  • TEMPERATURE SENSING
    • Products
    • Temperature Probes
      • Stationary Surface Temperature Probes
        • SX Series
        • AX Series
        • WE Series
      • Moving/Rotating Surface Temperature Probes
        • U Series
      • Moving Wire / Tube Probe
      • Liquid / Semiliquid Probes (Needle type)
      • Special Application Temperature Probes
        • AW Series(for Wafer)
    • Thermometers
      • Handheld Thermometer Model HR series
      • Handheld Thermometer
      • Thermoprinter
      • Thermologger
        • Thermologger AM-8000
        • Thermologger AM-9000
      • Transducer (Transmitter) HPD Series
      • Non-contact thermometer
      • Soldering iron thermometer
      • Fiber optic thermometer
    • Application
    • Accessories
    • Technical Guide
    • FAQ
  • ENERGY DISPERSIVE X-RAY FLUORESCENCE ANALYZERS
    • Products
    • VoXER
    • OURSTEX 170
    • OURSTEX 101FA
    • OURSTEX 100FA
    • OURSTEX 100TA-F
    • OURSTEX 200TX
    • OURSTEX 160
    • OURSTEX 160RoHS
    • OURSTEX 160M
  • NO-DOOR ENVIRONMENTAL CHAMBERS
    • LST Series
  • ENVIRONMENTAL &
    THERMAL SHOCK CHAMBERS
    • Products
    • Temperature and Humidity
    • Thermal Shock
    • Compact Temperature and Humidity
  • HUMIDITY, PARTICLE, AND
    GAS SENSING
    • Products
    • Humidity Sensing
      • humidity Sensors
      • humidity and Temperature
      • Thermo-hygrometer/Recorder
      • Temperature humidity converter
      • TDLAS Moisture Analyzers
      • Humidity Generators
    • Particle Sensing
      • Particle Sensor Unit
      • Particle Sensing Monitor
      • Pollen Sensor
    • IAQ Sensing
      • Handheld Odor Meter
  • CONTRACT TEST SERVICE

  • SUGA
  • NOISEKEN
  • SHINYEI
  • VIBRATION
  • BALL BEARING
  • YASUDA
  • ANRITSU
  • OURSTEX
  • ETAC
sca Shinyei Corporation of America

Head Office
1120 Avenue of the Americas,
4th Floor NewYork, NY 10036
TEL:917-484-7884 / FAX: 212-704-4206

CONTACT US
sca Shinyei Corporation of America

Mexico Liaison Office
Blvd. Bernardo Quintana No.7001,
Q7001 Torre 1 - Int. 808,
Col. Centro Sur, C.P. 76090,
Queretaro, QRO, Mexico
TEL:442-229-0767

CONTACT US
© 2018 Shinyei Corp. of America All rights reserved.
