Gravel Test Equipment
JA400 / JA400LA / JA400LACE / JA400LB
Gravel Test Equipment is designed to reproduce the effect of gravel or other media striking exposed paint or coated surfaces of an automobile, also known as chipping resistance test, and has been correlated with actual field results, corresponding to the test standards such as SAE, JASO M 104 (test standard of Society of Automotive Engineers of Japan), and others.

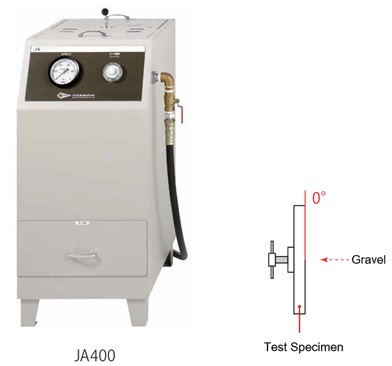

Gravel Test Equipment JA400
Approximately 850 g of gravel is sprayed at a pressure of 0.5 MPa in 10 seconds and sprayed onto a test piece 350 mm away to evaluate scratches on the surface.
This is a model dedicated to the JASO M 104 standard.
The stone collection box at the bottom of the main unit is equipped with a wire mesh for sorting reusable stones, reducing the time and effort required to start the next test after one test.

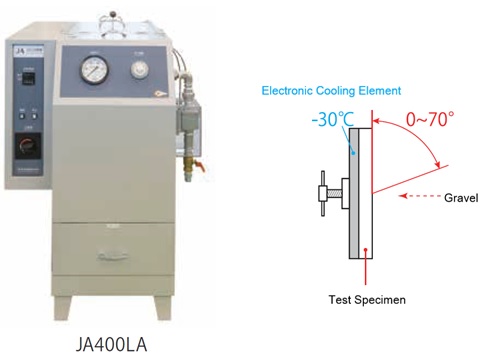

Gravel Test Equipment JA400LA
By equipping the test specimen holder to which the specimen is attached with an electronic cooling element, the temperature of the back surface of the specimen can be adjusted in the range of -30℃ to + 50℃, and the angle can be tilted from 0 ° vertically to 70 ° in front.
It is possible to test the environment in which the test specimen is used, and the effect of the angle at which the gravel hits.

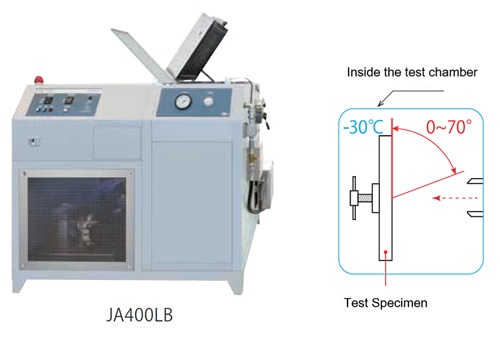

Gravel Test Equipment JA400LB
The temperature of the test tank can be adjusted in the range of -30℃ to + 35℃, and the specimen mounting angle can be tilted from 0 ° vertically to 70 ° in front.
Standard Features
| Model | JA400 | JA400LA | JA400LACE *CE model | JA400LB |
|---|---|---|---|---|
| Distance between the tip of the ejection tube and the specimen |
350±2mm | |||
| Distance between the tip of the ejection tube and the nozzle |
200mm | |||
| Nozzle diameter | 7.2mm (available 6.8mm as an option) | |||
| Air pressure | 0.2～0.5MPa | |||
| Test specimen | 100 x 200 x 1～5mm | 100～300x300x0.8～10mm | ||
| Gravel amount | 850±10g | |||
| Ejection time | 10 seconds | |||
| Ejection pipe inner diameter | 52mm | |||
| Specimen holding angle (relative to vertical) |
0° | 0°~70° | ||
| Specimen opening | 85 x 145mm | |||
| Gravel type | Gravel | |||
| Specimen temperature | Room temperature | ―30～50±2℃ | ―30～35±2℃ | |
| Electric capacity | ー | Single phase 100V, approx.11A | Single phase 100～200V, approx.1.1KVA, 50/60Hz |
Three phase 200V, approx. 24A |
| External dimensions | approx.W58xD79xH112cm (22.8x31.1x44.1in) | approx.W78xD100xH112cm (30.7x39.4x44.1in) | approx.W170xD123xH150cm (66.9x48.4x59.1in) | |
| Operating mass | approx. 80kgs (176lbs) | approx. 170kgs (375lbs) | approx. 490kgs (1080lbs) | |
| Required cooling water | ー | under 15℃, approx. 1.5ℓ/min | ー | |
*Available options such as SAE J400, and JA400LA Cooling water supply device for sample back temperature control (CW-2A).
**The specifications above are subject to change without notice.
