(NEW) ESD Voltage Meter

For measuring the hold time and output voltage of electrostatic testers

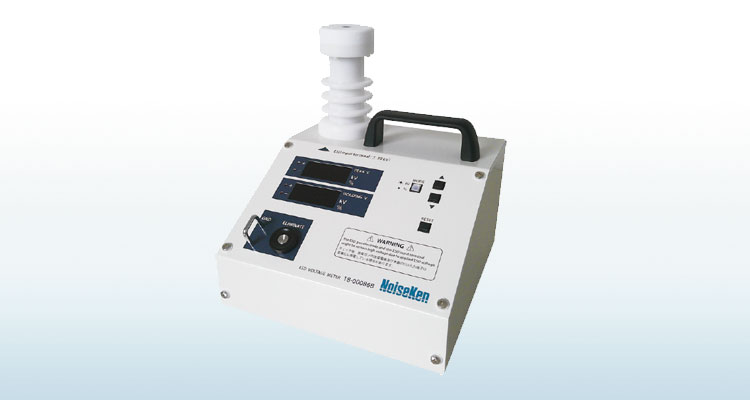

The ESD voltage meter MODEL: 18-00086B is a device that can measure the voltageholding time (holding voltage after 5 seconds) and output
specifications during the air discharge test in IEC 61000-4-2.The measured voltage is displayed on a 7-segment LED with peak and holding voltage values.
- Easily measure the Hold Time, the tester specification for air-discharge testing.
- Measure the output voltage from ±2kV to 30kV.
- Monitor the measured voltage waveform by connecting to an oscilloscope.
- Compact, lightweight and easy to carry.
Easy measurement of tester specifications for the Air Discharge testing!
Hold time measurement function
IEC 61000-4-2 standard specifies the voltage "Hold Time" as a tester specification related to the Air discharge testing. The Hold Time is defined as "the time interval during which the output voltage decreases by 10% or less due to leakage before the discharge" and is required to be "at least 5 seconds".By using this product, the voltage "hold time" can be easily measured.
Also, the output voltage specified in the IEC -61000-4-2 Standard can be easily measured without using a high-voltage probe or voltmeter.

Measuring Holding Voltage

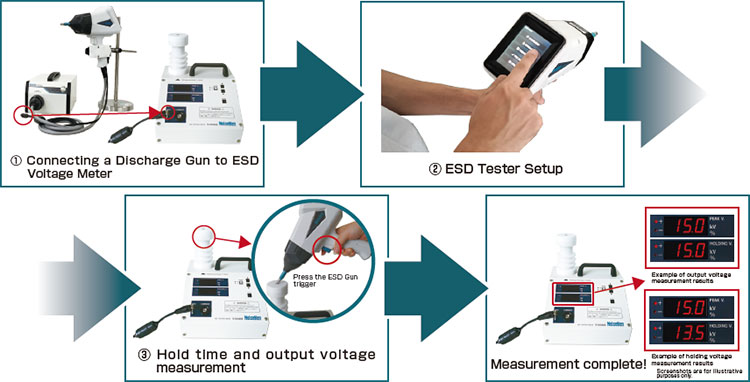

- Connect the alligator clip on the end of the GND cable of the discharge gun to the GND terminal of the ESD voltage meter .
- Set the electrostatic tester to Air Discharge mode and the output voltage: set to the voltage set a the ESD voltage meter.
- Press the【START】switch on the electrostatic tester to charge the discharge gun, then make contact of the discharge tip of the ESD GUN to the GND terminal of the ESD voltage meter. After eliminating the high voltage, press the trigger switch on the discharge gun while keeping the discharge tip in contact with the ESD input terminal of the ESD voltage meter.
【Example of measurement results】
When the holding voltage value is displayed in 【HOLDING V.】 in kV display mode.
*Percentage (%) display mode is also available.

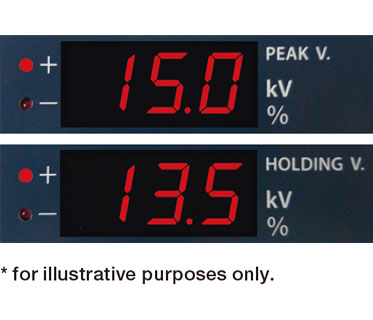

【PEAK V.】 displays the Peak Voltage using the peak hold function.
【HOLDING V.】 displays the holding voltage value and the reduction rate every second.
Specification
Parameter | Features / Specifications |
Input polarity | Positive/Negative |
Input voltage | ±2kV - 30kV *Voltage value set at the electrostatic tester |
Voltage display accuracy (voltage display mode) | Within ±5% *for DC input |
Display | Voltage value: 7-segment LED 4 digits. Polarity: LED |
Buzzer | built-in |
Monitor output | BNC connector Approx. 1/10,000 (Approx. 3V output at 30kV input). Output accuracy:±20% of indicated voltage value |
GND Terminal | Conductive to the GND of the product housing |
Elimination terminal | Conductive to the GND of the product housing |
Input resistance | 1TΩ±20% |
Voltage divider ratio | Approx. 1/3,333 |
Check voltage setting range | 2.0kV, 4.0kV, 8.0kV, 15.0kV, 20.0kV, 25.0kV, 30.0kV * Input voltage threshold is 1/2 of the set check voltage value |
Hold time setting range | 5.0 - 30.0 sec. |
Power supply | AC100V ~240V±10% 50Hz /60Hz |
Power consumption | 13VA |
Operating temperature range | +15℃ - +35℃ |
Operating humidity range | 30%RH to 60%RH (no condensation) |
External dimensions | (W)220mm x (H)256.5mm x (D)230mm (excluding protrusions) |
Mass | Approx. 2kg |
