Options for Corrosion Test Chambers (Instruments)
For stable testing over long periods of time.
Exhaust Treatment Unit EF-R / EF-1R / EF-1RW / EF-2R
- Salt mist discharged during salt spray testing is passed through a water spray to remove salt.
- Treated water is circulated and reused by a pump to reduce consumption.

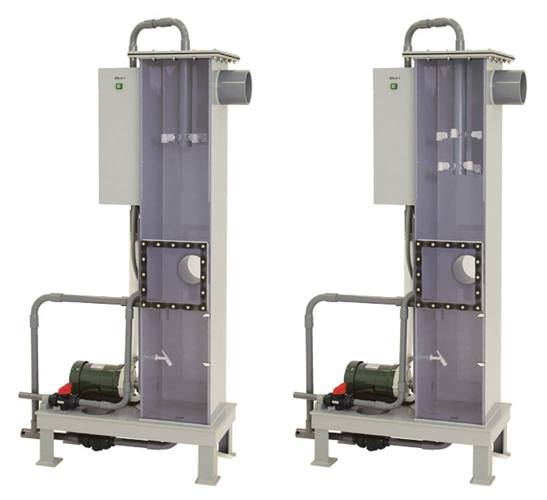

EF-1R / EF-1RW
The Exhaust Treatment Unit EF-1R / EF-1RW for the middle-sized salt spray test chamebers, CASS test chambers, and cyclic corrosion test chambers.

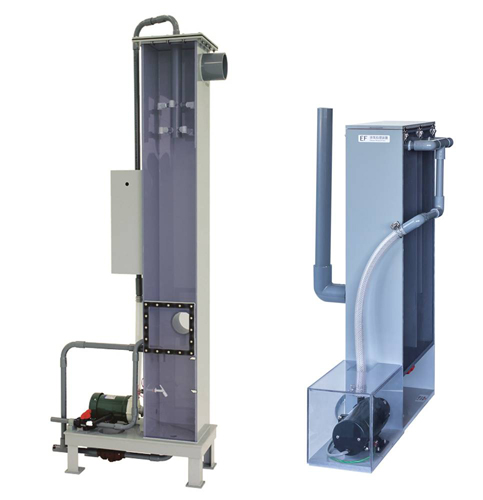

EF-2R
The Exhaust Treatment Unit EF-2R which is high processing capacity for the large cyclic corrotion test chambers.
EF-R
The Exhaust Treatment Unit EF-R for the small salt spray test chamber STP-30.
Correspondence Table
Exhaust Treatment Unit's Model | SUGA Corrosion Test Chambers' (Instruments') Model |
EF-R | STP-30 |
EF-1R | STP-90V / CAP-90V |
STP-110 / CAP-110 | |
STP-120 / CAP-120 | |
CYP-90 | |
CYP-110 | |
CYP-120 | |
CCT-1 / CCT-1L | |
CCT-2 / CCT-2L | |
EF-1RW | STP-160 / CAP-160 |
STP-200 / CAP-200 | |
CYP-160 | |
CYP-200 | |
EF-2R | CCT-3 / CCT-3L |

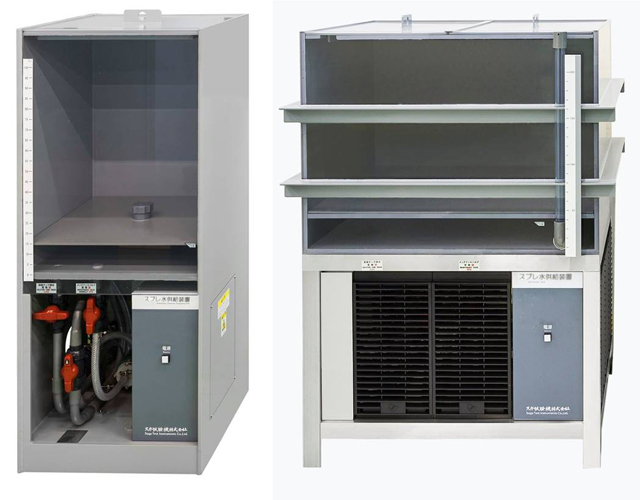

Automatic Solution Supplying Unit SS-2
The Automatic Solution Supplying Unit SS-2 automatically supplies salt solutions into the solution supply tank of the corrosion test chambers.
✓ Contributes to labor-saving solution supply
Detects the water level in the solution supply tank of the corrosion test chamber and automatically feeds the solution.
✓ Suppresses pH fluctuations in solution
Equipped with an air blocking board to block contact between the solution and the outside air (PAT.)
✓ Remaining amount can be checked at a glance
A scale on the solution tank allows you to check the remaining amount at a glance.
✓ Large-capacity solution tank
The standard SS-2 solution tank has a capacity of 100 L. There are also large-capacity tanks and types with a stirring function for solution preparation.

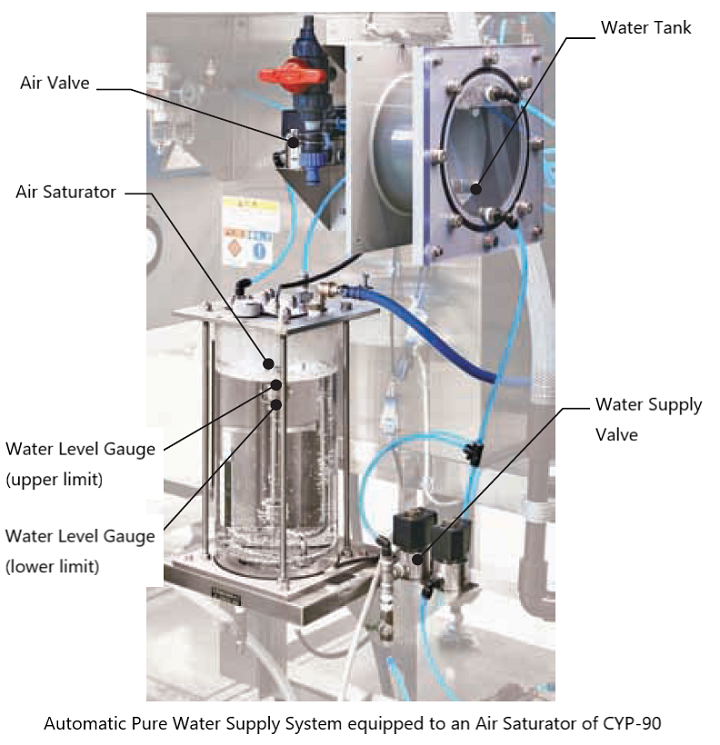

Automatic Pure Water Supply System to Air Saturators
✓ Contributes to labor savings in pure water supply
Detects the water level in the air saturator of the corrosion tester and automatically feeds deionized water.
✓ Supplies water without stopping the salt spray test.
Because the system supplies water with equal pressure in the air saturator and in the water tank, it can automatically supply pure water / deionized water to the air saturator without interrupting the salt spray test.
Water Recycling Unit CRW-1
Water Recycling Unit collects wastewater from the Combined Cyclic Corrosion Test Chambers (Instruments), controls the water temperature, purifies and reuses it (PAT.).

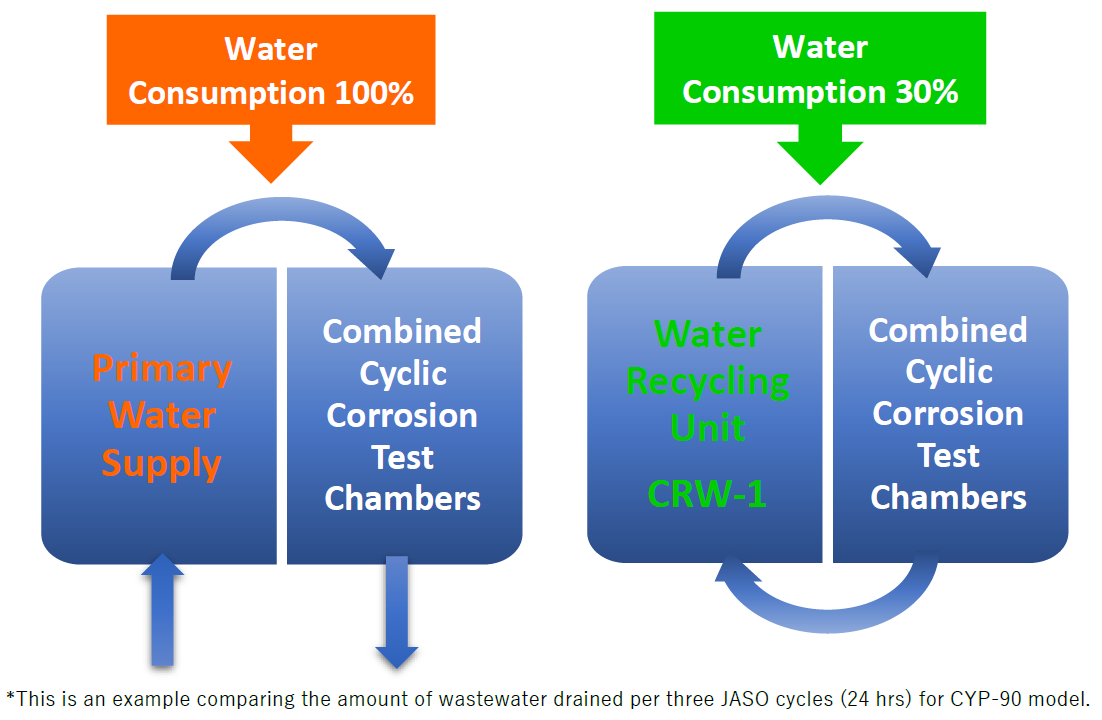

✓ Reuses water, and reduces water consumption by up to 70%.
✓ Maintains the supply water at a constant temperature for stable and accurate testing.
✓ Includes a salinity meter to monitor the salinity of the supply water, and automatically replaces the water in the supply tank to lower the salinity when it exceeds a set value (optional).
***Dedicated to CYP-90 model as of 12/1/2022
