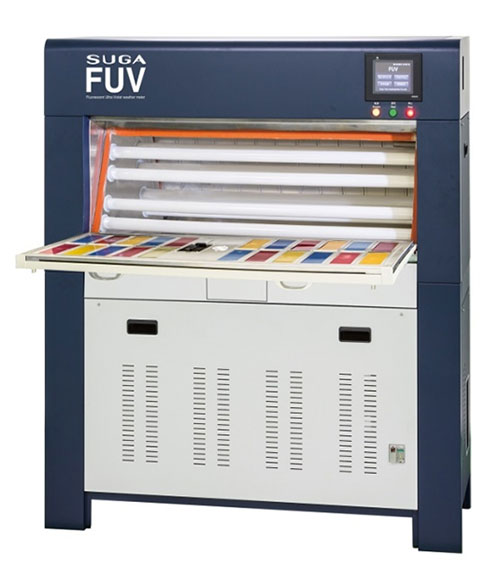

Fluorescent Weather Meter FUV
Light Source: UV Fluorescent Lamp

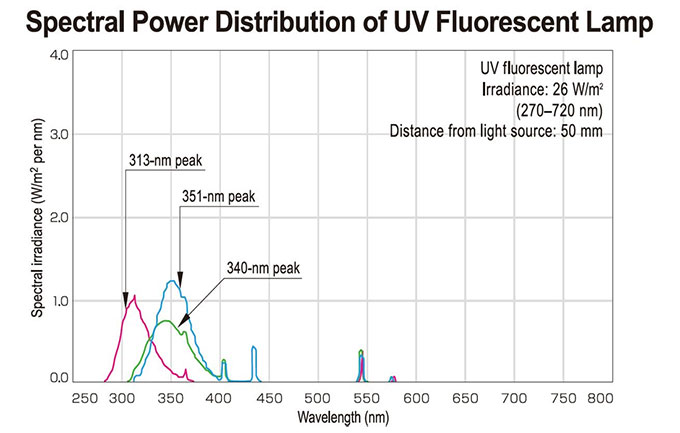

Fluorescent Weather Meters are designed to reproduce outdoor and indoor deterioration factors such as sunlight, temperature, rainfall and dew. The Fluorescent UV Lamp emphasizes ultraviolet region of the sunlight spectrum distribution.
Related Standards : ISO 4892-1, ISO 4892-3, ISO 16474-1, ISO 16474-3, ISO 4665, ASTM D4587, SAE J2020, ASTM G151, ASTM G154, JIS K 7350-1, JIS K 7350-3, JIS K 5600-7-8, JIS K 6266, JIS K 6404-4, JIS D 0205, JIS D 0202
*Subject to the accessories.
Fluorescent Weather Meter FUV
- High acceleration with cyclic test of UV light and dark (dew).
- UV Fluorescent Lamps FS-40 (UVB313) are as standard accessories.
- UV Fluorescent Lamps UVA340 and UVA351 are optional.
- Irradiance 12~42W/m2 at 270 to 700nm
- Irradiance 0.47~1.48W/m2 at 310nm
- Specimen Capacity: 48 pcs (150x75x1mm)
- Temp. and Hum. range : BPT50~80±3℃ at Light Test.
- Temp. and Hum. range : Chamber Temp. (CAT) 40~70±3℃ at Dark Test
- Wide variety of options and customization is available.

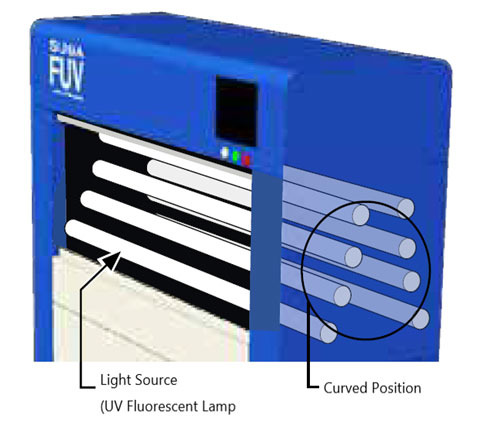

Uniform irradiation by the curved configuration of the UV Fluorescent Lamps.

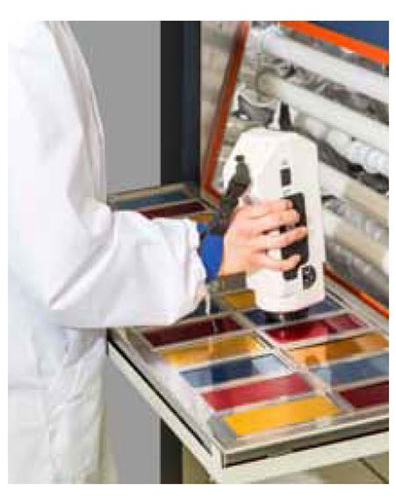

No need to take out the specimen for evaluation (Quick View System)
Standard Features
| Name | Fluorescent Weather Meter | ||
|---|---|---|---|
| Model | FUV | ||
| Light Source | UV Fluorescent Lamp FS-40 | ||
| Light Source Qty. | 8 | ||
| Continuous Lightning Time | 300 hours | ||
| Irradiance | 12~42W/m2 (at 270 to 700nm), 0.47~1.48W/m2 (at 310nm) |
||
| Test Item | Light | 〇 | |
| Light + Spray
on front face (Rain) |
Optional | ||
| Dark | 〇 | ||
| Dark + Spray on back face (Dew) |
- | ||
| Temperature / Humidity Range |
Light | BPT | 50~80±3℃ (at 28~30W/m2) |
| Humidity | not controlled | ||
| Light + Spray on front face (Rain) |
Chamber Temperature (CAT) | Optional | |
| Dark | Chamber Temperature (CAT) | 40~70±3℃ | |
| Humidity | not controlled | ||
| Dark + Spray on back face (Dew) |
Chamber Temperature (CAT) | - | |
| Specimen Capacity | excl. black panel sensor and light receptor | 48 (150x75x1mm) | |
| Specimen Holder | Inclined type | 24 | |
| Specimen Rack | Diameter | - | |
| Rotation Speed | - | ||
| Electrical Specifications | 50/60Hz | Single phase, 200V, 11A | |
| Earth Leakage Breaker (ELB) | ELB: 15A | ||
| Water Consumptions | For wet bulb pot | Tap water | Pure water approx. 2L/h |
| For humidifier | Pure water | ||
| For specimen spray | Pure water | Optional | |
| For wall cooling and back spray | Tap water | - | |
| For chamber temp. control / refrigerator |
Cooling tower water | - | |
| Outer Dimensions | Width x Depth x Height (including pipings) approx. | 138x50x149cm (54.3x19.7x58.7in) | |
| Operating Weight | approx. | 210kgs (463lbs) | |
| Standard Accessories | Radiometer for Irradiance Calibration | 〇 | |
| Irradiance Automatic Control System | 〇 | ||
| Black Panel Temperature Automatic Control System |
- | ||
| Others | - | ||
***The specifications above are subject to change without notice.
