Thin Plate Broadband Antenna
Broadband sleeve antenna has been developed for efficient immunity testing against hand-held transmitters and cellular phones. Many pieces of spot frequency antennas had to be used in turn thus fur. This new Broadband sleeve antenna is a single antenna solution eliminating the need for antenna changes and dramatically reducing the test time. Furthermore, this antenna with its small-size and lightweight properties and a flexible handle is suitable for testing in narrow spaces.
- Compliant with ISO 11451-3 Ed.4 standard
- Compliant with ISO 11452-9 Ed.2 standard
- A wide frequency range eliminating the need for antenna changes
- 30 W maximum power input allows high filed strengths
- High efficiency due to a low VSWR and high gain
- Suitable for broadband digital modulation thanks to a good VSWR flatness
- Small, light-Weight and flat antenna easy to use in narrow spaces
- Easy handling with a flexible arm for in-vehicle testing
- A wide radiation pattern makes directivity of the fields no longer an issue
SPECIFICATION
| Model | NKU07M32G | NKU2460G |
| Frequency range | (660) 700 MHz ～ 3.2 GHz | 2.4 GHz ～ 6 GHz |
| VSWR | ≦ 2 | |
| Maximum power input | 20 W (continuous) 30 W (continuous 10 minutes) |
10 W (CW) |
| Input impedance | 50 Ω | |
| Connector | SMA(J) | |
| Dimensions | W50mm × D8mm × H186 mm (protrusions excluded) | W35mm × D10mm × H108 mm (protrusions excluded) |
| Weight | 73.5g | 20 g |
VSWR

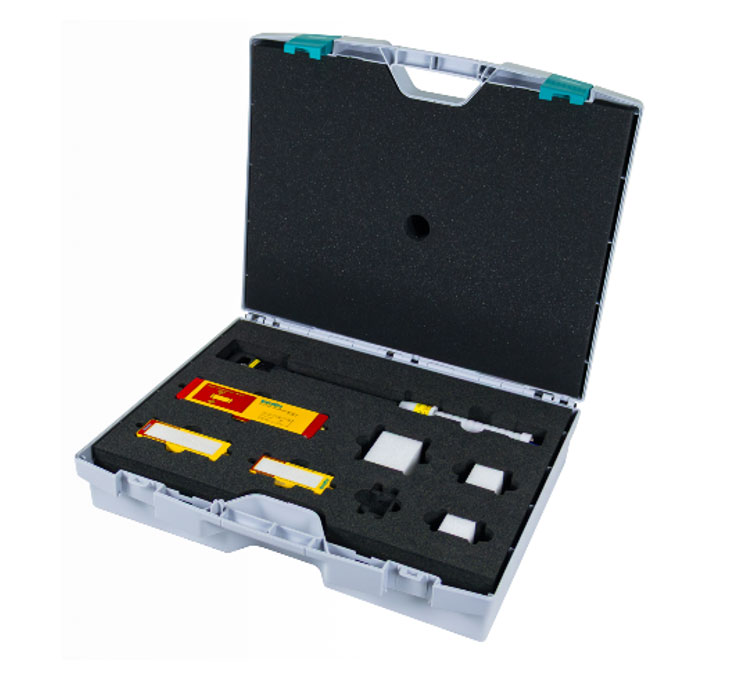

Antenna and Dedicated Flexible Antenna Handle
SYSTEM CONFIGURATION EXAMPLE
APPLICATION
In-vehicle testing (ISO 11451-3 Ed.4: On-board transmitter)
Testing for automotive electronics (ISO 11452-9 Ed.2: Portable transmitter)
