New ISO 7637 Standard Automotive Transient Surge Simulator
ISS-7810 / ISS-7820 / ISS-7821
Technological innovation called “CASE” (Connected, Autonomous/Automated, Shared, Electric) is diversifying at an unprecedented pace in automotive development. As the electrification of automobiles progresses, it is becoming increasingly important to check the EMC resistance of electronic devices in vehicles due to mutual interference.
The ISS-7810 is a simulator that outputs transient surges required by the international standard ISO 7637 for verifying the noise immunity tolerance of automotive electronic devices.
- Perform testing in compliance with ISO 7637-2 and ISO 7637-3 Standards.
- Perform various 12V / 24V tests.
- Mounted on a space-saving vertical rack.
- A wide variety of options such as coupling clamps and waveform verification is available.
- The included remote control software allows individual test sequences setting.
- Highly operable and intuitively user-friendly integrated remote control software.

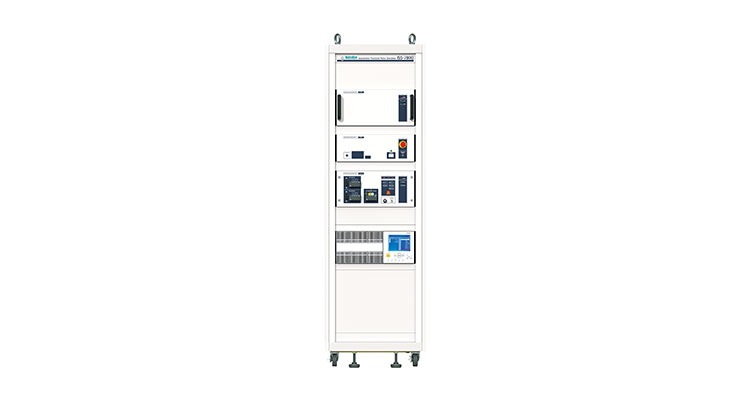

System Overview
The ISS-7810 is a rack-mounted test system with separate pulse units. It has excellent expandability and can be equipped with pulse 5a/5b and Slow pulse +/- if necessary (*1).
In addition, sequence tests and reports can be created by controlling the entire system with software using a PC.
| Model | ISO 7637-2 | ISO 7637-3 | |||||||
| 2011 ver. | 2004 ver. | 2007 ver. | |||||||
| Pulse 1/2a | Pulse 2b | Pulse 3a/3b | Pulse 4 | Pulse 5a/5b | Fast Pulse a | Fast Pulse b | Slow Pulse + | Slow Pulse - | |
| ISS-7810 | Available | Available | Available | Available | - | Available | Available | - | - |
| ISS-7820 | Available | Available | Available | Available | June, 2024(*1) | Available | Available | - | - |
| ISS-7821 | Available | Available | Available | Available | June, 2024(*1) | Available | Available | June, 2024(*1) | June, 2024(*1) |
Specifications

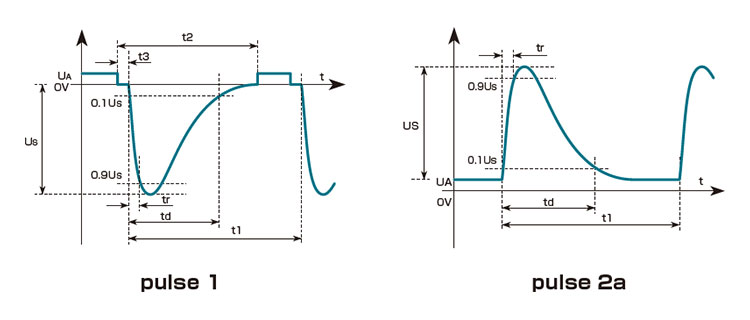

Test Pulse Generator Unit P1/2a
| Parameter | Specifications | ||
|---|---|---|---|
| pulse 1（12V） | pulse 1（24V） | pulse 2a（12V / 24V） | |
| Output voltage（Us) | －10V ～ －330V Step －1V | －20V ～ －600V Step －1V | 20V ～ 330V Step 1V *setting available from 12V |
| Output impedance（Ri） | 4、10、20、30、50、90Ω | 10、20、30、50、90Ω | 2、4、10、20、50、90Ω |
| Pulse width（td） | 1、1.75、2、6ms | 0.05、1、2ms | |
| Rise time（tr） | 1(+0/-0.5)、2(+0/-1.0)、3(+0/-1.5)μs | 1(+0/－0.5)μs | |
| Pulse repetition time（t1） | 0.5s ～ 99s Step 0.1s | 0.2s ～ 99s Step 0.1s | |

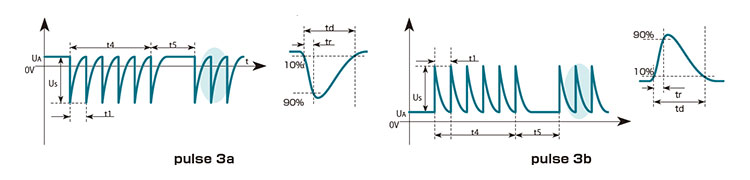

Test Pulse Generator Unit P3a/3b & CDN
| Parameter | Specifications | |
|---|---|---|
| pulse 3a（12V・24V） | pulse 3b（12V / 24V） | |
| Output voltage（Us) | －10V ～ －350V Step －1V | 10V ～ 350V Step 1V |
| Output impedance（Ri） | 50Ω | |
| Pulse width（td） | 0.15（±0.045）μs | |
| Rise time（tr） | 5（±1.5）ns、3.5ns max | |
| Pulse repetition time（t1） | 10μs ～ 1000μs Step 1μs | |
| DUT power capacity | DC60V / 50A | |

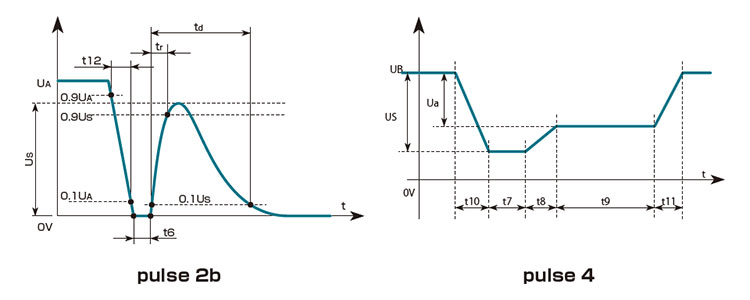

Bipolar Power Supply BP4610 2b/4
| Parameter | Specifications |
|---|---|
| pulse 2b（12V・24V） | |
| UA、US | 0V ～ 60V Step 1V |
| Ri | 0Ω ～ 0.05Ω |
| td | 0.1s、0.2s、0.5s、1s、2s、4s |
| t12、tr、t6 | 1ms、2ms、5ms |
| Parameter | Specifications |
|---|---|
| pulse 4（12V・24V） | |
| UB | 0V ～ 60V Step 1V |
| Us、Ua | 0V ～ 60V Step 1V（less than UB） |
| Ri | 0Ω ～ 0.02Ω |
| t7、t8、t10、t11 | 1ms ～ 999ms Step 1ms |
| t9 | 0.1s ～ 99.9s Step 1ms |
Options
Coupling Clamp MODEL：ISS-7630-CUP Injection
Clamp used in the capacitive coupling clamp method of the ISO 7637-3 standard. Contents: Coupling clamp, BNC Coaxial cable 0.5m, BNC coaxial cable 0.1 m, 50Ω 5W terminator, Metal fasteners

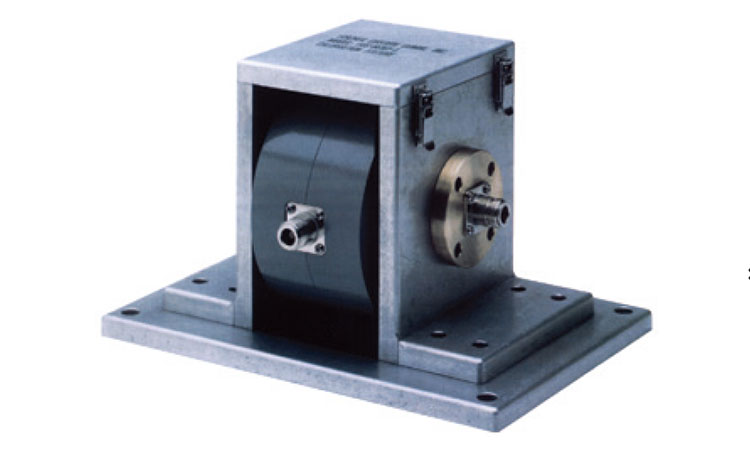

Injection Probe MODEL：F-120-2
Clamp used for the Inductive coupling clamp test method of the ISO 7637-3 Standard. Calibration fixture (FCC-BCICF-1) is also available.
* for 7637-3 Slow pulse
* the photo includes the calibration fixture

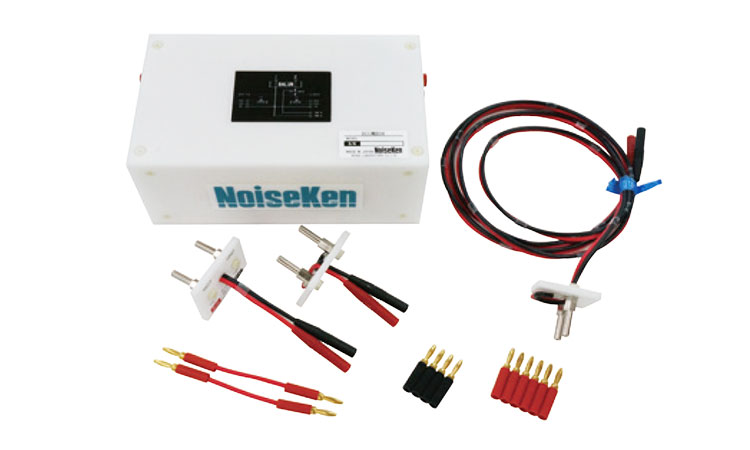

DCCBOX
DCC box to use for the ISO 7637-3 Standard direct capacitive coupling method.

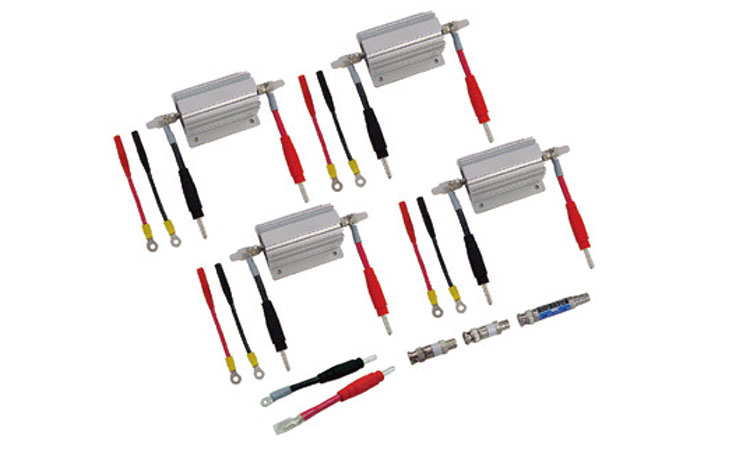

Waveform Verification Set
A set of resistors and attenuators for observing each pulse of the Simulator.
Set contents: 1Ω resistor, 2Ω resistor, 10Ω resistor, 50Ω resistor, 2.5kΩ 40 dB attenuator, 50Ω 20 dB attenuator × 2 pcs. each
*resistors can be purchased separately

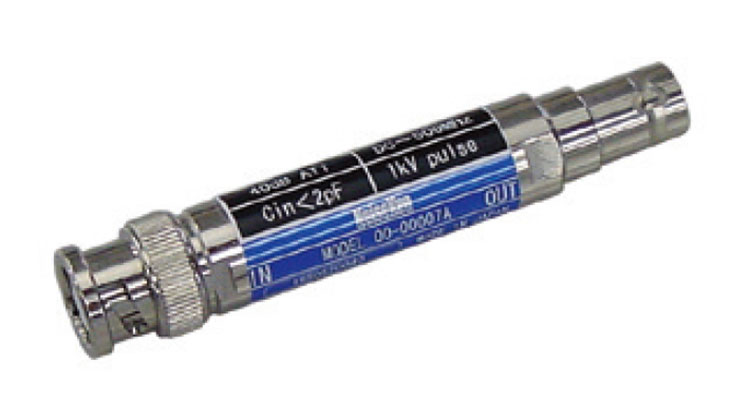

No Load Waveform Verification Attenuator MODEL：00-00007A
Attenuator for observing high frequency and high voltage pulses of Test Pulses 3a/3b.
2,5kΩ 40dB attenuator

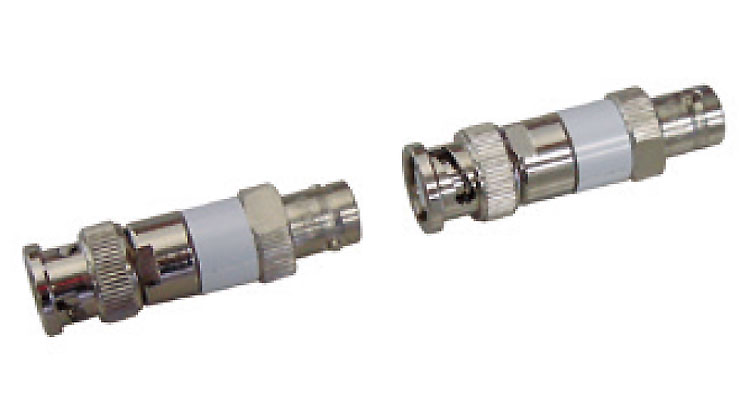

50Ω Load Waveform Verification Attenuator MODEL：00-00006B
Attenuator for observing high frequency and high voltage pulses of Test Pulses 3a/3b.
50Ω 20dB attenuator (2 pcs.)

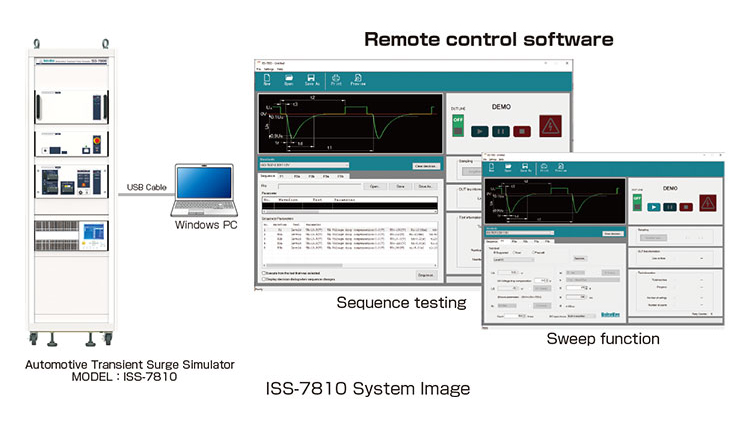

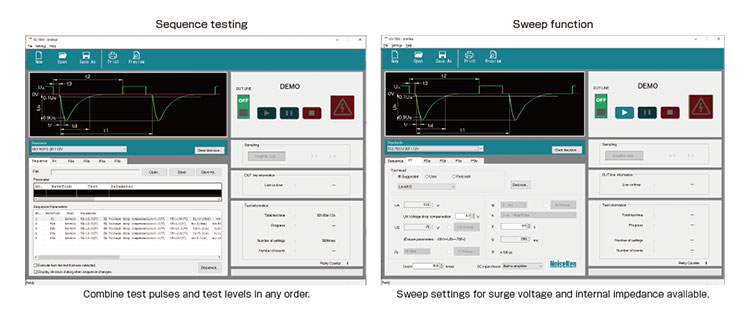

Remote control software
Dedicated software for remote control of ISS-7810 allowing to easily conduct each pulse test required by the Standard. Sequence tests are also available, in which test pulses and test levels are combined in any order, and parameters such as surge voltage, internal impedance, and pulse width can be set to sweep.
