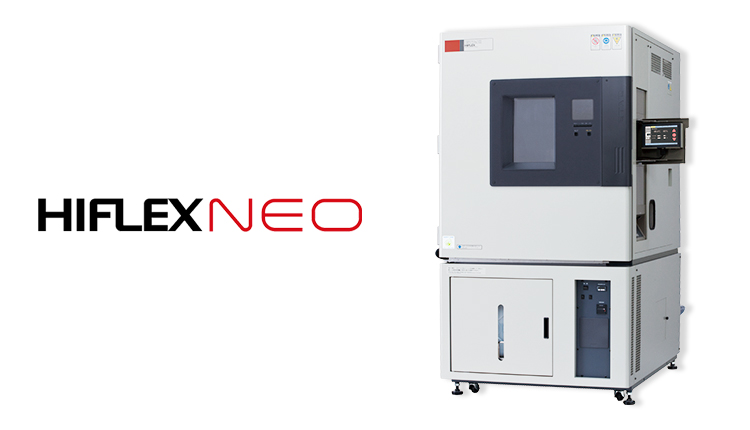

Temperature & Humidity Test Chamber HIFLEX NEO
ETAC Hiflex Neo series takes your test to the next level
With standard sizes ranging from 9.5 cu. ft. to 28.3 cu. ft., HIFLEX NEO meets your test requirement.
You can also make your own chamber with our variety of options listed on page 13 of the catalog.
- Temperature range: -70 to 180 C deg (-94 to 356 F deg)
- Humidity range: 20 to 98% rh
- Inner chamber made of stainless steel
- User friendly LED controller with time-segment and real-time programming with internal data recording
- Automatic error recording
- 1 stainless steel rack included
- Access port with silicone plug, 50 mm, each side
- W210×H303mm or W420×H303mm window on door
- USB2.0, Ethernet (10BASE-T/100BASE-TX AUTO-MDIX compatible / RJ45 x 1)
Interior Volumes
| FX411N, FX711N | 23.6 x 29.5 x 23.6” | 9.5 cf |
| FX421N, FX721N | 27.6 x 37.4 x 27.6” | 16.4 cf |
| FX431N, FX731N | 39.4 x 39.4 x 31.5” | 28.3 cf |
Low GWP refrigerant R-448A is available!
As the environmental impact of the refrigerant has become increasingly important in the past years, ETAC has launched a very low GWP and R-448A, which has lower GWP than R-449A, is now used for our temperature and humidity chamber. This climate friendly alternation reduces the GWP by 65% compared to R-404A and minimizes the environmental impact.
By 2022, the use of R-404A will be banned gradually in US, and in Europe effective 2020, any units with GWP more than 2500 will be banned. For more details, please contact us.
Features

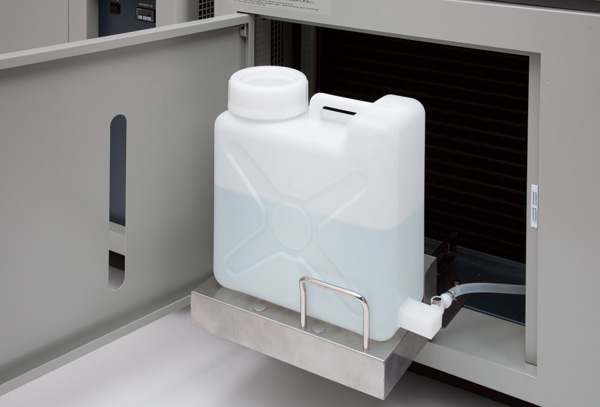

1000 hours continuous operation
The vapor collection system enables a 1000 hours continuous operation at 85 C (185
F)/85%RH without
humidification water supply. Vapor will be collected and reused and the conductivity
will not increase.
*excluding
SXN type

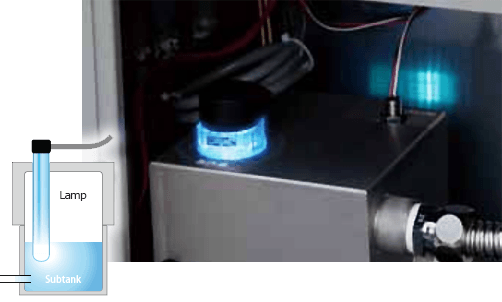

Bacteria Prevention
Most problems/errors of these types of chambers are caused by the water circulation system.
HIFLEX series has the automatic UV sterilization to keep the water clean to prevent the troubles.

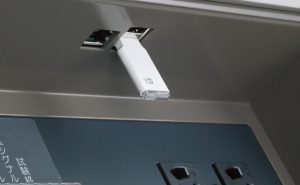

Easy Data Transfer
Test programs can be transferred from your laptop to a chamber via USB.
Direct access to the chamber via your own laptop or tablet is also available as standard model.
