HDST Series

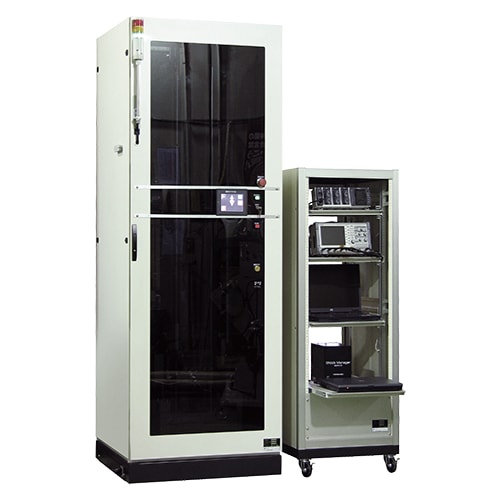

Shock Machine HDST-150

Shock Machine HDST-150

Feature

  • HDST-150 series for a shock testing standard of JEDEC and JEITA
  • A half-sine shock pulse can be generated a required shock duration by replacing a programmer.
  • High rigidity table makes a high reproducibility and high accuracy.
  • Low noise and low vibration by using anti-vibration base and sound insulation rack.
  • Rebound brake mechanism by automatically controlled.
  • High speed test cycle by a unique drop mechanism.
  • Safety accessories are standard equipment.

Application

  • This machine can evaluate and compare with a shock resistance of substrates as JEDEC / JEITA standard. High speed analysis system inputs a electrical resistance (voltage) ocuured on sample substrate fixed on shock table when repeatedly shock are given to it.

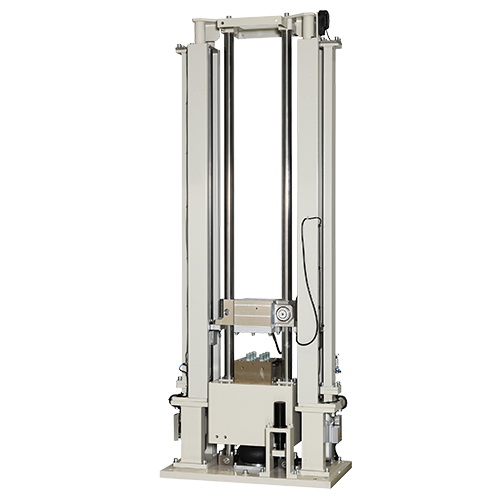

Shock Machine HDST-230

HDST-230

Feature

  • A half-sine shock pulse can be generated to produce a required pulse duration by replacing a programmer.
  • Rebound brake mechanism by automatically controlled.
  • High rigidity table makes high reproducibility
  • Low noise and low vibration by using anti-vibration base and sound insulation rack.

Application

  • Apply high acceleration to computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.

Shock Machine HDST-230HS

HDST-230HS

Feature

  • Maximum acceleration 49000m/s² (0.5ms)
  • High shock pulse can be generated by a low height machine with a pull-down system.
  • Automatic control ensures operability and safety.
  • Vibration insulation seismic base apply machine to various environment.
  • Various analysis are available by combination with shock manager SM-500

Application

  • Shock test for mobile phone, note PC, HDD etc.
  • Shock test for substrates and various mechanical components.
  • Shock test for various electronical parts, etc.

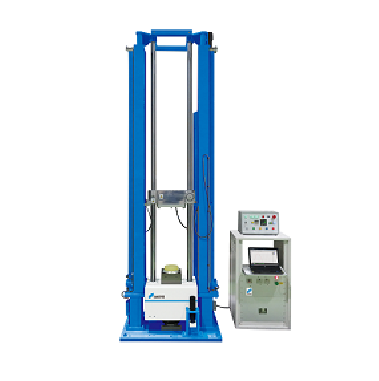

Shock machine HDST-300

HDST-300

Feature

  • A half-sine shock pulse can be generated to produce a required pulse duration by replacing the rubber pad.
  • Rebound brake mechanism by automatically controlled.
  • High rigidity table makes high reproducibility
  • Low noise and low vibration by using anti-vibration base and sound insulation rack.

Application

  • This shock tester applies to a high shock acceleration for computer's parts, digital cameras, smart phones, tablets, mobiles, displays, small household appliances, and mobile products for the Product fragility testing.

Specification

  HDST-150 HDST-230 HDST-230HS HDST-300
Table size Approx. 5.90” x 6.30"
(150 × 160mm) 		Approx. 9.06” x 9.06"
(230 × 230mm)		 Approx. 9.06” x 9.06"
(230 × 230mm)		 Approx. 11.81” x 11.81"
(300 × 300mm)
Specimen max weight Approx. 2.20 lbs (1kg) Approx. 22.05 lbs (10kg) Approx. 11.02 lbs (5kg) Approx. 44.09 lbs (20kg)
Shock pulse Half-sine
Acceleration range 14700m/s² (1500G) 29400m/s² (3000G) 49000m/s² (5000G) 29400m/s² (3000G)
Pulse duration range 0.5 / 1.0ms 0.5 / 1.0 / 2.0ms
Seismic base Pneumatic springs and hydraulic damper device
Brake mechanism Pneumatic-hydraulic friction brake system
Controller Manual & auto cycle control
Size of main unit (W x D x H) Approx. 39.37" x 31.50" x 91.37"
(1000 × 800 × 2330mm)		 Approx. 39.37" x 23.62" x 105.32"
(1000 × 600 × 2675mm) 		Approx. 39.37" x 23.62" x 156.30"
(1000 × 600 × 3970mm)		 Approx. 43.31" x 25.20" x 106.30"
(1100 × 640 × 2700mm)
Weight of main unit Approx. 1322.77lbs (600kg) Approx. 2644.55lbs (1200kg) Approx. 3086.47lbs (1400kg) Approx. 3306.93lbs (1500kg)
Size of control unit (W x D x H) Approx. 23.87" x 15.75" x 2094.39" (530 x 400 x 950mm)
Power supply 200V-10A
  *Available customization.

Options

Shock manager
SM-500		 Input the required shock acceleration, calculation of test conditions, measure shock acceleration and do various analysis of multiple channels.
Safety device Mat switch / photoelectric switch.
