DROP TOWER DT-202 series
Drop Tester for Mobile Products DT-202, 202TB, 202AW
DROP TESTER for Mobile Products such as smart phone, wearable device, tablet, laptop.
DT-202 is a standard model of drop tester that provides accurate drop tests via a unique drop mechanism for smart phones, wearable devices such as fitness tracker or smartwatch, components, medicine, and other mobile products. The specimen holding system retains dropping attitude, enabling it to provide drop tests superior in reproducibility.
DT-202TB is a wider sized drop tester. Its application is not only limited to the testing of mobile phones, but also extends to a broader variety of products such as laptop PC, tablet device, HDD, battery, medical devices, foods, wearable devices such as glasses etc. These testers are CE certified.
Rutgers University professors reviewed DT-202
Features
- Specialized for light and small specimen
- High Reproducibility
- Easy Maintenance for Long Term Usage
- Easy-to-Use Test Settings
- Easy-Installation to any Location
- Simple Setting by Simple Construction
- CE certified model
Simple operation
- It can test a shock resistance of test sample holding in an arbitrary posture and free-falling.
- The drop height can be settled easily by scale.
- Fixing test sample by pneumatic pen cylinder.
Analysis system with high-speed camera
Detail drawing of supporting base

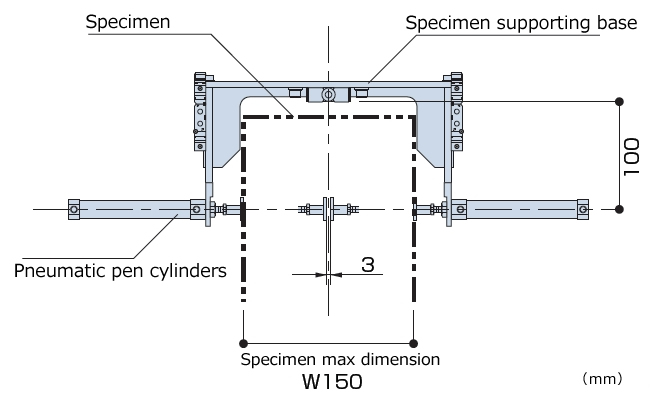

DT-202 Detail drawing of supporting base

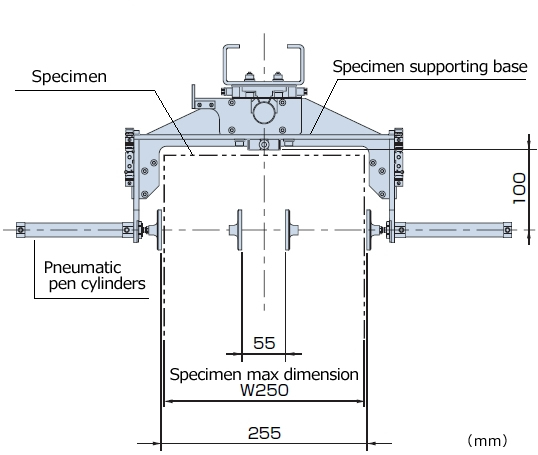

DT-202TB Detail drawing of supporting base

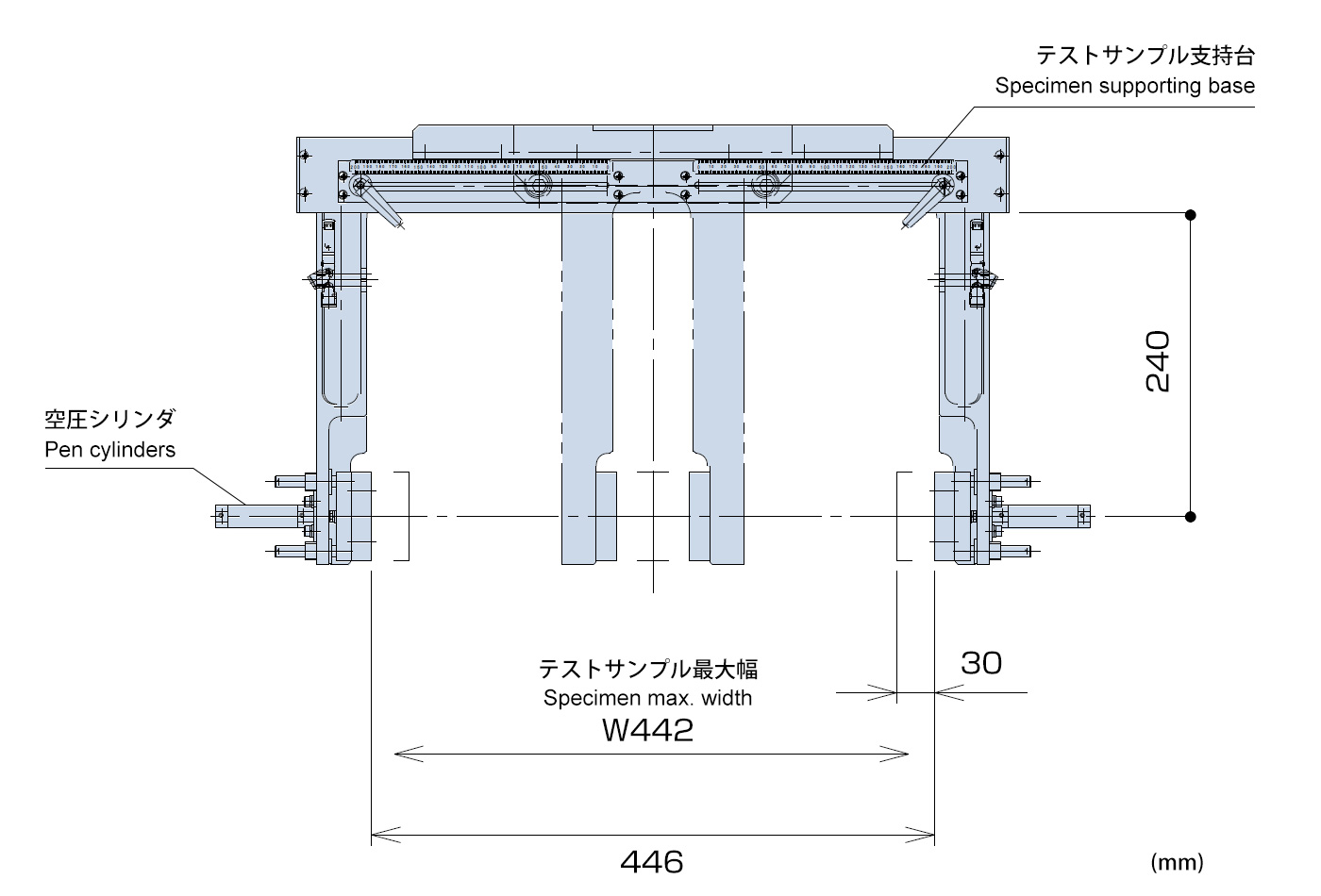

DT-202AW Detail drawing of supporting base
Movie
Applications
- Drop test for digital gadgets such as mobile phones, smart phones, cell phones.
- Drop test for electrical parts, components, semiconductors and sensors.
- Drop test for small batteries and chargers.
- Drop test for wearable devices such as fitness trackers, smart watches, glasses, and jewelry.
- Drop test for tablet, laptop PC
- Drop test for audio devices such as microphones and speakers.
- Drop test for medical products, health care products, and medicine.
- Drop test for skin care products and cosmetics
Specification
| DT-202 | DT-202TB | DT-202AW | |
|---|---|---|---|
| Test sample maximum weight | 4.4 lbs / 2 kg | ||
| Drop height range | 0.82 ft to 6.5 ft / 250mm to 2000mm | ||
| Drop height setting method | By the scale and setting guide | ||
| Drop motion of test sample support table | By the permanent electromagnetic holder | ||
| Fastening and releasing operation of test sample | By the pneumatic pen cylinder | ||
| Arm Width | 0.12 to 5.91 in / 3 to 150mm (Fixed arm) |
2.17 to 10.04 in / 55 to 255mm (Fixed arm) |
0 to 17.56 in / 0 to 446mm (Adjustable arm) |
| Supporting Base Weight | 4.85 lbs / 2.2 kg | 6.17 lbs / 2.8 kg | 15.88 lbs / 7.2 kg |
| Dimension of tester | W1.97 x D1.64 x H7.82 ft / W600 × D500 × H2382mm | W1.97 x D2.02 x H7.82 ft / W600 × D616 × H2382mm | W2.27 x D2.62 x H7.82 ft / W692 × D800 × H2382mm |
| Mass of tester | Approx. 177 lbs / 80 kg | Approx. 220 lbs / 100 kg | |
| Base thickness | 0.63 inch / 16mm | ||
| Feed air pressure | 0.49MPa or higher, 1.2dm³, (when operate 6 times/min) or more | 0.49MPa or higher, 4.3L/min, (when operate 10 times/min) or more | |
| Power supply | AC100 ~ 240V, single phase, 5A | ||
| Operation environment temperature | 41°F～95°F / 5℃ to 35℃ | ||
| Options | Casters, Remote controller, Additional stand for shock absorber | ||
