WE Series

Description
Model number
Catalog

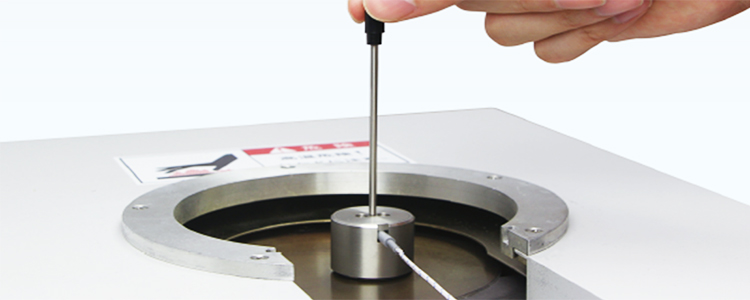

Weighted Surface probe - WE series

The self-weighted feature let your hands free.

Two types available - Grip and non-grip type.

The grip type is good when measuring high temperature as you can avoid contacting with the hot surface when putting the probe on the surface to be measured.

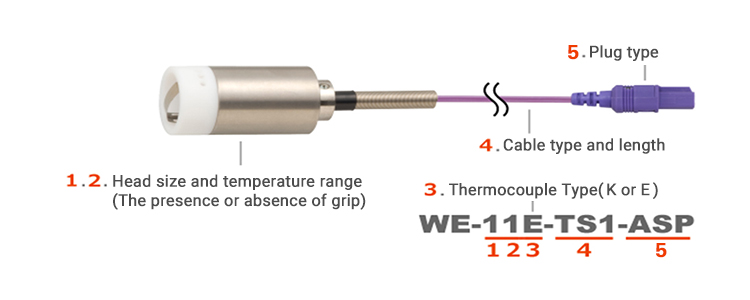

Model number

①Head Size
②Temperature Range
③Thermocouple type
④Cable type and length
⑤Plug type

① Head Size and ② Temperature Range

WE- 123-4-5

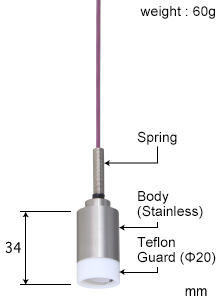

: 11
Head size φ20mm /
-50～250℃

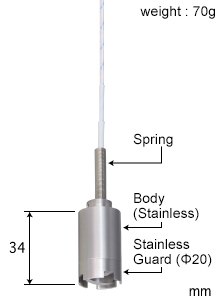

: 12
Head size φ20mm /
-50～500℃

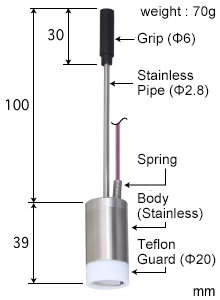

: 13
Head size φ20mm /
-50～250℃

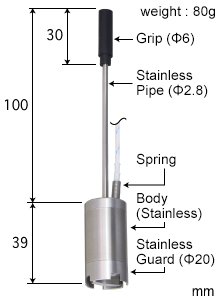

: 14
Head size φ20mm /
-50～500℃

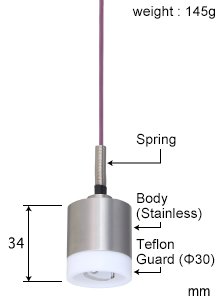

: 21
Head size φ30mm /
-50～250℃

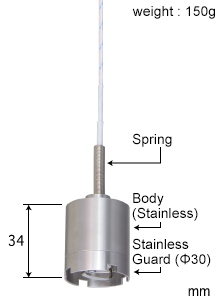

: 22
Head size φ30mm /
-50～500℃

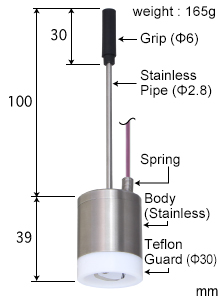

: 23
Head size φ30mm /
-50～250℃

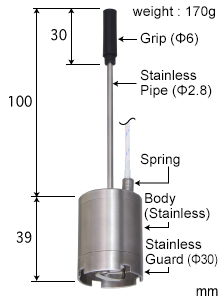

: 24
Head size φ30mm /
-50～500℃

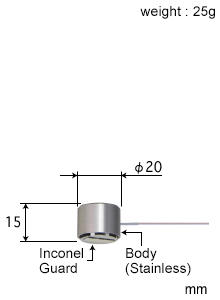

: 31
Head size φ20mm /
-50～200℃

: 33
Head size φ20mm /
-50～200℃

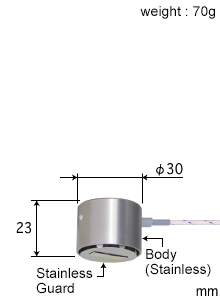

: 42
Head size φ30mm /
-50～500℃

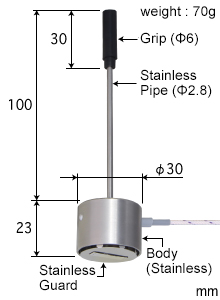

: 44
Head size φ30mm /
-50～500℃

③ Thermocouple Type

WE-12 3-4-5

K or E

*What's the difference between K and E type thermocouples?

④ Cable type and length

WE-123- 4-5

TS1	For WE-11,WE-12 Silicon cable (φ4.0mm, resistance up to 240 C deg)
GW1	For WE-12,WE-22,WE-42 Glass fiber (1.2 x 1.7mm, resistance up to 300 C deg)
TA1	For WE-31 Teflon (φ0.9mm, resistance up to 200 C deg)
